Husqvarna
>
CULTIVATORS/TILLERS
>
TF 230 TF 230
>

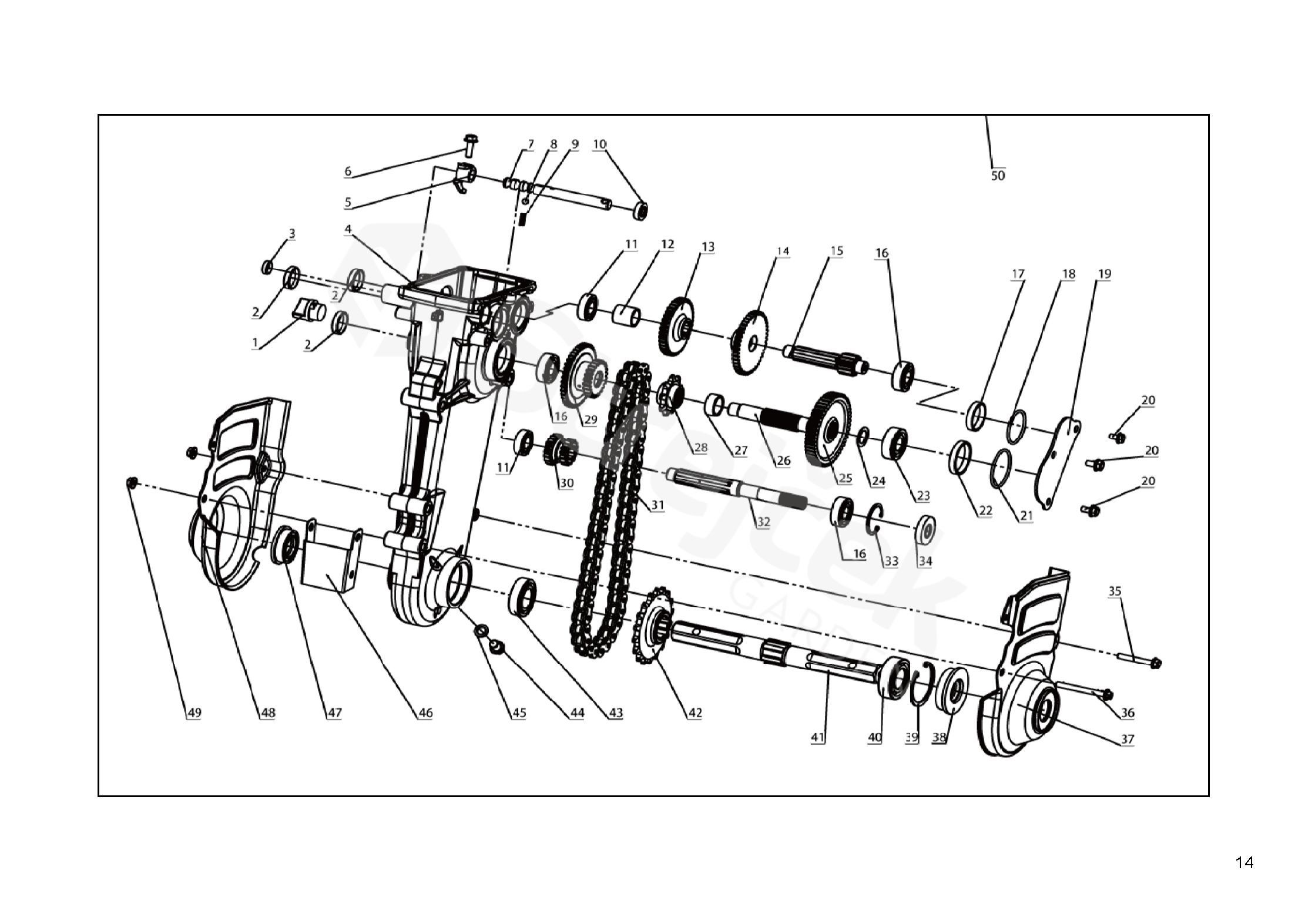

GEAR BOX
Back to
TF 230
TF 230
GEAR BOX
TF 230
TF 230
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TF 230
1
OIL PLUG
587943101
2
OIL PLUG
587943001
3
OIL PLUG
587942901
4
GEARBOX
587979001
5
FORK
587940501
6
BOLT
587979101
7
SHAFT
587979201
8
BALL
587979301
9
SPRING
587945201
10
SEAL
587943301
11
BEARING
587939501
12
BUSH
587939901
13
GEAR
587940001
14
GEAR
587940101
15
SHAFT
587939801
16
BEARING
587940201
17
BUSH
587943601
18
O-RING
587943901
19
STOP
587944301
20
BOLT
587979401
21
O-RING
587944001
22
BUSH
587943701
23
BEARING
587941701
24
PLATE
587941401
25
GEAR
587941301
26
SHAFT
587940701
27
BUSH
587941101
28
SPROCKET
587941001
29
GEAR
587940901
30
GEAR
587939701
31
CHAIN
587979501
32
SHAFT
587939601
33
CIRCLIP
587979601
34
SEAL
587943501
35
BOLT
587979701
36
BOLT
587979801
37
COVER
587979901
38
SEAL
587942501
39
O-RING
587942801
40
BEARING
587942101
41
SHAFT
587980001
42
SPROCKET
587942001
43
BEARING
587941801
44
BOLT
587980101
45
WASHER
587980201
46
COVER
587980301
47
SEAL
587942401
48
COVER
587980401
49
NUT
587980501
50
GEARBOX ASSY
589634601
