Spare parts > Husqvarna > BLOWERS > 125 BX 125 BX, 952715645, 2010-06, EU, AU > HOUSING
Back to

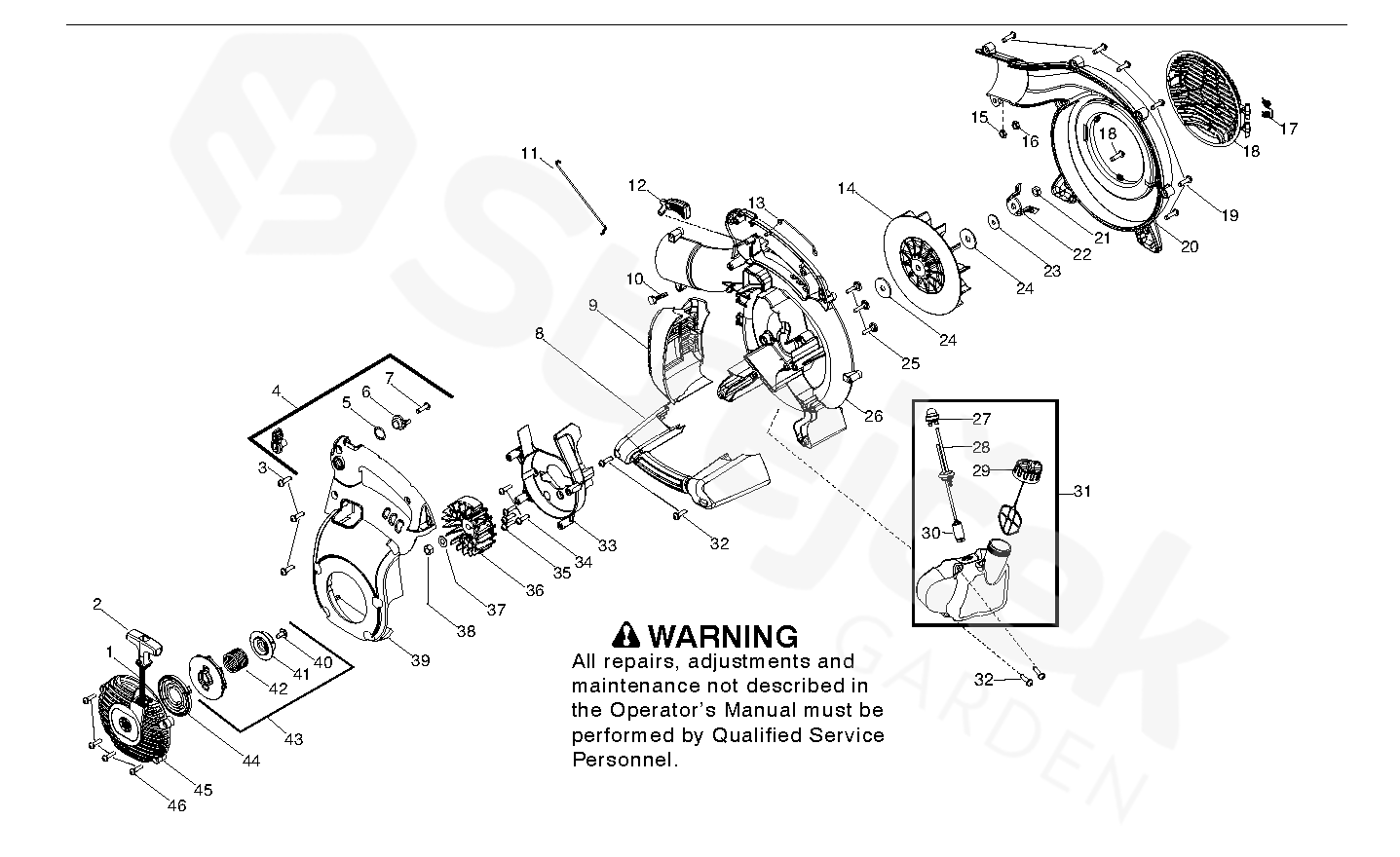

HOUSING
125 BX 125 BX, 952715645, 2010-06, EU, AU
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 125 BX, 952715645, 2010-06, EU, AU
1 KIT 545081817
2 RUKOJEŤ STARTOVÁNÍ Handle - Starter 545043204
3 SCREW 530015814
4 KIT 545081822
5 PODLOŽKA Washer - Wave 530015147
6 RATCHET CRUISE CONTROL 545111501
7 SCREW 530015814
8 HANDLE - ASSIST 545119002
9 ASSY, MUFFLER GUARD 545157901
10 SCREW 545003502
11 LANKO Wire - Linkage 545111301
12 TRIGGER, THROTTLE 545111601
13 LANKO Wire - Handle ground 545131701
14 IMPELLER 545173201
15 MATICE Nut - Blower tube 530015197
16 LOCK NUT 530015515
17 PRUŽINA Spring - Vac door 545111101
18 COVER 545111201
19 SCREW 530015814
20 ASSEMBLY 575533201
21 MATICE Nut - Impeller 545147101
22 MULCHING BLADE
2008-292N AND LOWER, SEE SERVICE REFERENCE 		545202801
23 PODLOŽKA
2008-292N AND LOWER, SEE SERVICE REFERENCE 		530015127
24 PODLOŽKA Washer - Impeller 545164501
25 SCREW FUEL TANK RETAINER 530016445
26 SCROLL 545110001
27 PURGE 530047721
28 KIT 545081841
29 TANK 530150350
30 FILTER 530095646
31 FUEL TANK ASSY 545108901
32 SCREW 530015814
33 SCROLL, FLYWHEEL
2008-233N AND LOWER SEE SERVICE REFERENCE 		545132801
34 SCREW 530015814
35 SCREW 530015810
36 FLYWHEEL ASSY 545088801
37 PODLOŽKA Washer 530015828
38 MATICE 530016134
39 COVER 545108801
40 SCREW 545112801
41 HUB 545089001
42 PRUŽINA Spring - EPS2 545115901
43 KIT 545006084
44 PRUŽINA 530042095
45 HOUSING - STARTER COVER 545111801
46 SCREW 530015810
