Spare parts
>
Husqvarna
>
ZERO TURN: CONSUMER
>
EZ 24T EZ 24T CE, 966659702-00, 2011-10
>
HYDRAULIC PUMP - MOTOR
Back to
EZ 24T
EZ 24T CE, 966659702-00, 2011-10

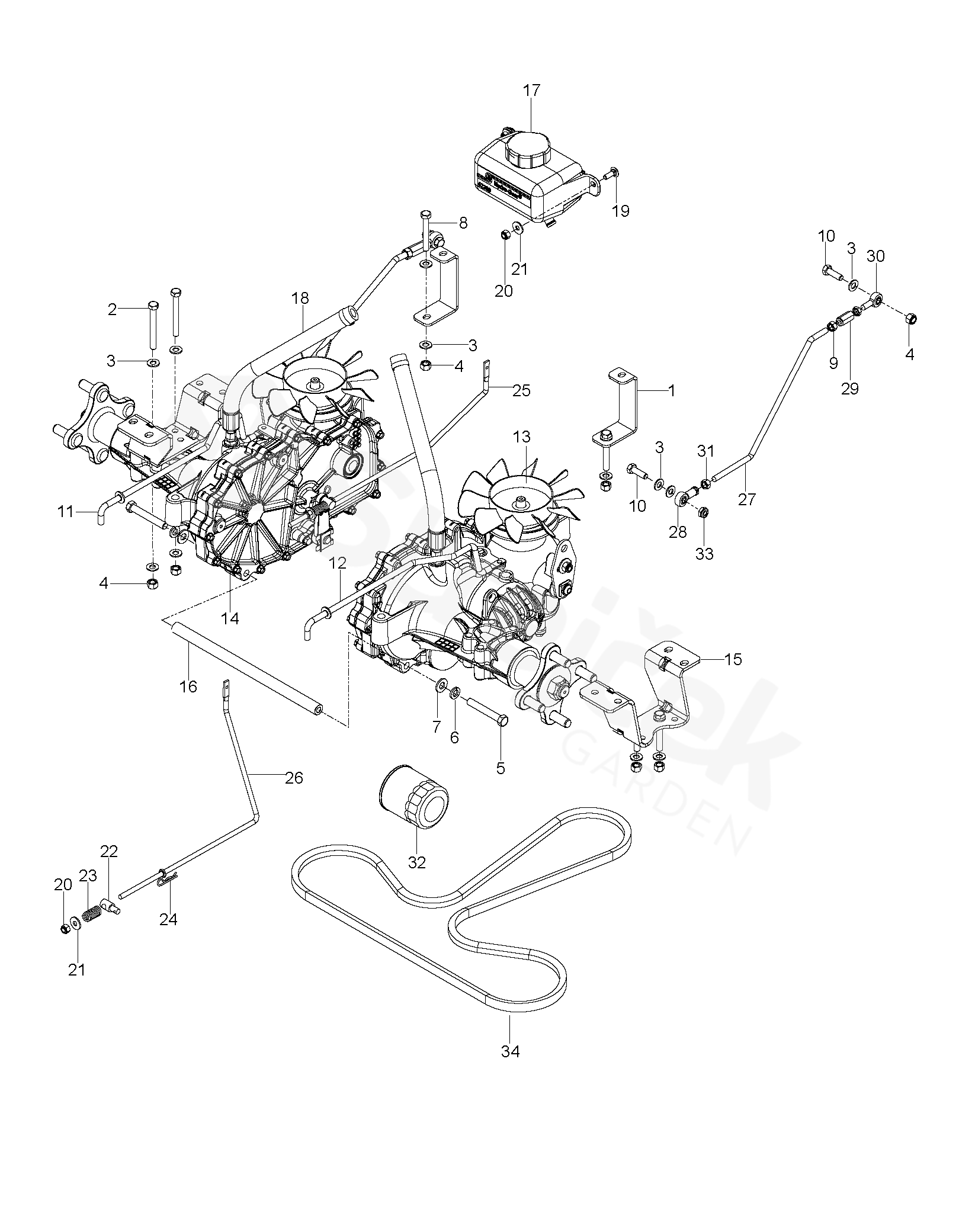

HYDRAULIC PUMP - MOTOR
EZ 24T
EZ 24T CE, 966659702-00, 2011-10
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EZ 24T CE, 966659702-00, 2011-10
1
SUPPORT
522460702
2
SCREW
539101721
3
PODLOŽKA
539990188
4
MATICE
539990717
5
SCREW
539990637
6
PODLOŽKA
539990118
7
WASHER
539990122
8
CAPSCREW 5/16 X 2-1/4 HED HEAD
539976938
9
NUT
539991073
10
SCREW
539990209
11
ROD
RT
522706002
12
ROD
LT
522706001
13
TRANSMISSION
RT
522447402
14
TRANSMISSION
LT
522447401
15
MOUNT
REAR
510185102
16
SPACING TUBE
510184103
17
EXPANSION TANK
539112318
18
HOSE ASSY
522439801
19
SCREW
539990074
20
MATICE
539976978
21
WASHER
539990598
22
BRAKE SWIVEL
539112308
23
SPRING
539101224
24
PIN RETAINING SCREW
539976988
25
ROD LT
LT
510375401
26
ROD RT
RT
510375402
27
ROD
522656101
28
RH ROD END
RH
539115729
29
ROD END COUPLER
539116689
30
ROD END - LH
LH
539116690
31
NUT
539990223
32
OIL FILTER
539113466
33
5/16-18 THIN PROF NY
539115617
34
BELT
539120772
