Flymo
>
BLOWERS
>
XLB250 XLB250, 952715458, 2006-12
>
ENGINE
Back to
XLB250
XLB250, 952715458, 2006-12
ENGINE

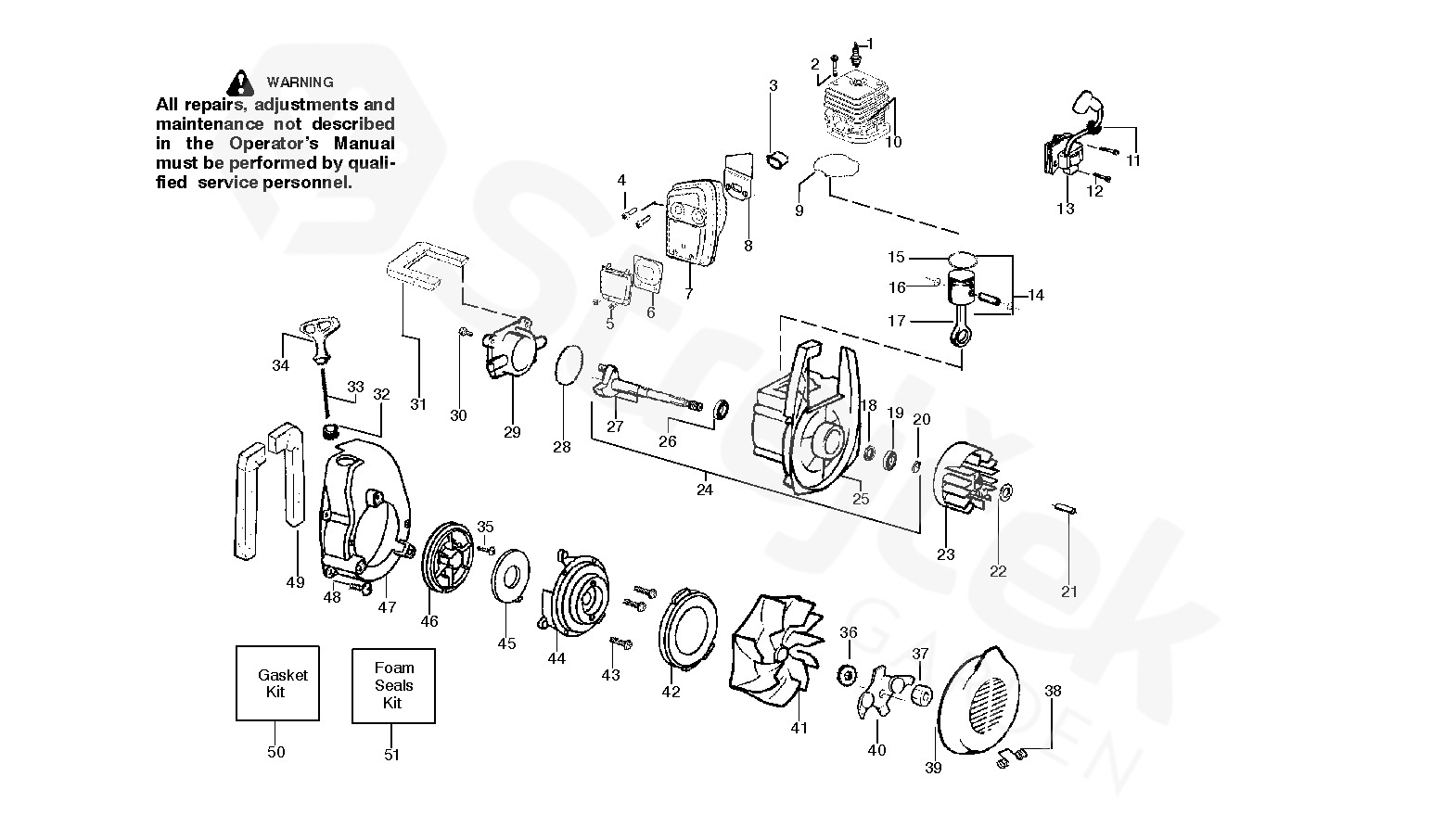

XLB250
XLB250, 952715458, 2006-12
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XLB250, 952715458, 2006-12
1
PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y)
952030249
2
SCREW
530015953
3
INSULATOR
530055191
4
SCREW
530016387
5
SCREW
530015241
6
KIT
530071593
7
KIT
530071834
8
GASKET
530071458
9
GASKET
530071458
10
KIT
530071457
11
PROTECTION
530019182
12
SCREW
530016357
13
MODULE--IGNITION
530035505
14
KIT
530071833
15
PISTON RING
530055120
16
CIRCLIP
530015162
17
CONNECTING ROD
530069945
18
SEAL
530019264
19
BEARING
530055728
20
CLIP
530015941
21
SPACER
530016190
22
WASHER
530015149
23
FLYWHEEL
530039209
24
CRANKCASE ASSY
530071456
25
CRANKCASE ASSY
530012492
26
BEARING
530032125
27
CRANKSHAFT ASSY
530012452
28
GASKET
530071458
29
COVER
545064601
30
SCREW
530015810
31
AIR DAM (KIT)
530071459
32
HOLDER
530029182
33
KIT
530071467
34
HANDLE
530049488
35
SCREW
530016391
36
WASHER
530016402
37
NUT
530626605
38
SPRING
530402043
39
INLET
530049313
40
MULCH BLADE ASSY
530095461
41
FAN WHEEL
530069817
42
SEAL RING
545078801
43
SCREW
530016349
44
HSG PULLEY
545079101
45
RETURN SPRING
530042086
46
KIT--STARTER PULLEY
530071466
47
HSG FAN
545079001
48
SCREW
530015810
49
AIR DAM (KIT)
530071459
50
GASKET
530071458
51
AIR DAM (KIT)
530071459
