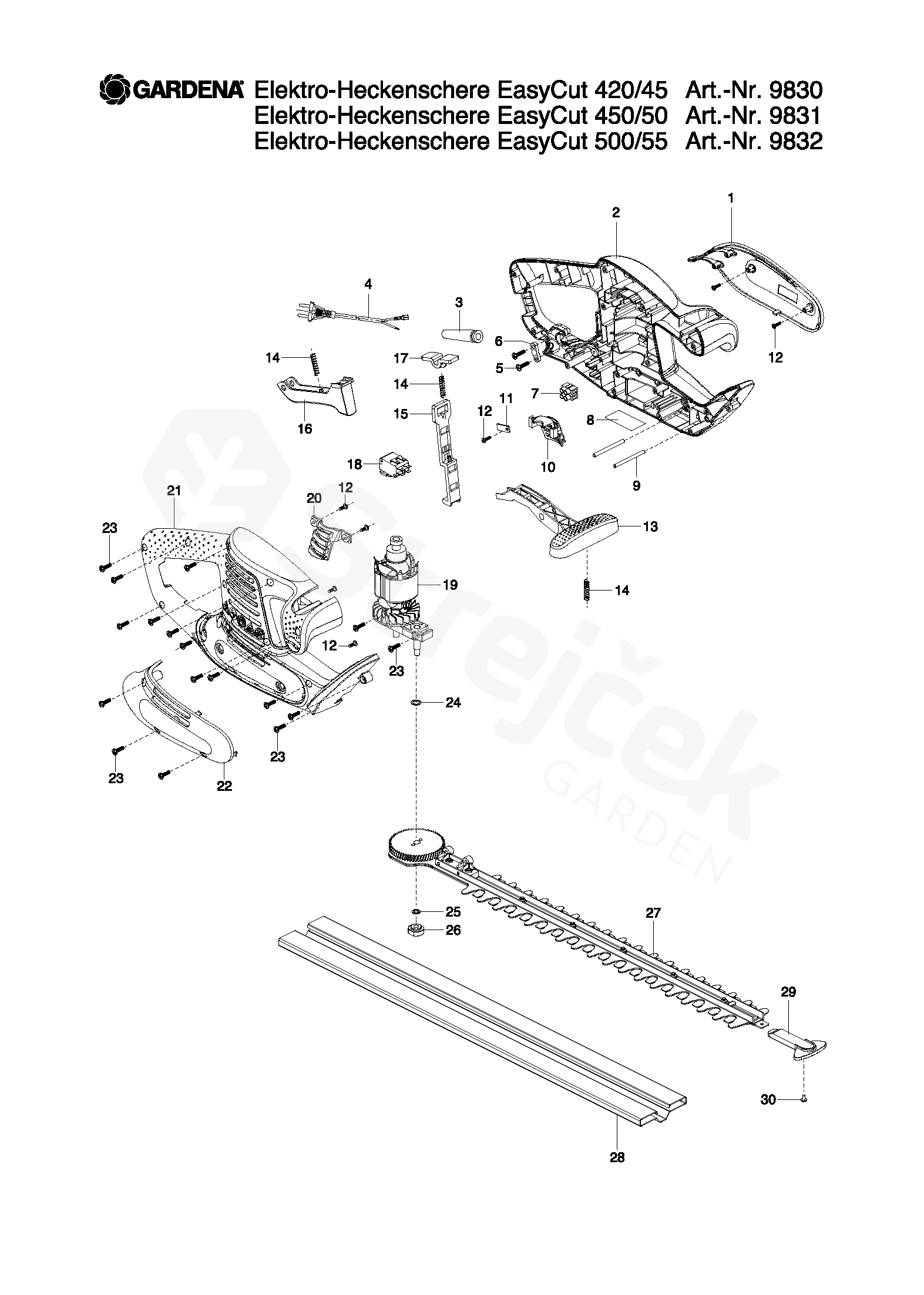

ELECTRIC HEDGE TRIMMER EASYCUT 450/50 ELECTRIC HEDGE TRIMMER EASYCUT 450/50, 9831,

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ELECTRIC HEDGE TRIMMER EASYCUT 450/50, 9831,

4	CABLE 9830-00.600.15 9830-00.600.15	588551001
5	SCREW 9830-00.600.26 9830-00.600.26	588691201
6	CABLE CLAMP 9830-00.600.18 9830-00.600.18	588546501
9	PIN 9830-00.600.13 9830-00.600.13	588644201
13	TRIGGER 9830-00.600.07 9830-00.600.07	588545201
14	SPRING 9830-00.600.23 9830-00.600.23	588546901
15	LEVER 9830-00.600.08 9830-00.600.08	588545501
16	LEVER 9830-00.600.10 9830-00.600.10	588545401
17	ROCKER LEVER 9830-00.600.11 9830-00.600.11	588545601
18	SWITCH 9830-00.600.20 9830-00.600.20	588546401
19	MOTOR ASSY 9830-00.620.00 9830-00.620.00	588547201
23	SCREW 9830-00.600.28 9830-00.600.28	588691401
24	WASHER 9830-00.600.25 9830-00.600.25	588546101
25	WASHER 9830-00.600.24 9830-00.600.24	588546001
26	THREAD INSERT 9830-00.600.22 9830-00.600.22	588546201
28	BLADE 9831-00.600.03 9831-00.600.03	579853601
29	BLADE 9830-00.615.05 9830-00.615.05	588544701
30	SCREW 9830-00.615.13 9830-00.615.13	501857801
27,28,29,30	CUTTING SYSTEM 9831-00.610.00 9831-00.610.00	588729701
