Spare parts > Jonsered > FRONTRIDERS > FR2216 A2 FR2216 A2, 966862901, 2009-02 > 103CM CUTTING DECK
Back to

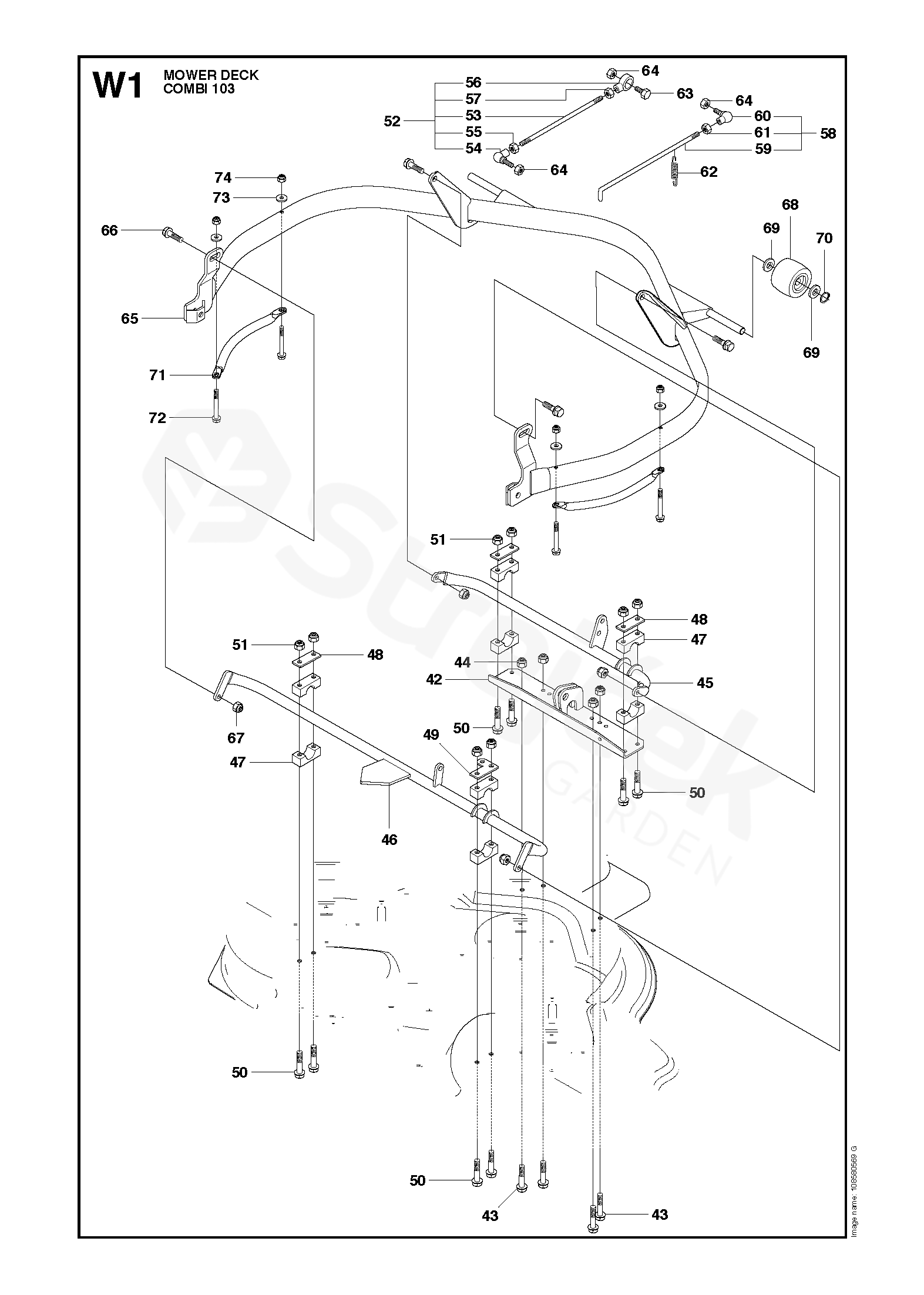

103CM CUTTING DECK
FR2216 A2 FR2216 A2, 966862901, 2009-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2216 A2, 966862901, 2009-02
1 CUTTING DECK 544112904
2 CUTTING DECK 544112802
3 BLIND RIVET NUT 506916201
4 PLUG 544449201
5 SCREW EHHFM 506570104
6 BLADE HOUSING ASSY 544065901
7 SHAFT 544067902
8 BALL BEARING 738230434
9 SPACING SLEEVE 544068001
10 BEARING HOUSING 544067801
11 BLADE HOUSING ASSY 544065902
12 SHAFT 544067901
13 BALL BEARING 738230434
14 SPACING SLEEVE 544068001
15 BEARING HOUSING 544067801
16 SCREW RSQM 535423801
17 PODLOŽKA 734116401
18 LOCK NUT 732211801
19 PULLEY 506922101
20 PARALELNÍ KLÍN 506533501
21 SPACING SLEEVE 544068002
22 PULLEY 506778601
23 PODLOŽKA 734117441
24 SCREW EHHM 544114101
25 ADAPTER 535504202
26 BLADE 504188201
27 KNIFE PLATE 506792301
28 SCREW EHHM 544114101
29 BELT TENSIONER ASSY 506540701
30 ARM New 50 mm 506519501
31 PULLEY 506532701
32 PODLOŽKA 734116441
33 SCREW EHHFT 506558302
34 PODLOŽKA 506918702
35 SCREW EHHM 725245171
36 LOCK NUT 732211801
37 PRUŽINA 506533101
38 BELT 506768501
39 BELT COVER 544096102
40 SCREW 506982601
41 WASHER 506559701
42 BRACKET 535423002
43 SCREW EHHM 725245171
44 LOCK NUT 732211801
45 FRÄMRE TVÄRRÖR KPL. 535468802
46 REAR CROSS TUBES ASS 535468702
47 BEARING 506869601
48 REINFORCING PLATE 506813801
49 SERVICEBRICKA 506979101
50 SCREW EHHM 725246151
51 LOCK NUT 732211801
52 PARALLEL ROD ASSY 506933904
53 ROD 506814906
54 VINKELLÄNK DIN 71802 506789901
55 MATICE 506897601
56 ROD END 506951701
57 HEXAGON NUT 731232051
58 CLUTCH ROD ASSY 506941206
59 CONNECTION ROD 506941306
60 VINKELLÄNK DIN 71802 506789901
61 MATICE 506897601
62 DRAW SPRING 506535603
63 SCREW EHHM 725249571
64 MATICE 732212051
65 PROTECTIVE TUBING 535463602
66 SCREW EHHFM 506597401
67 LOCK NUT 732211801
68 KOLO KOMPL. 506963001
69 WASHER 535464101
70 CIRCLIP 735311700
71 SIDE RAIL 535476301
72 SCREW RSQM 727638301
73 SPRING 734115601
74 LOCK NUT 732211601
75 LABEL 506789701
