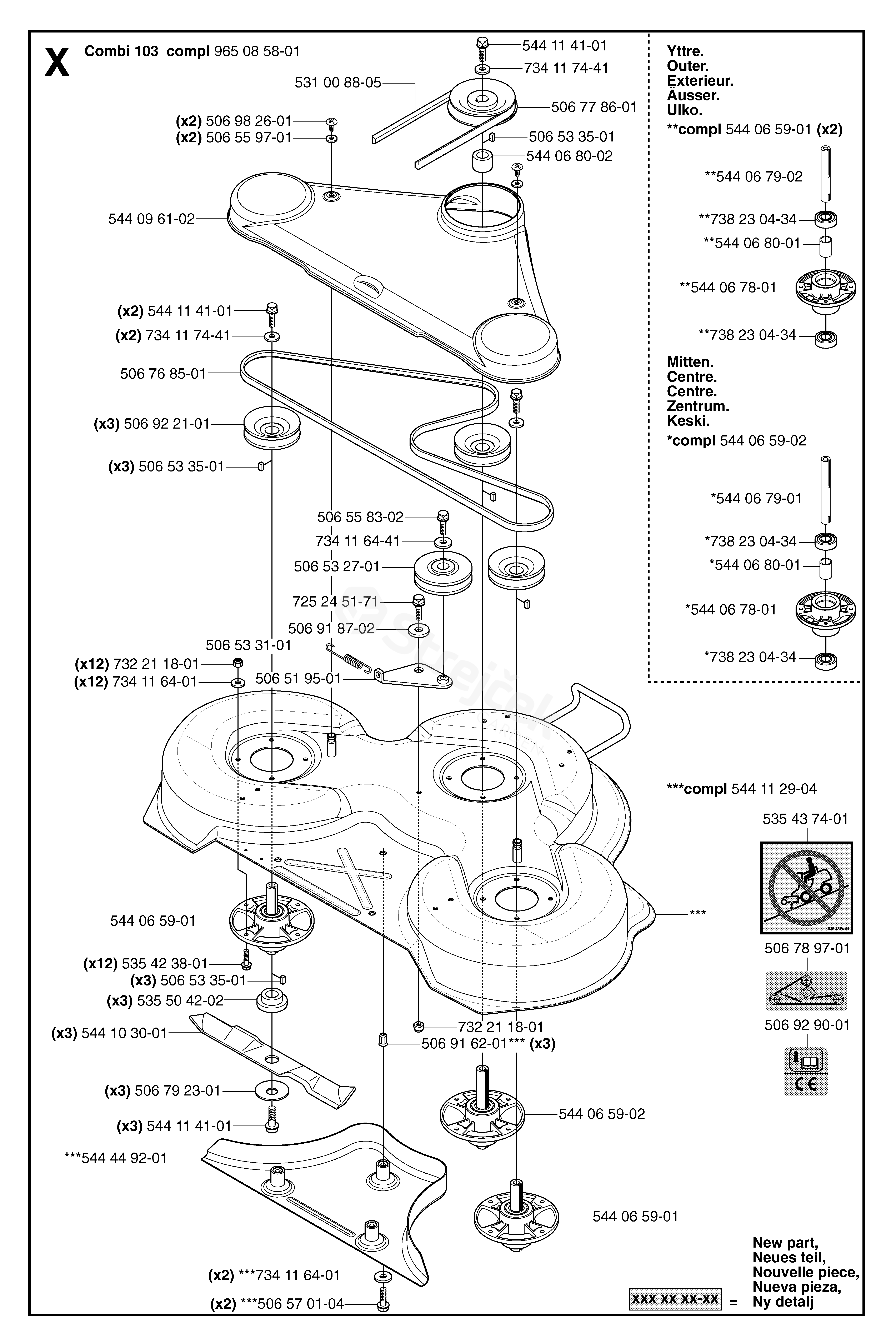

FR2116 MA 4x4 FR2116 MA 4x4, 965094901, 2007-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FR2116 MA 4x4, 965094901, 2007-01

506519501	ARM New 50 mm	506519501
506532701	PULLEY	506532701
506533101	PRUŽINA	506533101
506533501	PARALELNÍ KLÍN	506533501
506558302	SCREW EHHFT	506558302
506559701	WASHER	506559701
506570104	SCREW EHHFM	506570104
506768501	BELT	506768501
506778601	PULLEY	506778601
506789701	LABEL	506789701
506792301	KNIFE PLATE	506792301
506916201	BLIND RIVET NUT	506916201
506918702	PODLOŽKA	506918702
506922101	PULLEY	506922101
506929001	LABEL	506929001
506982601	SCREW	506982601
531008805	BELT	531008805
535423801	SCREW RSQM	535423801
535437401	LABEL WARNING	535437401
535504202	ADAPTER	535504202
544065901	BLADE HOUSING ASSY	544065901
544065902	BLADE HOUSING ASSY	544065902
544067801	BEARING HOUSING	544067801
544067901	SHAFT	544067901
544067902	SHAFT	544067902
544068001	SPACING SLEEVE	544068001
544068002	SPACING SLEEVE	544068002
544096102	BELT COVER	544096102
544103001	BLADE	544103001
544114101	SCREW EHHM	544114101
544449201	PLUG	544449201
725245171	SCREW EHHM	725245171
732211801	LOCK NUT	732211801
734116401	PODLOŽKA	734116401
734116441	PODLOŽKA	734116441
734117441	PODLOŽKA	734117441
738230434	BALL BEARING	738230434
965085801	EDGER	965085801
