FR2218 FA FR2218 FA, 967179201, 2013
>
103CM CUTTING DECK
Back to
FR2218 FA
FR2218 FA, 967179201, 2013

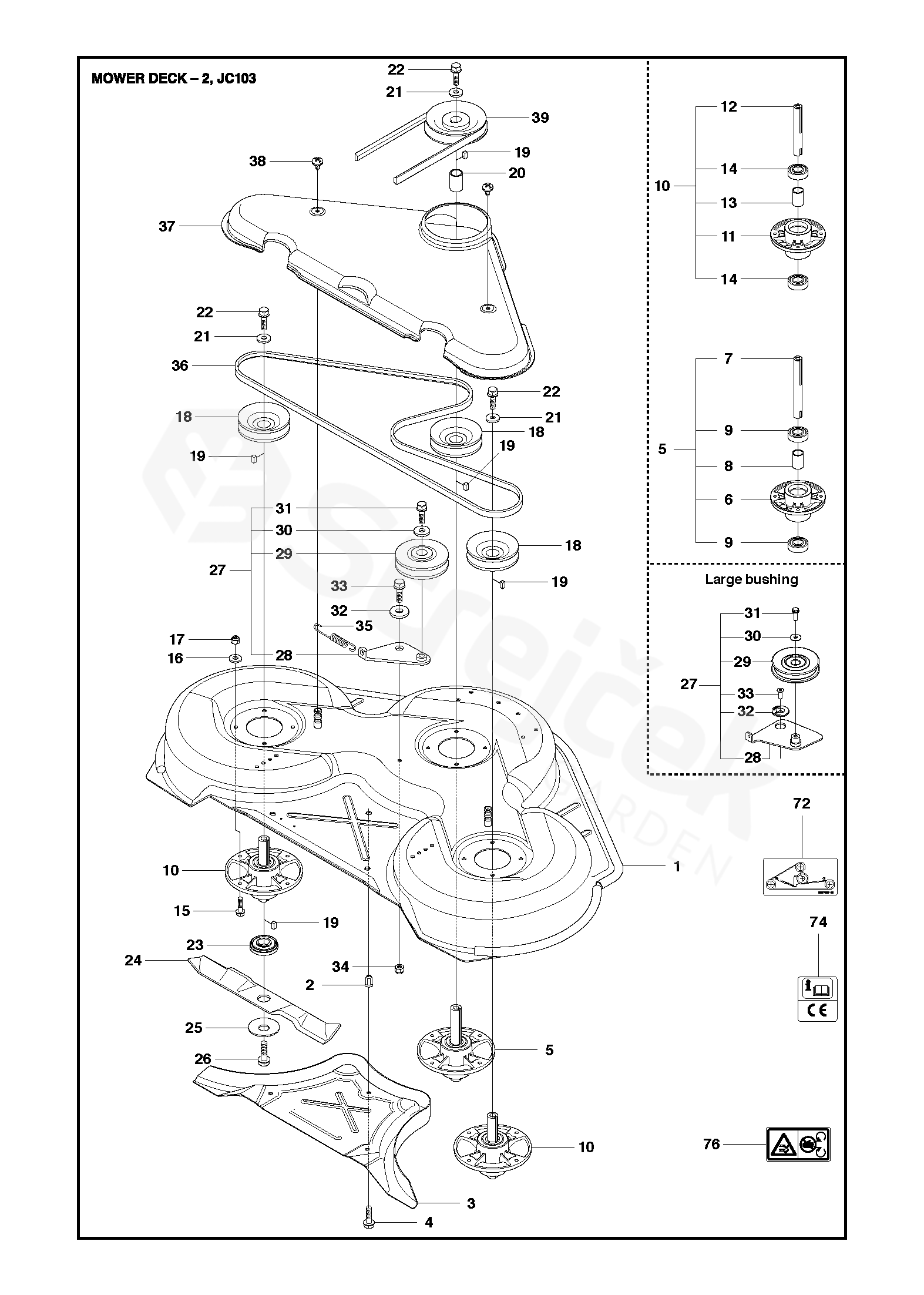

103CM CUTTING DECK
FR2218 FA
FR2218 FA, 967179201, 2013
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
FR2218 FA, 967179201, 2013
1
CUTTING DECK
574210802
2
BLIND RIVET NUT
506916201
3
PLUG
544449201
4
SCREW EHHFM
506570104
5
BLADE HOUSING ASSY
576384101
6
BEARING HOUSING
576384201
7
SHAFT
576384301
8
SPACING SLEEVE
576384401
9
BALL BEARING
738230434
10
BLADE HOUSING ASSY
576384102
11
BEARING HOUSING
576384201
12
SHAFT
576384302
13
SPACING SLEEVE
576384401
14
BALL BEARING
738230434
15
SCREW RSQM
535423801
16
PODLOŽKA
734116401
17
LOCK NUT
732211801
18
PULLEY
506922101
19
PARALELNÍ KLÍN
506533501
20
SPACING SLEEVE
544068002
21
PODLOŽKA
734117441
22
SCREW EHHM
544114101
23
ADAPTER
535504202
24
BLADE
504188201
25
KNIFE PLATE
506792301
26
SCREW EHHM
544114101
27
BELT TENSIONER ASSY
506540701
28
ARM New 50 mm
506519501
29
PULLEY
506532701
30
PODLOŽKA
734116441
31
SCREW EHHFT
506558302
32
PODLOŽKA
506918702
33
SCREW EHHM
725245171
34
LOCK NUT
732211801
35
PRUŽINA
506533101
36
BELT
506768501
37
BELT COVER
544096102
38
SCREW
544400501
39
PULLEY
506778601
72
LABEL
506789701
74
LABEL
506929001
76
DECAL
574510001
