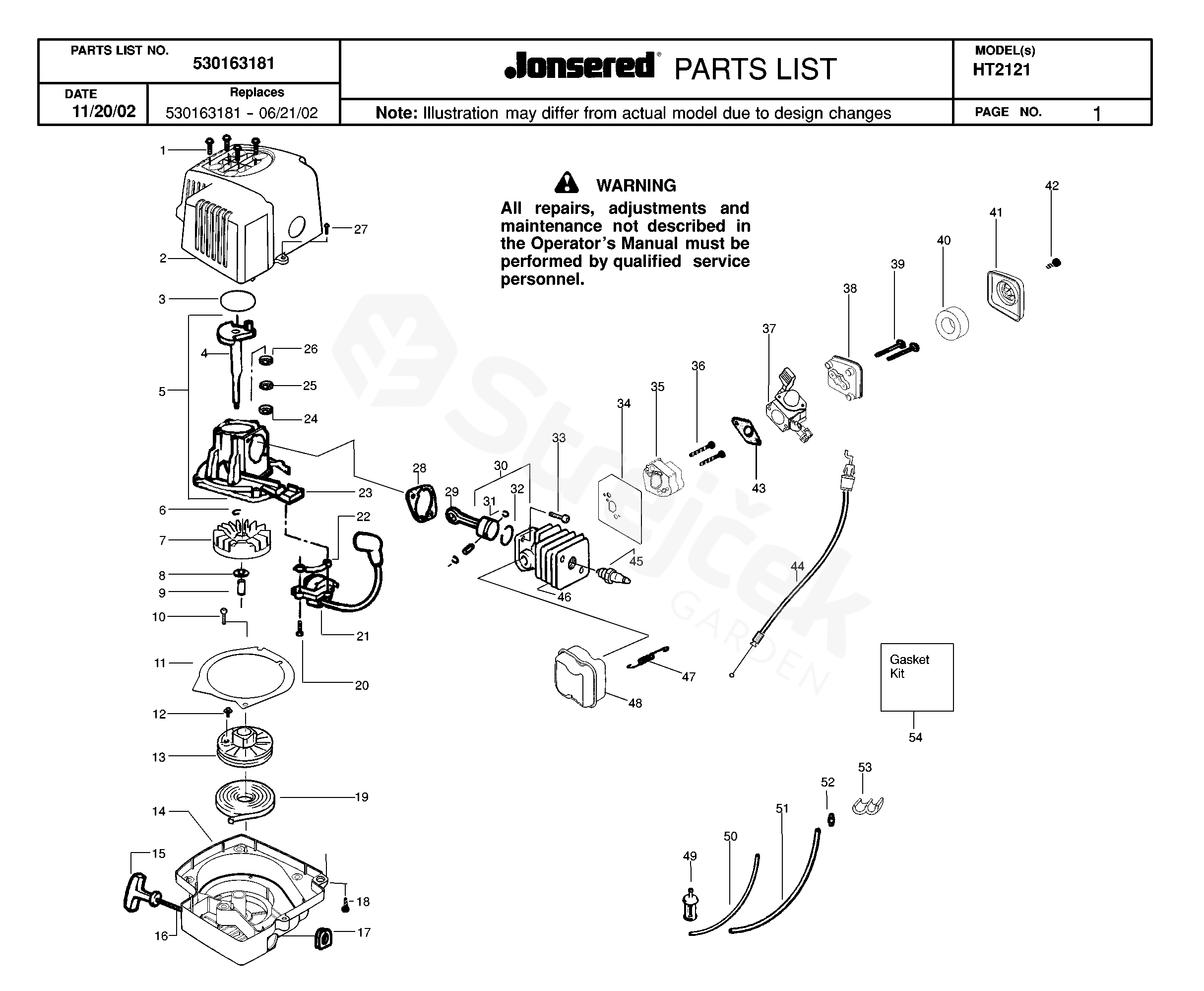

Spare parts - Partlist - HT2121 HT2121, 2003-01 - ENGINE

Everything for your machines

HT2121 HT2121, 2003-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HT2121, 2003-01

1	SCREW	530016386
2	COVER	530056620
3	GASKET	530071486
4	CRANKSHAFT	530028802
5	CRANKCASE	530071485
6	CLIP	530015941
7	FLYWHEEL	530071487
8	PODLOŽKA Washer	530015828
9	SPACER	530055729
10	SCREW	530015496
11	PLATE	530055681
12	SCREW	530015882
13	STARTER PULLEY	530069353
14	CRANKCASE	530056271
15	STARTER HANDLE	530027569
16	STARTER ROPE	530069232
17	PROTECTION	530019182
18	SCREW	530016386
19	RETURN SPRING	530042085
20	SCREW	530015954
21	IGNITION MODULE	530054137
22	HOLDER	530036145
23	CRANKCASE	530012491
24	BEARING	530055728
25	SEAL	530019264
26	BEARING	530032125
27	SCREW	530015934
28	GASKET	530071486
29	CONNECTING ROD	530069945
30	KIT PISTON	530071357
31	CIRCLIP	530015162
32	PISTON RING	530055120
33	SCREW	530015953
34	GASKET	530071486
35	SPACER	530056403
36	SCREW	530016014
38	SHELL	530055680
39	SCREW	530016353
40	AIR FILTER	530047932
41	COVER	530055679
42	SCREW	530015957
43	GASKET	530071486
44	THROTTLE WIRE	530055547
45	PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y)	952030249
46	KIT -- CYLINDER	530071359
47	SPRING	530042088
48	MUFFLER	530071574
49	FILTER	530095992
50	HOSE	530069247
51	KIT	530069216
52	NIPPLE	530023877
53	CLIP	530016103
54	GASKET	530071486
530056873	DECAL	530056873
530071601	CARBURETTOR	530071601
530071633	CARBURETTOR NEW PART NUMBER FOR THIS IPL	530071633
530163362	OPERATORS MANUAL NEW PART NUMBER FOR THIS IPL NEW PART NUMBER FOR THIS IPL	530163362
