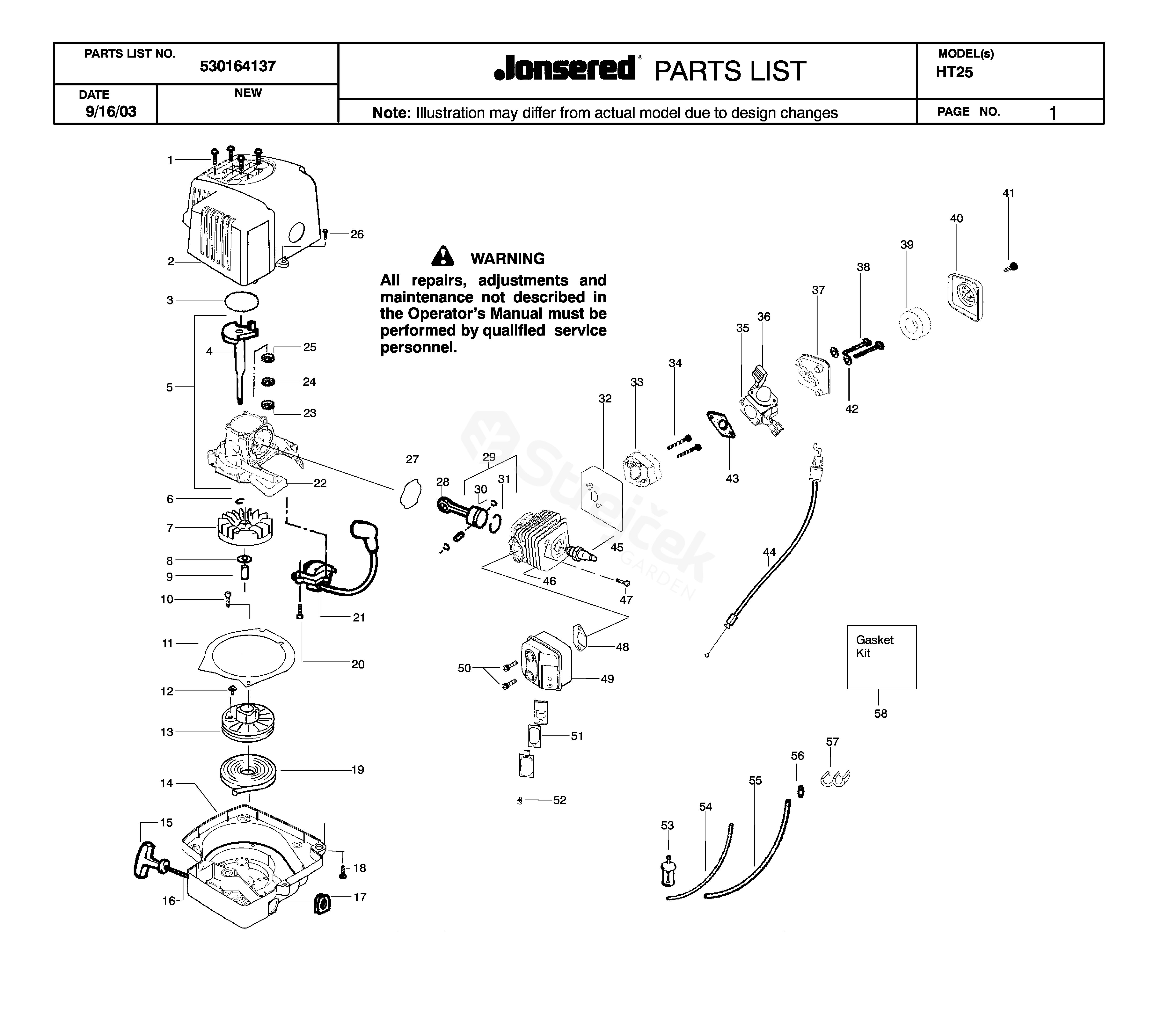

HT25 HT25, 2004-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For HT25, 2004-01

1	SCREW	530016386
2	COVER	530056620
3	GASKET	530071486
4	CRANKSHAFT	530028802
5	CRANKCASE	530071681
6	CLIP	530015941
7	FLYWHEEL	530071487
8	PODLOŽKA Washer	530015828
9	SPACER	530055729
10	SCREW	530015496
11	PLATE	530055681
12	SCREW	530016392
13	STARTER PULLEY	530069353
14	CRANKCASE	530056271
15	STARTER HANDLE	530027569
16	STARTER ROPE	530069232
17	PROTECTION	530019182
18	SCREW	530016386
19	RETURN SPRING	530042085
20	SCREW	530016357
21	IGNITION MODULE	530054137
22	CRANKCASE	530012510
23	BEARING	530055728
24	SEAL	530019264
25	BEARING	530032125
26	SCREW	530015882
27	GASKET	530071486
28	CONNECTING ROD	530069945
29	KIT PISTON	530071357
30	CIRCLIP	530015162
31	PISTON RING	530055120
32	GASKET	530071486
33	ADAPTER	530057634
34	SCREW	530016309
35	CARBURETTOR	530071776
36	LEVER	530059280
37	SHELL	530055680
38	SCREW	530016429
39	AIR FILTER	530047932
40	COVER	530055679
41	SCREW	530015957
42	WASHER	530015158
43	GASKET	530071486
44	THROTTLE WIRE	530058756
45	PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y)	952030249
46	CYLINDER	530012500
47	SCREW	530015953
48	GASKET	530071486
49	MUFFLER	530071805
50	BOLT	530016338
51	PARTITION	530071544
52	SCREW	530015241
53	FILTER	530095647
54	HOSE	530069247
55	KIT	530069216
56	NIPPLE	530023877
57	CLIP	530016103
58	GASKET	530071486
530164124	OPERATOR'S MANUAL	530164124
530164125	OPERATOR'S MANUAL	530164125
