Spare parts > Jonsered > CHAIN SAWS > CS2188 CS2188, EPA, 2009-05 > CLUTCH & OIL PUMP
Back to

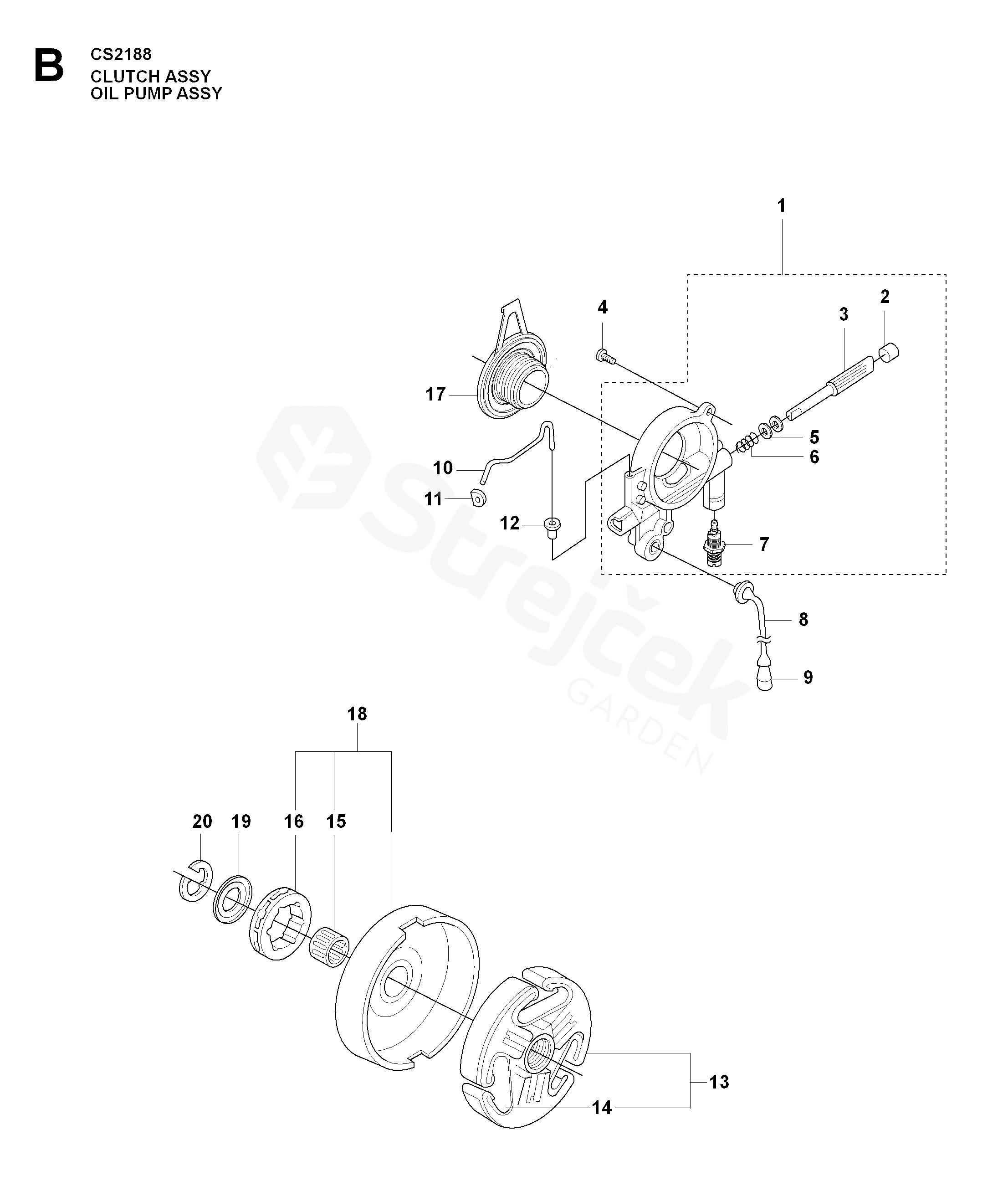

CLUTCH & OIL PUMP
CS2188 CS2188, EPA, 2009-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2188, EPA, 2009-05
1 OIL PUMP ASSY 503521305
2 SEALING PLUG 503624901
3 PUMP PISTON 537106401
4 SCREW IHSCM 725532956
5 PODLOŽKA 503230004
6 PRUŽINA 501615801
7 INSERT 537396001
8 OIL HOSE 503426701
9 OIL SCREEN 501544102
10 OIL PIPE 503774301
11 INLET PIPE 503644701
12 SEALING 504300026
13 CLUTCH ASSY 503975001
14 CLUTCH SPRING 503975101
15 DRŽÁK JEHLY 503432001
16 RÁFEK 501598002
17 PUMP PINION 537207806
18 CLUTCH DRUM ASSY 537137971
19 PODLOŽKA 503752401
20 E-CLIP 503272101
