Jonsered
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
LM 2247 CDP LM 2247 CDP, 967345701,
>

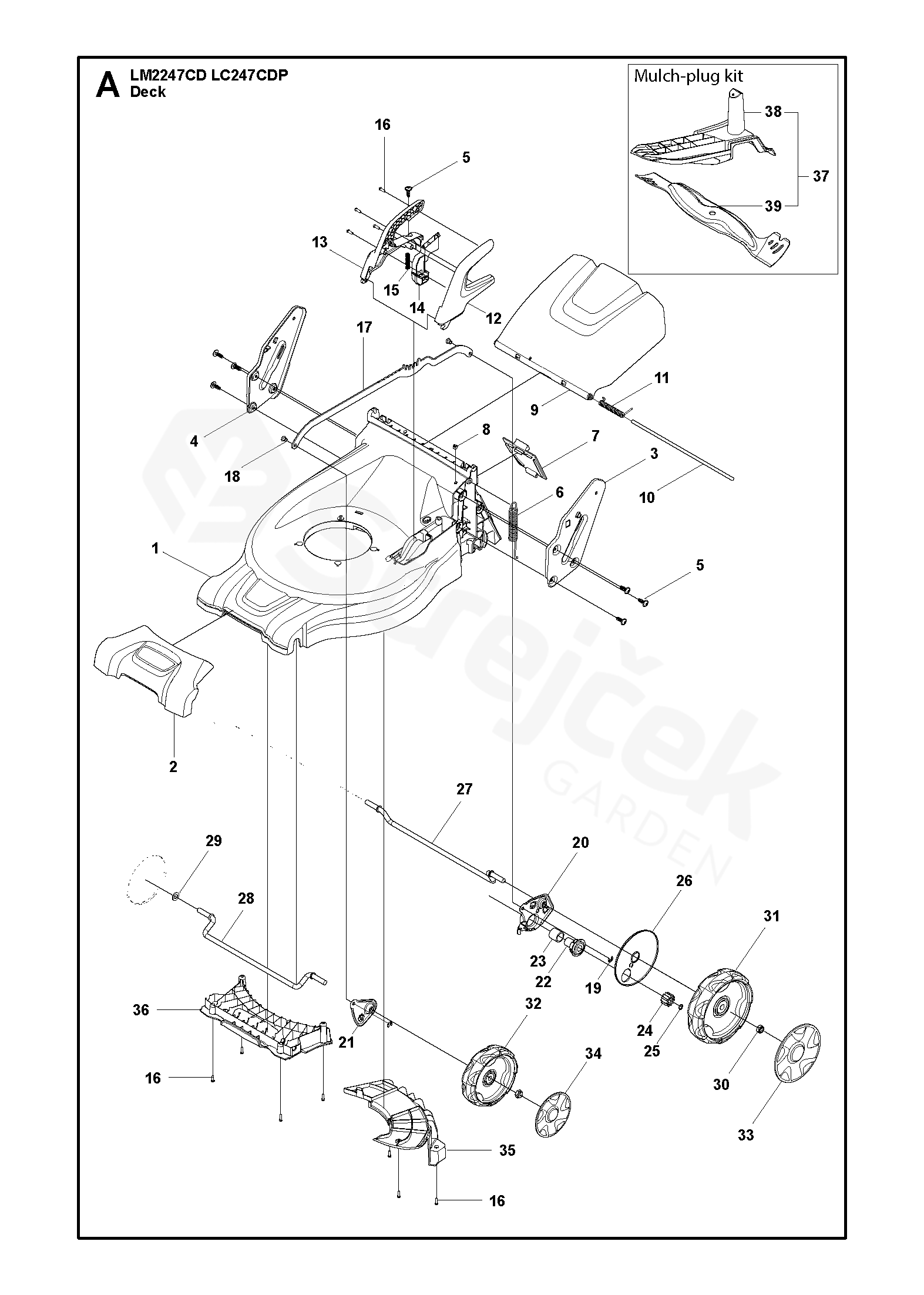

MOWER DECK / CUTTING DECK
Back to
LM 2247 CDP
LM 2247 CDP, 967345701,
MOWER DECK / CUTTING DECK
LM 2247 CDP
LM 2247 CDP, 967345701,
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LM 2247 CDP, 967345701,
1
CHASSIS
587151002
2
FRONT COVER
587698301
3
HANDLE SUPPORT
587212103
4
HANDLE SUPPORT
587212303
5
SCREW ITXPANT
578175802
6
SPRING
587674401
7
COVER
587095401
8
PÁSEK
579317401
9
HATCH
587101402
10
AXLE
586984601
11
SPRING
587101501
12
COVER HALF
587203702
13
COVER HALF
587203802
14
BUTTON
587697402
15
SPRING
587674501
16
SCREW ITXPANT
502435301
17
ROD
587160801
18
SHAFT
587687001
19
E-CLIP
735311220
20
LINK ARM
587072501
21
LINK ARM
587072401
22
BUSHING
501861001
23
TUBE
579682801
24
PASTOREK
544342301
25
CIRCLIP
735311401
26
DUST COVER
587204001
27
WHEEL AXLE
587072601
28
WHEEL AXLE
587072602
29
PODLOŽKA
577092801
30
NUT
587990901
31
WHEEL ASSY
584142202
32
WHEEL ASSY
587631502
33
HUB CAP
587632801
34
HUB CAP
587632901
35
BELT COVER
587199901
36
SKID PLATE
588202702
37
MULCH KIT
589214801
38
MULCH PLUG
587702701
39
MOWER BLADE
588275701
