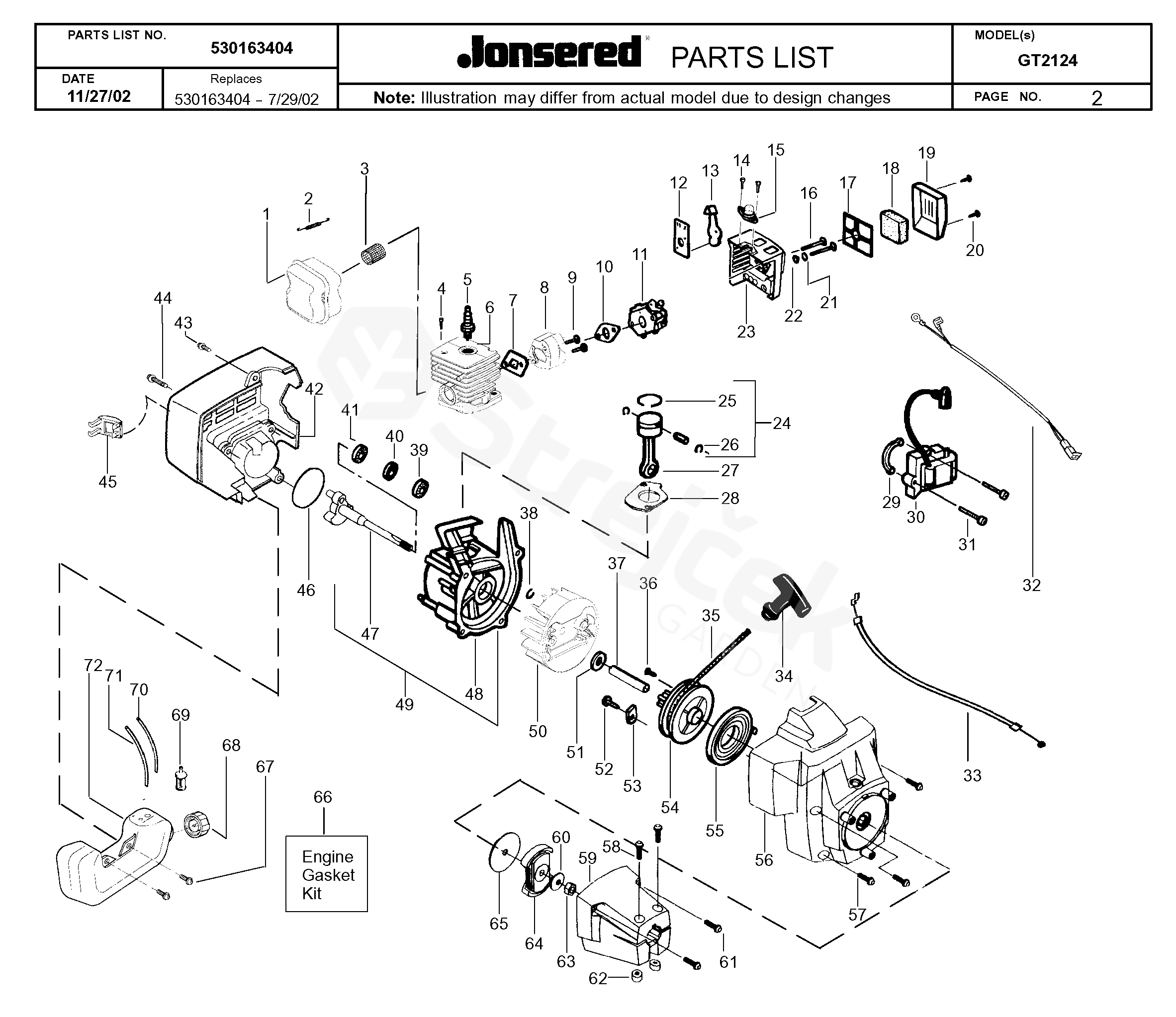

Spare parts - Partlist - GT2124 GT2124, 2003-01 - ENGINE

Everything for your machines

GT2124 GT2124, 2003-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For GT2124, 2003-01

1	MUFFLER	530071396
2	SPRING	530042088
3	SCREEN	530071391
4	SCREW	530015953
5	PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y)	952030249
6	CYLINDER	530071545
7	GASKET	530071363
8	ADAPTER	530056404
9	SCREW	530016014
10	GASKET	530071363
12	PLATE	530037326
13	CHOKE FLAP	530038102
14	SCREW	530015780
15	PRIMER	530038874
16	SCREW	530016353
17	FILTER	530037413
18	AIR FILTER	530037331
19	COVER	530037292
20	SCREW NEW PART NUMBER FOR THIS IPL	530016349
21	SPACER	530015852
22	SPRING	530015254
23	SHELL	530054554
24	KIT PISTON	530071357
25	PISTON RING	530055120
26	CIRCLIP	530015162
27	CONNECTING ROD	530069945
28	GASKET	530071363
29	HOLDER	530036145
30	IGNITION MODULE	530039163
31	SCREW	530015954
32	CABLE	530047278
33	THROTTLE WIRE	530056241
34	STARTER HANDLE	530027569
35	STARTER ROPE	530069232
36	SCREW	530016080
37	SPACER	530037414
38	CLIP	530015941
39	BEARING	530055728
40	SEALING	530071615
41	BEARING	530032125
42	HOUSING	530057023
43	SCREW	530015934
44	SCREW	530015810
45	PROTECTION	530054536
46	GASKET	530071363
47	CRANKSHAFT	530014864
48	CRANKCASE	530012491
49	CRANKCASE	530071610
50	FLYWHEEL	530069886
51	WASHER	530015149
52	SCREW	530015775
53	RETAINER	530027523
54	STARTER PULLEY	530069400
55	RETURN SPRING	530042085
56	HOUSING	530047493
57	SCREW	530015810
58	SCREW	530015767
59	CLUTCH COVER	530047073
60	PODLOŽKA Washer	530015828
61	SCREW	530015886
62	NUT	530015768
63	NUT	530626605
64	CLUTCH	530069491
65	PODLOŽKA	530015611
66	GASKET	530071363
67	RETAINER	530016379
68	TANK	530014347
69	FILTER	530095646
70	KIT	530069216
71	HOSE	530069247
72	TANK	530057045
530069998	CARBURETTOR	530069998
530071639	CARBURETTOR NEW PART NUMBER FOR THIS IPL	530071639
