McCULLOCH
>
CHAIN SAWS
>
CS42S CS42S, 967320603, 2016-05
>
CYLINDER
Back to
CS42S
CS42S, 967320603, 2016-05
CYLINDER
CS42S
CS42S, 967320603, 2016-05

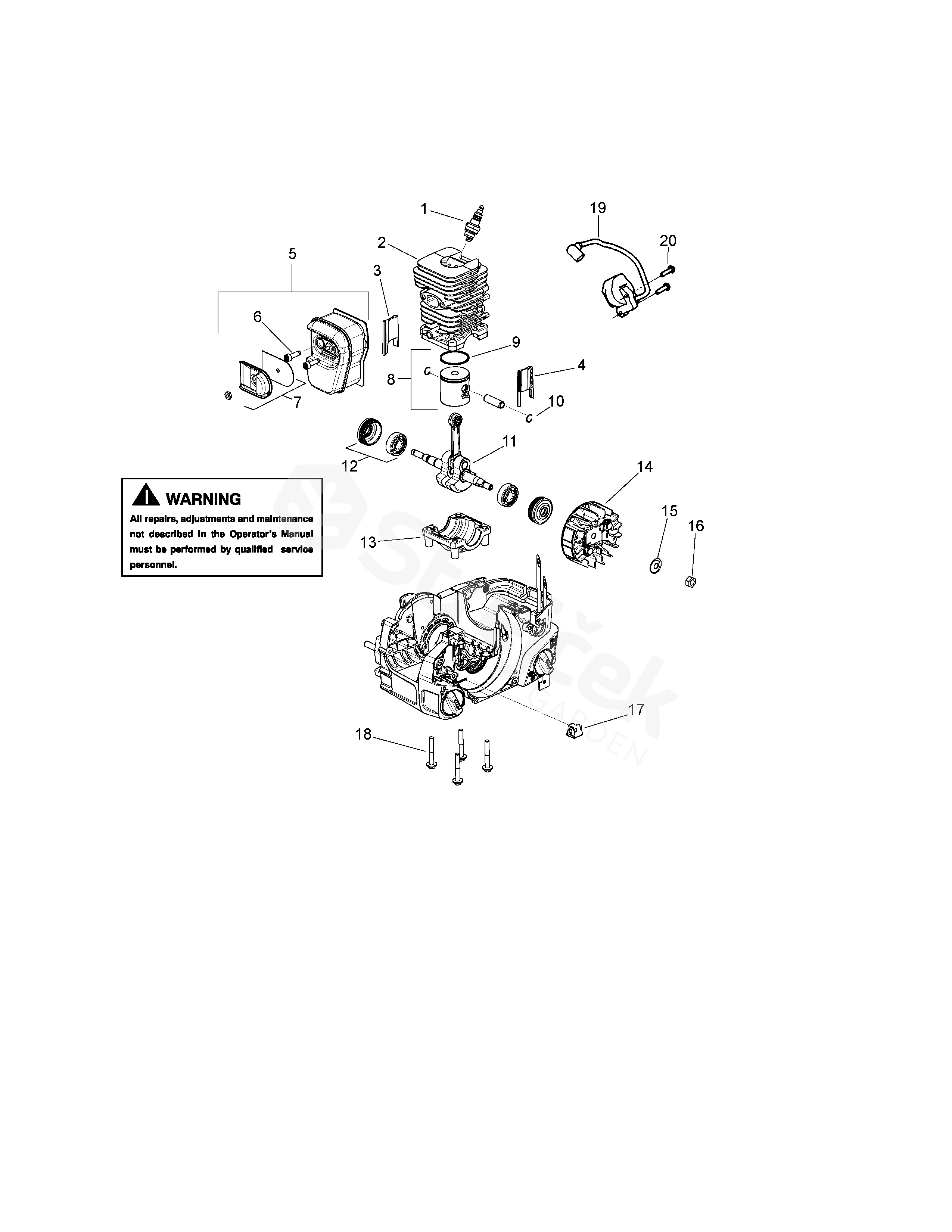

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CS42S, 967320603, 2016-05
1
SPARK PLUG "SPARK PLUG BRISK M14x1,25 HQT-1"
"SPARK PLUG BRISK M14x1,25 HQT-1"
585358201
2
KIT
"CYLINDER KIT (INCL. CYLINDER, 3, 4)"
530071884
3
INSERT
RIGHT INSERT (GRAY)
545015401
4
INSERT
LEFT INSERT (BLACK)
545015301
5
MUFFLER ASSY MUFFLER ASSY
MUFFLER ASSY
501809001
6
BOLT
MUFFLER BOLT
530016338
7
SPARK ARRESTER
SPARK ARRESTER ASSY
545081701
8
SERVICE KIT "PISTON KIT (INCL. PISTON, PIN, 9, 10)"
"PISTON KIT (INCL. PISTON, PIN, 9, 10)"
582023101
9
PISTON RING
PISTON RING
545160401
10
LOCKING RING
PISTON PIN RETAINER
530015697
11
CRANKSHAFT CRANKSHAFT & CON ROD ASSY
CRANKSHAFT & CON ROD ASSY
587602501
12
BEARING
CRANKSHAFT BEARING & SEAL ASSY
530056363
13
CRANKCASE CRANKCASE CAP
CRANKCASE CAP
586120501
14
FLYWHEEL ASSY
FLYWHEEL ASSY
545016308
15
PODLOŽKA
FLYWHEEL WASHER
530015127
16
MATICE
FLYWHEEL NUT
530016134
17
STRAP GROUND STRAP
GROUND STRAP
585365601
18
BOLT
CYLINDER BOLT
545081501
19
MODULE IGNITION MODULE
IGNITION MODULE
583944903
20
SCREW
SCREW M5.38-14X22.225MM
530016432
