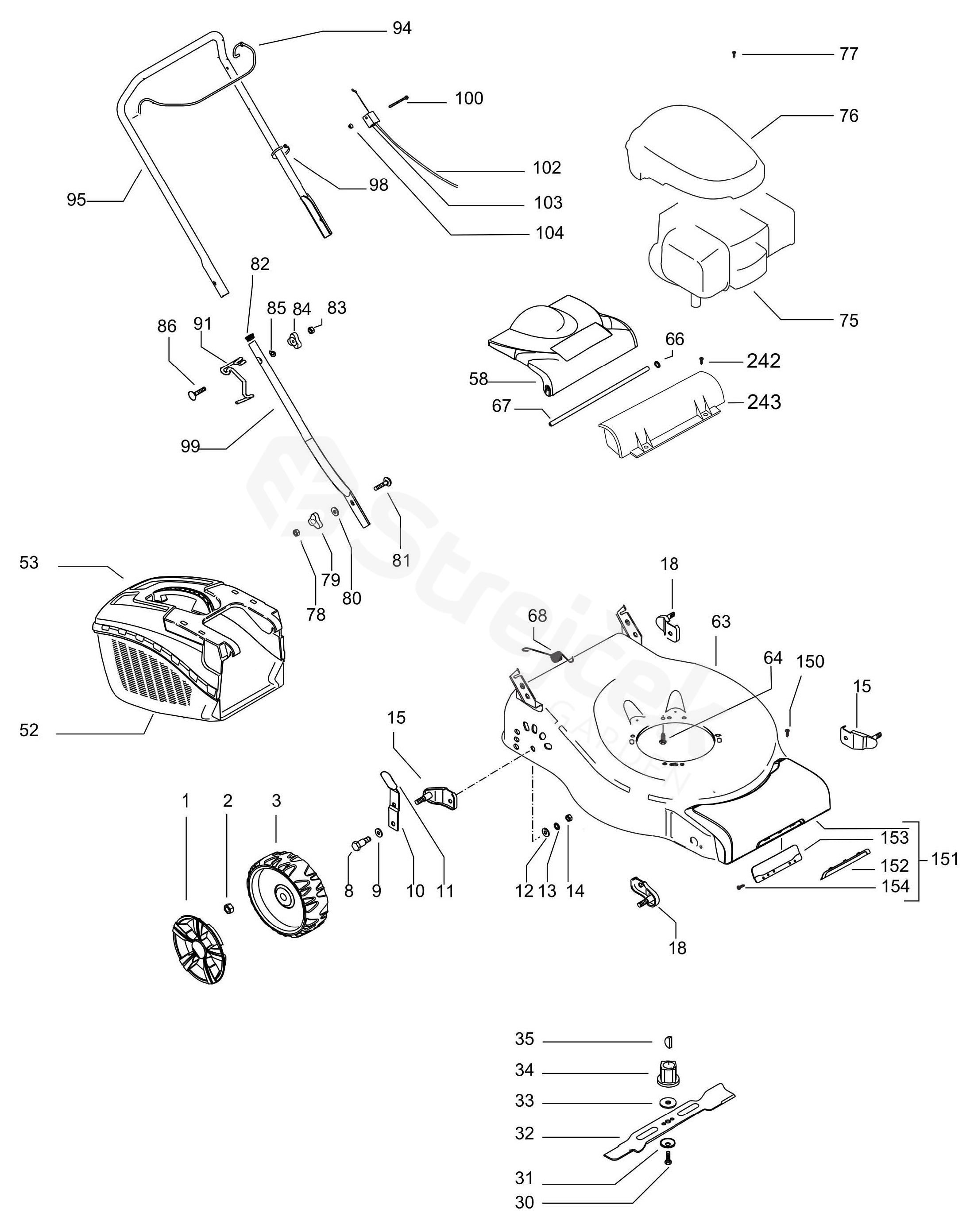

M40-110 CLASSIC M40-110 CLASSIC, 96762140100, 2016-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M40-110 CLASSIC, 96762140100, 2016-02

1	HUB CAP	574396301
2	MATICE	504857801
3	WHEEL	574414904
8	SCREW	531204912
9	WASHER	588234202
10	LEVER	586932801
11	KNOB	574610501
12	WASHER	531207989
13	PODLOŽKA	531208974
14	NUT	531207978
15	SUPPORT WHEEL	504851601
18	SUPPORT WHEEL	504851501
30	SCREW	531208008
31	WASHER	531207237
32	MOWER BLADE	587159010
33	WASHER	531207243
34	ADAPTER	531207242
35	KEY	505290901
52	GRASSBAG	574610301
53	GRASSBAG	574610401
58	HATCH	574610201
63	CHASSIS	575742602
64	SCREW	531212851
66	LOCKWASHER	584816903
67	SHAFT	531205060
68	SPRING	531205999
75	ENGINE ASSY	579820201
76	SHROUD KIT	579820203
77	SCREW	532181698
78	NUT	531207982
79	WING NUT	531204923
80	WASHER	531204922
81	SCREW	531204921
82	PLUG	531208950
83	NUT	531207982
84	WING NUT	531204923
85	WASHER	531207090
86	SCREW	531207089
91	HOOK	504708601
94	HANDLE	504708304
95	HANDLE	504708001
98	CABLE HOLDER	531205581
99	HANDLE	531206071
100	SCREW EHHM	580833601
102	BRAKE WIRE	531213522
103	BRACKET	531208043
104	HEXAGON LOCKING NUT	581551201
150	SCREW CRPANT	576047401
151	FRONT COVER ASSY	575562004
152	COVER	574375201
153	ATTACHMENT PLATE	574721701
154	SCREW ITXPANT	575955701
242	SCREW	576136006
243	SEAL	579300901
