McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M46-140 WR M46-140 WR, 96717390103, 2014-03
>
PRODUCT COMPLETE
Back to
M46-140 WR
M46-140 WR, 96717390103, 2014-03
PRODUCT COMPLETE

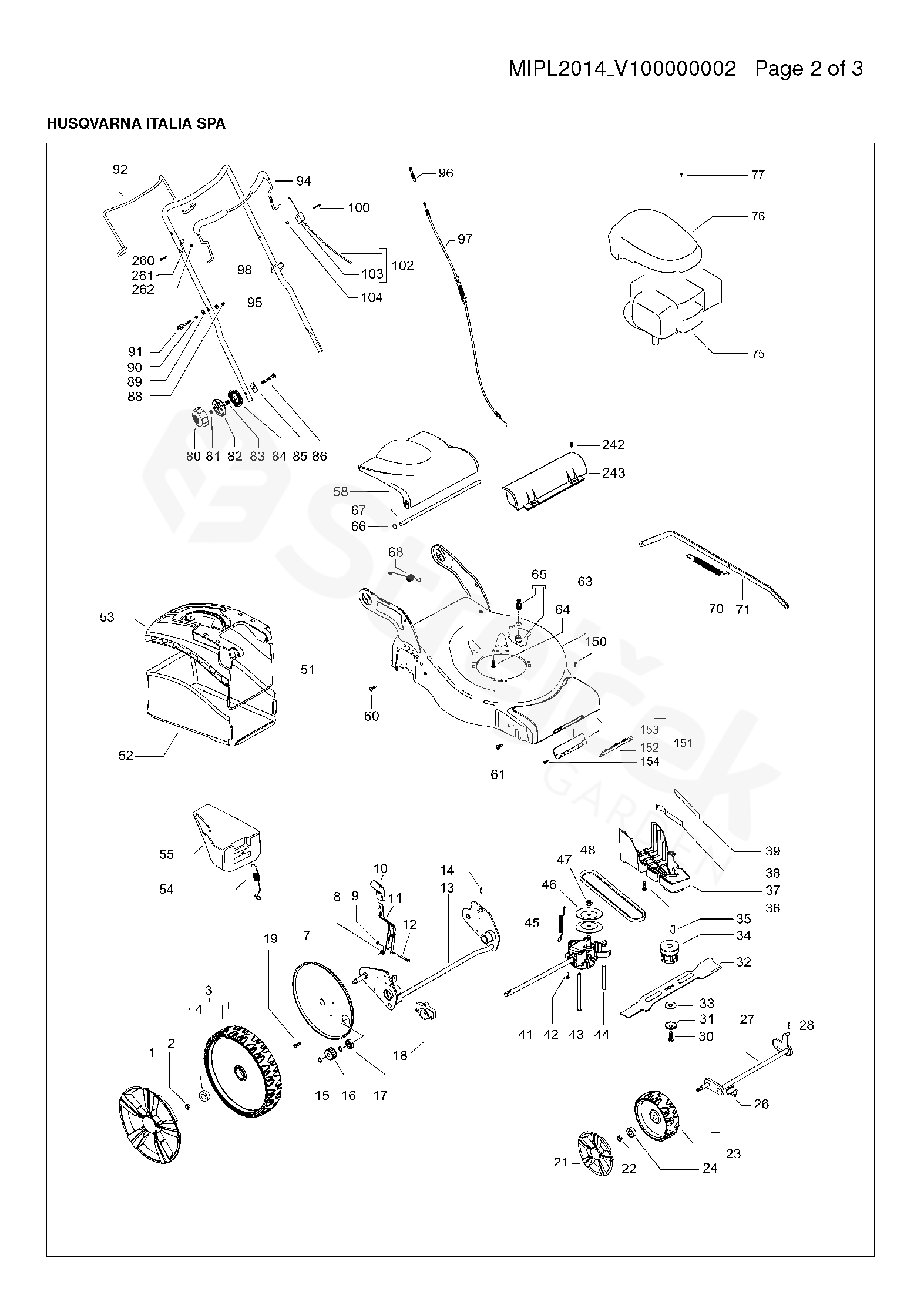

M46-140 WR
M46-140 WR, 96717390103, 2014-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M46-140 WR, 96717390103, 2014-03
1
HUB CAP
574396601
2
MATICE
504857801
3
WHEEL ASSY
574451201
4
BEARING
531208778
7
HUB CAP
504539901
8
SPRING
583951302
9
NUT
531208492
10
KNOB
580462401
11
LEVER ASSY
581178601
12
SCREW
538235807
13
REAR AXLE
510092801
14
KOLÍČEK
531206653
15
PODLOŽKA
531208772
16
PASTOREK
544342301
17
BEARING
531208778
18
SUPPORT
531205944
19
SCREW
531207856
21
HUB CAP
574396401
22
MATICE
504857801
23
WHEEL ASSY
574450901
24
BEARING
531208778
26
SUPPORT
577384201
27
FRONT AXLE ASSY
504856501
28
KOLÍČEK
531206653
30
SCREW
531208008
31
WASHER
531207237
32
MOWER BLADE
531211017
33
WASHER
531207243
34
BLADE SUPPORT
581843001
35
KEY
505290901
36
SCREW
531207856
37
BELT GUARD
544462201
38
WEAR PROTECTION
504046101
39
WEAR PROTECTION
544462501
41
GEARBOX
504541402
42
SCREW
510037501
43
BELT GUIDE
544934401
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
504034801
51
FRAME
574869401
52
GRASSBAG
574869602
53
GRASSBAG
574610301
54
SPRING mulching plug
522857701
55
PLUG
531210617
58
HATCH
574610201
60
SCREW
531206677
61
SCREW
525433101
63
CHASSIS
581292002
64
SCREW
531212851
65
CONNECTOR
531205848
66
LOCKWASHER
584816903
67
TIE ROD
531211441
68
SPRING
531211840
70
SPRING
579245302
71
ROD
580963301
75
TBD N/A
engine, Briggs & Stratton, model number 09P6020029H1
.
76
SHROUD
580445601
77
SCREW
532181698
80
KNOB
580424301
81
WASHER
531204922
82
SEGMENT
531211474
83
SPRING
531211476
84
SEGMENT
531211473
85
PLATE
531211581
86
SCREW RSQM
581259501
88
NUT
531208491
89
PODLOŽKA
531204961
90
NUT
531207165
91
PIN RETAINING SCREW
531205169
92
BAIL
580654301
94
BAIL
580849104
95
HANDLE
580412302
96
SPRING
580761901
97
CABLE
544908004
98
CABLE HOLDER
531205581
100
SCREW EHHM
580833601
102
CABLE
580853401
103
BRACKET
531208043
104
HEXAGON LOCKING NUT
581551201
150
SCREW CRPANT
576047401
151
FRONT COVER ASSY
575562104
152
COVER
574375201
153
ATTACHMENT PLATE
574721701
154
SCREW ITXPANT
575955701
242
SCREW CRPANT
576047401
243
SEAL
579300901
260
SCREW EHHM
580833602
261
BRACKET
532430034
262
HEXAGON LOCKING NUT
581551201
