McCULLOCH
>
TRACTORS/RIDE MOWERS
>
M155107H M155107H, 96041001004, 2010-07
>

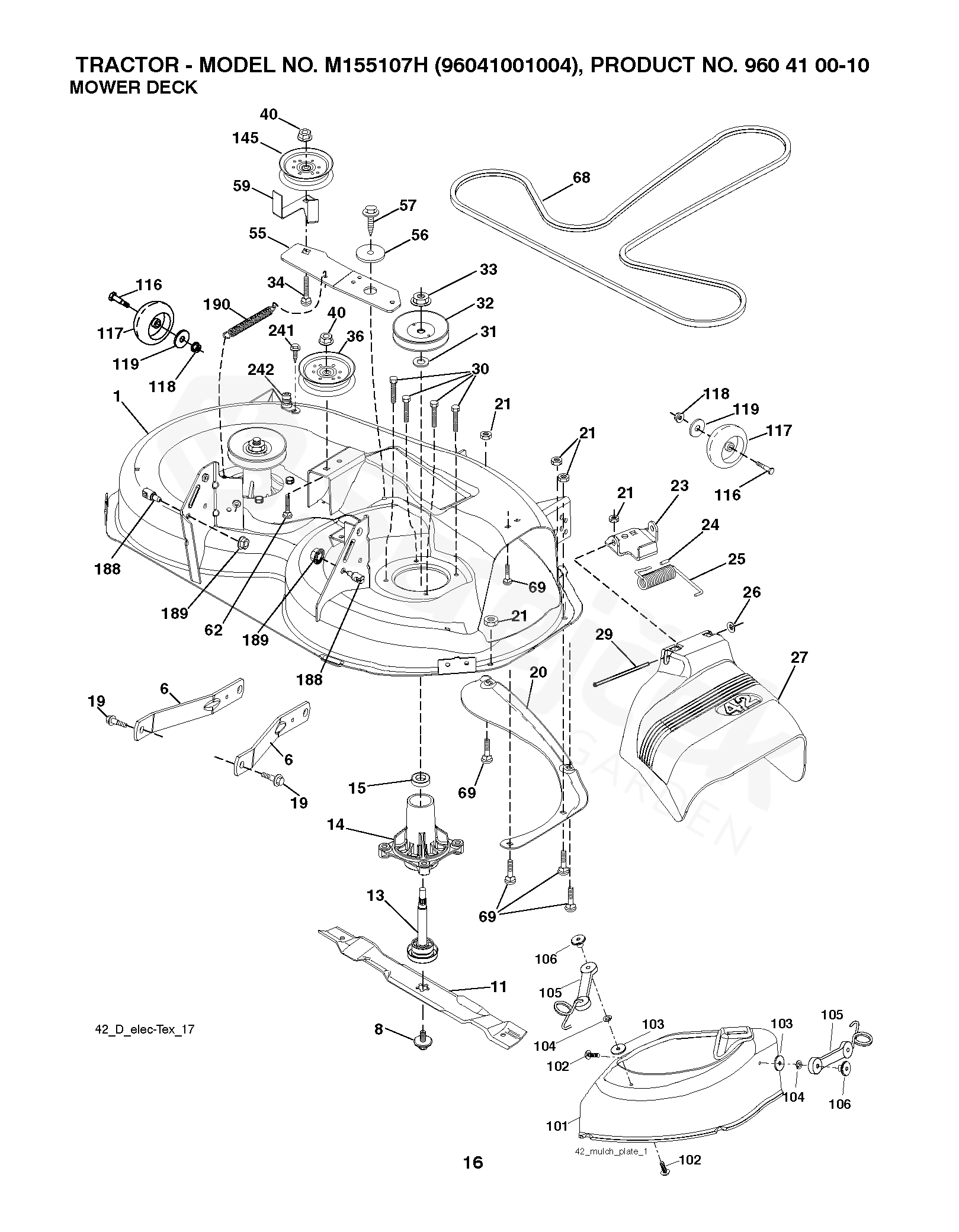

MOWER DECK / CUTTING DECK
Back to
M155107H
M155107H, 96041001004, 2010-07
MOWER DECK / CUTTING DECK
M155107H
M155107H, 96041001004, 2010-07
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M155107H, 96041001004, 2010-07
1
HOUSING
532196495
6
ARM
532195186
8
SCREW
532193003
11
RIDE ON BLADE
532134149
13
SHAFT ASSY
532192872
14
BEARING HOUSING
532187281
15
BEARING
532110485
16
STRIPPER. MANDREL.BLACK
532174493
19
BOLT
532196539
20
KOLEJNICE
532159770
21
MATICE
873680500
23
HINGE
532192557
24
HUB CAP
532105304
25
TORSION SPRING
532197026
26
MATICE
532110452
27
KRYT
532403004
29
HRÍDEL
532131491
30
SCREW
532173984
31
PODLOŽKA
532187690
32
PULLEY
532153535
33
MATICE
532400234
34
BOLT
872110612
36
PULLEY
532197379
40
MATICE
873900600
55
ARM
532437110
56
ROZPĚRKA
532199092
57
SCREW
817000616
59
GUARD
532141043
62
BOLT
872110616
68
BELT
532144959
69
BOLT
872140505
97
PODLOŽKA
532178515
101
COVER
532193107
102
SCREW
871081010
103
WASHER
819061216
104
WASHER
810071000
105
LATCH
532160793
106
NUT
532125004
116
BOLT
532124842
117
KOLO
532188606
118
MATICE
873930600
119
PODLOŽKA
819121414
145
PULLEY
532193197
188
ŠROUB
532195161
189
MATICE
873900500
190
PRUŽINA
532197251
241
SCREW
532152927
242
PORT.WASHOUT
532415598
SPINDLE
532192870
