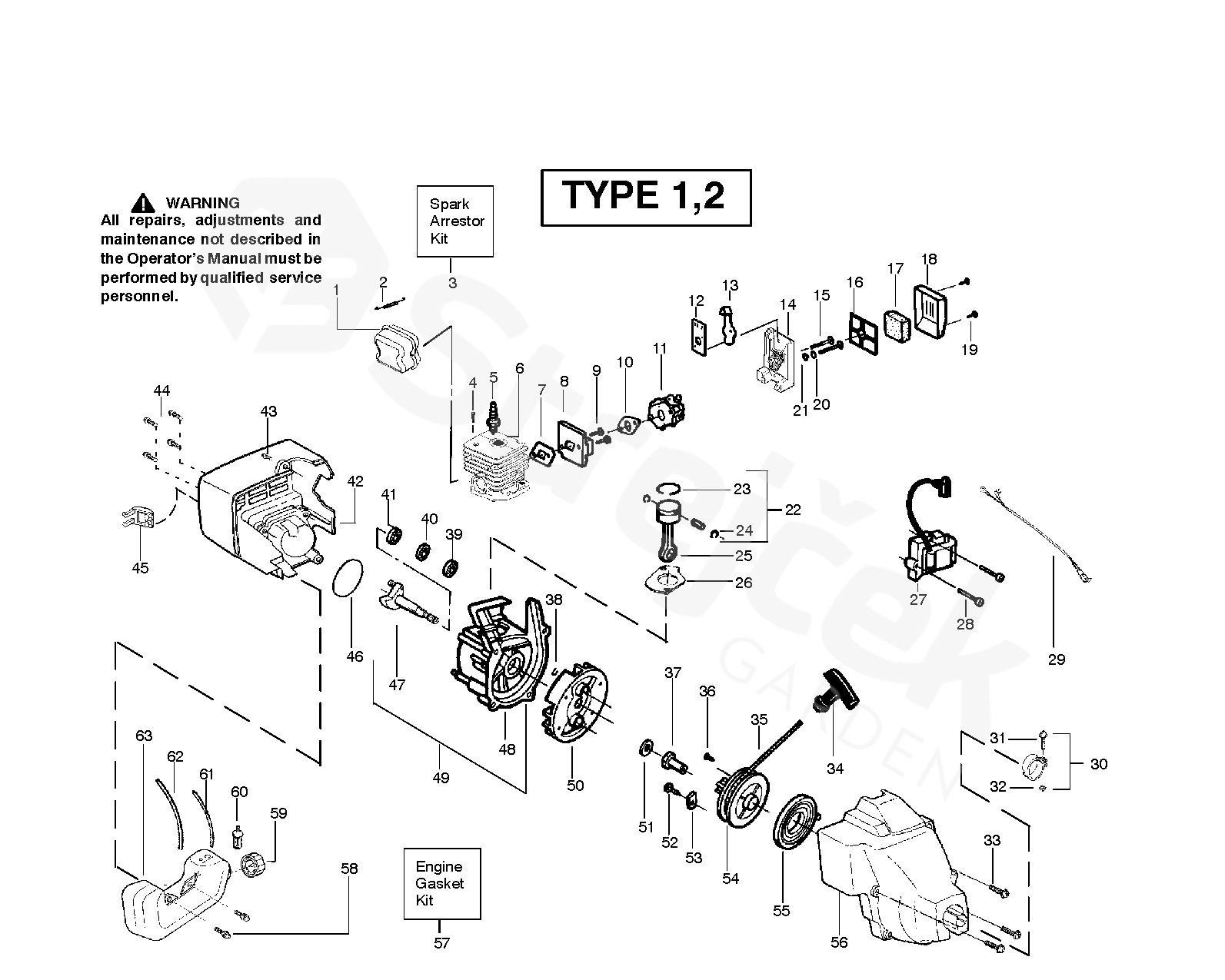

TM251 TM251, 952715438, 952715448, 2009-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TM251, 952715438, 952715448, 2009-04

1	MUFFLER	530071396
2	SPRING	530042088
3	SCREEN	530071391
4	SCREW	530015953
5	Spark Plug (RCJ 6Y)	CHAMPION
6	KIT -- CYLINDER	530071359
7	GASKET	530071363
8	ADAPTER	530057634
9	SCREW	530016014
10	GASKET	530071363
11	CARBURETTOR	530071630
12	PLATE	530038747
13	CHOKE SHUTTER	530038686
14	AIR BOX	530052431
15	SCREW	530016428
16	PLATE	530036569
17	AIR FILTER	530036575
18	COVER	530036568
19	SCREW	530016349
20	SPACER	530015852
21	SPRING	530015254
22	KIT PISTON	530071357
23	PISTON RING	530055120
24	CIRCLIP	530015162
25	CONNECTING ROD	530069945
26	GASKET	530071363
27	IGNITION MODULE	530039163
28	SCREW	530016357
29	CABLE ASSY	530049018
30	KIT	530056365
31	SCREW	530016381
32	NUT--NOSE CONE	530016382
33	SCREW	530015810
34	STARTER HANDLE	530027569
35	STARTER ROPE	530069232
36	SCREW	530016392
37	DRIVE COUPLING	530038604
38	CLIP	530015941
39	BEARING	530055728
40	SEAL	530019264
41	BEARING	530032125
42	COVER	530057026
43	SCREW	530015934
44	SCREW	530015810
45	PROTECTION	530054536
46	GASKET	530071363
47	CRANKSHAFT	530054753
48	KIT	530071627
49	CRANKCASE	530071624
50	STARTER DEVICE	530054114
51	PODLOŽKA Washer	530015828
52	SCREW	530015775
53	RETAINER	530027523
54	STARTER PULLEY	530069400
55	RETURN SPRING	530042085
56	COVER	530071677
57	GASKET	530071363
58	RETAINER	530016379
59	TANK	530014347
60	FILTER	530095646
61	HOSE	530069247
62	KIT	530069216
63	TANK	530049296
