Spare parts - Partlist - T330, T330+ T330, T330+, 952715483, 952715702, 2011-09 - ENGINE

Everything for your machines

T330, T330+ T330, T330+, 952715483, 952715702, 2011-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T330, T330+, 952715483, 952715702, 2011-09

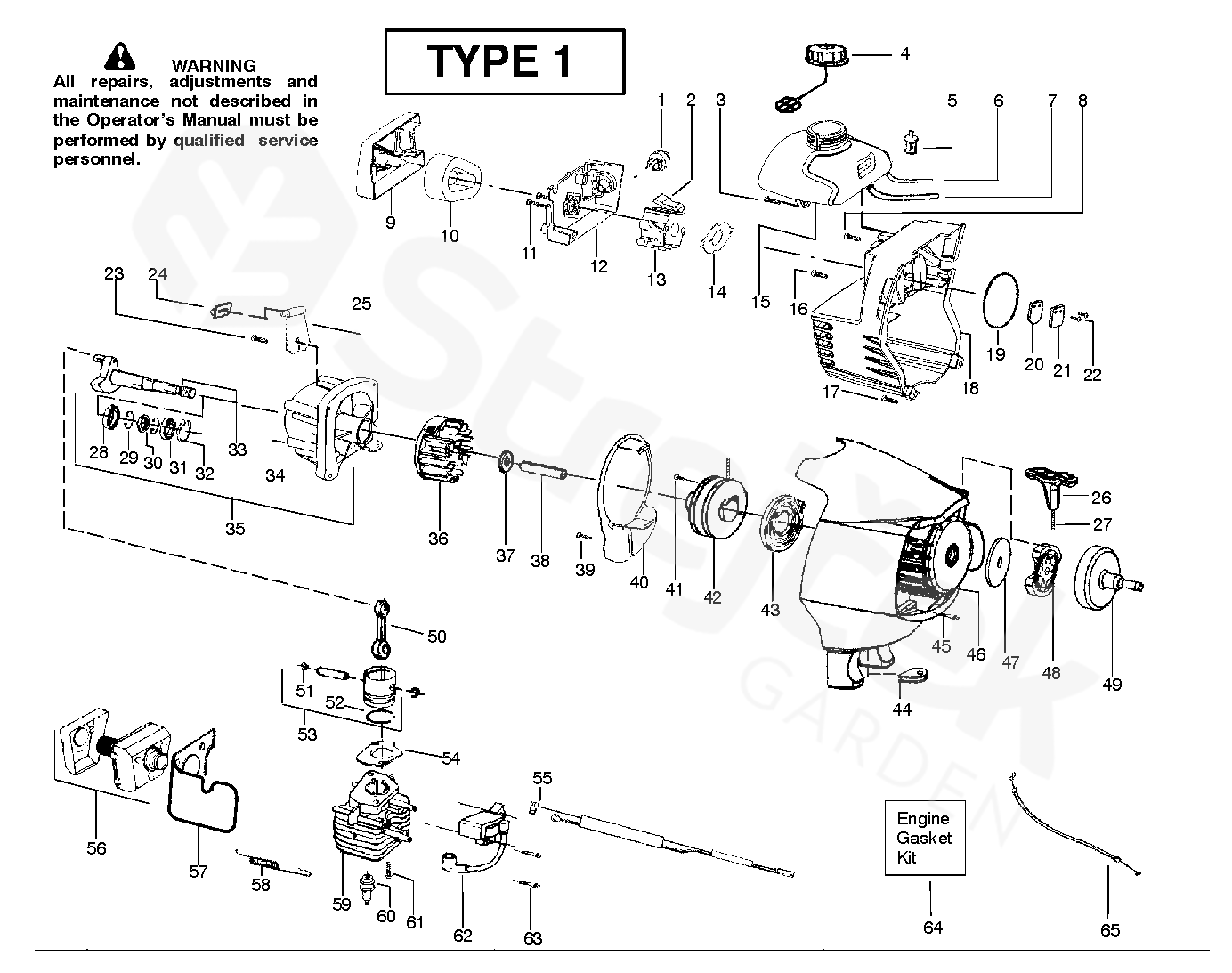

1	PURGE	530047721
2	CHOKE CONTROL	530071717
3	SCREW	530015843
4	ASSEMBLY	530057736
5	FILTER	530095646
6	HOSE	530069247
7	KIT	530069216
8	SCREW	530015775
9	COVER	530150088
10	AIR FILTER	530054946
11	SCREW	530015849
12	BOX--AIR	530150080
13	CARBURETTOR	530071637
14	GASKET	530071401
15	FUEL TANK ASSY	530150092
16	SCREW	530015771
17	SCREW	530015952
18	ASSY--SHROUD	530150089
19	GASKET	530071401
20	REED	530027593
21	STOP-REED	530054596
22	SCREW	530016064
23	SCREW	530015875
24	BUMPER	530055492
25	RET.-FUEL TANK	530054941
26	HANDLE	530058742
27	KIT	530071325
28	BEARING	530032103
29	RETAINER RING	530015787
30	SEALING RING	530019158
31	BEARING	530032102
32	RETAINER RING	530015789
33	CRANKSHAFT ASSY	530028807
34	CRANKCASE ASSY	530012514
35	ASSEMBLY	530071685
36	FLYWHEEL ASSY	530055524
37	WASHER	530016030
38	SPACER	530055620
39	SCREW	530015775
40	PLATE	530054939
41	SCREW	530016391
42	KIT	530071399
43	RETURN SPRING	530042086
44	PROTECTION	530019182
45	SCREW	530015810
46	HOUSING	530055248
47	WASHER	530094189
48	CLUTCH ASSY	530055122
49	ASSEMBLY	530028799
50	CONNECTING ROD	530010960
51	CIRCLIP	530015162
52	PISTON RING	530012595
53	KIT	530072000
54	GASKET	530071401
55	ASSEMBLY	530058846
56	MUFFLER	530069310
57	HEAT SHIELD	530058957
58	SPRING	530036409
59	CYLINDER	530012490
60	PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y) RCJ-6Y	952030249
61	SCREW	530001624
62	MODULE--IGNITION	530039218
63	SCREW	530016357
64	GASKET	530071401
65	ASSEMBLY	545026801
