Spare parts > Partner > TRACTORS/RIDE MOWERS > P200107HRB P200107HRB, 96061017804, 2010 - 09 > ENGINE
Back to

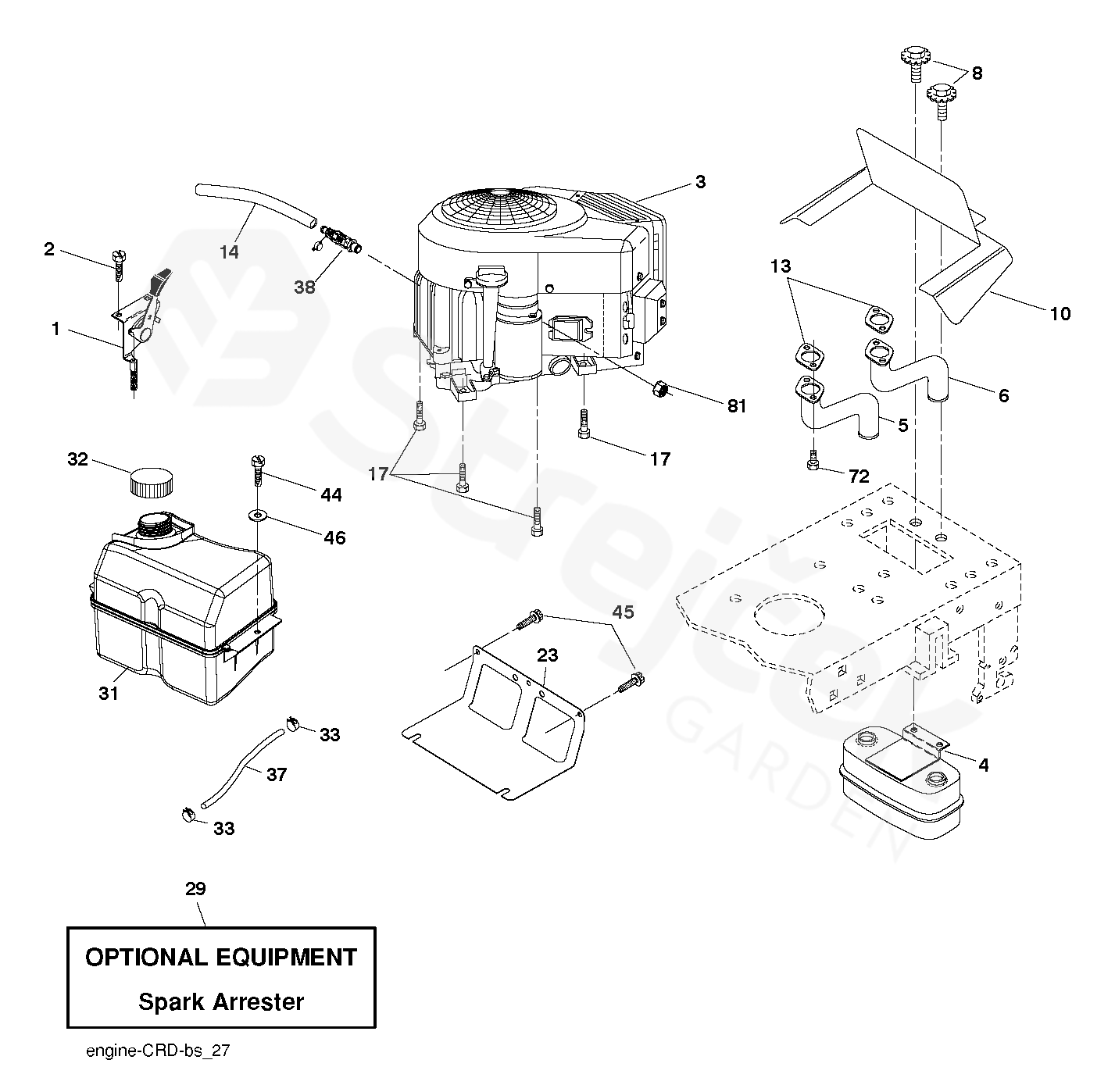

ENGINE
P200107HRB P200107HRB, 96061017804, 2010 - 09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P200107HRB, 96061017804, 2010 - 09
1 THROTTLE CONTROL 532424686
2 SCREW 817720408
3 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Engine B&S Model 406777-2271-B1 		000000000
4 MUFFLER 532149723
5 TUBE 581881101
6 TUBE 581881001
8 BOLT 532171877
10 SHIELD 532434017
13 GASKET 532165391
14 TRUBKA 532148456
17 SCREW 817060620
23 HEAT SHIELD 532169837
29 SPARK ARRESTER KIT 532137180
31 FUEL TANK 532407551
32 HUB CAP 532430220
33 HADICOVÁ SVĚRKA 532123487
37 HADICE 532137040
38 PLUG 532428287
44 SCREW 817670412
45 SCREW 817000612
46 PODLOŽKA 819091416
72 SCREW 532183906
81 MATICE 873510400
