Spare parts > Poulan > TRACTORS/RIDE MOWERS > 2P4B9B 2P4B9B, 2006-03 > CHASSIS & ENCLOSURES
Back to

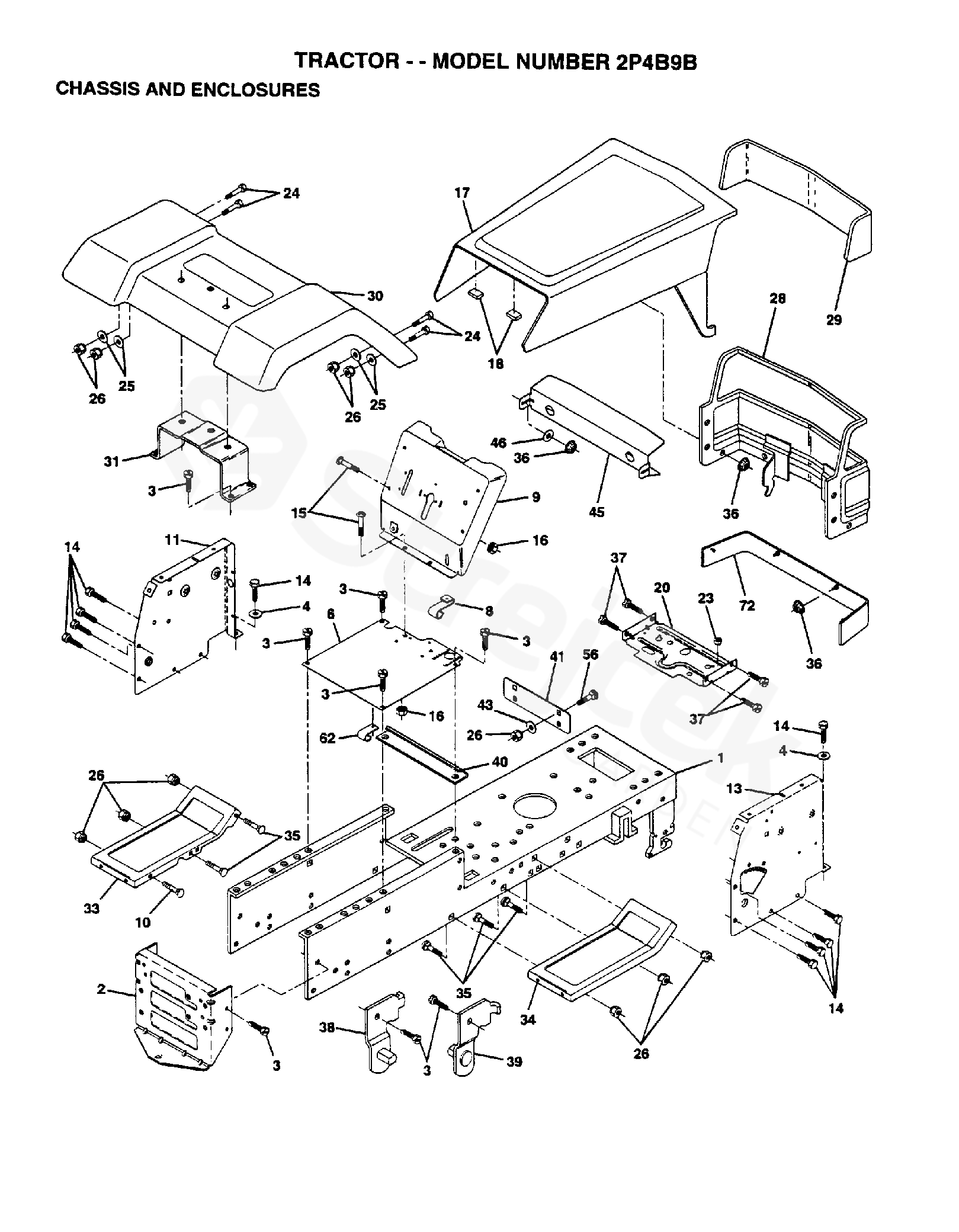

CHASSIS & ENCLOSURES
2P4B9B 2P4B9B, 2006-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2P4B9B, 2006-03
1 FRAME 532135034
2 DRAWBAR 532140356
3 SCREW 817490612
4 WASHER 819131216
6 PLATE 532145206
8 CLIP 532126471
10 BOLT 872140608
11 PANEL 532135464
13 PANEL 532124031
14 SCREW 817490608
15 SCREW 874180512
16 NUT 873310500
18 DAMPER 532126938
20 PLATE 532140281
23 BUSHING 532124028
24 BOLT 874780616
25 PODLOŽKA 819131312
26 NUT 532062336
29 LENS 532133805
31 BRACKET 532139976
33 SUPPORT 532145244
34 SUPPORT 532145243
35 BOLT 872110606
36 NUT 532108067
37 SCREW 817490512
38 BRACKET 532139886
39 BRACKET 532139887
40 BRACKET 532139977
41 CONSOLE 532139978
43 WASHER 819171416
45 PROTECTOR 532132257
46 WASHER 532127316
56 BOLT 872140606
60 WASHER 811050500
61 MATICE 873680500
62 CLIP 532141606
