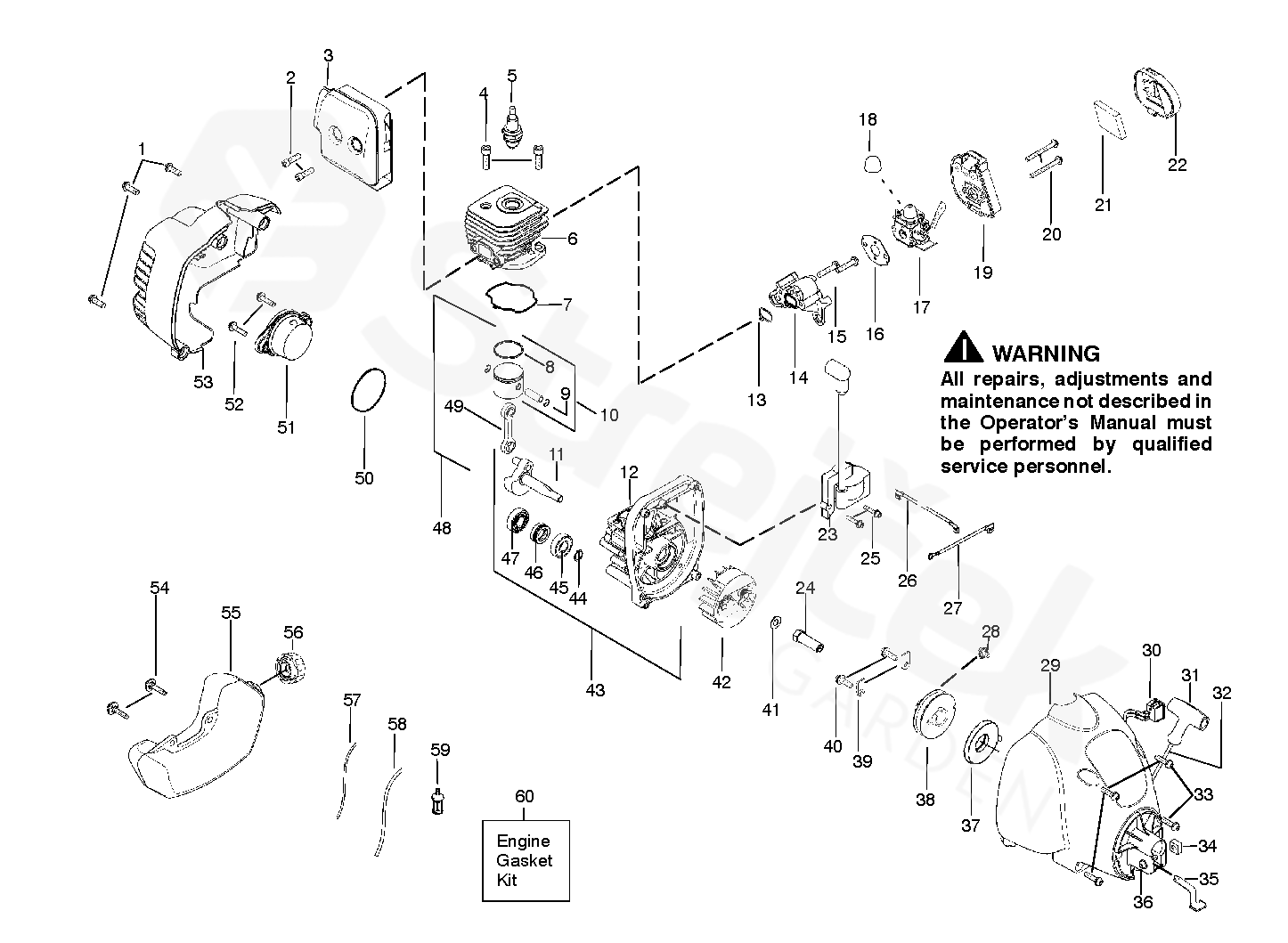

T250L T250L, 966568301, 2010-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T250L, 966568301, 2010-07

1	SCREW	530015814
2	BOLT	530058982
3	ASSEMBLY (Incl 2)	530059825
4	SCREW	530015953
5	PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y)	952030249
6	CYLINDER	530012541
7	GASKET KIT	530071750
8	PISTON RING	530055120
9	CIRCLIP	530015162
10	KIT PISTON (Incl 8, 9)	530071357
11	CRANKSHAFT ASSY	530057829
12	CRANKCASE (Incl 45,46,47)	530012582
13	GASKET KIT	530071750
14	ADAPTER	530057547
15	SCREW	530016441
16	GASKET KIT	530071750
19	BASE	574615001
20	SCREW	530016429
21	AIR FILTER	530057781
22	COVER	530057584
23	IGNITION MODULE	545024901
24	DRIVE COUPLING	530038604
25	SCREW	530016357
26	CABLE	530014663
27	CABLE	530014662
28	SCREW	530016392
29	FAN HOUSING	545010611
30	KIT SWITCH MOMENTARY	545081869
31	STARTER HANDLE	530027569
32	KIT	530071767
33	SCREW	530016386
34	NUT	530016124
35	CLIP	530057588
36	SCREW	530016430
37	RETURN SPRING	530042085
38	KIT	530071786
39	RETAINER	530027523
40	SCREW	530015775
41	PODLOŽKA Washer	530015828
42	FLYWHEEL ASSY	545005101
43	ASSEMBLY (Incl 11,12,44)	530071768
44	CLIP	530015941
45	BEARING	530055728
46	SEAL	530019264
47	BEARING	530032125
48	PISTON (Incl 10,49)	530071785
49	CONNECTING ROD	530069945
50	GASKET KIT	530071750
51	PLUG (incl50)	530057954
52	SCREW	530016386
53	REAR COVER	545011004
54	SCREW FUEL TANK RETAINER	530016445
55	ASSY FUEL TANK (FL)	545104102
56	TANK	530014347
57	HOSE	530069247
58	KIT	530069216
59	FILTER	530095646
60	GASKET KIT (Incl 7,13,16,50)	530071750
	CHOKE LEVER	545212602
