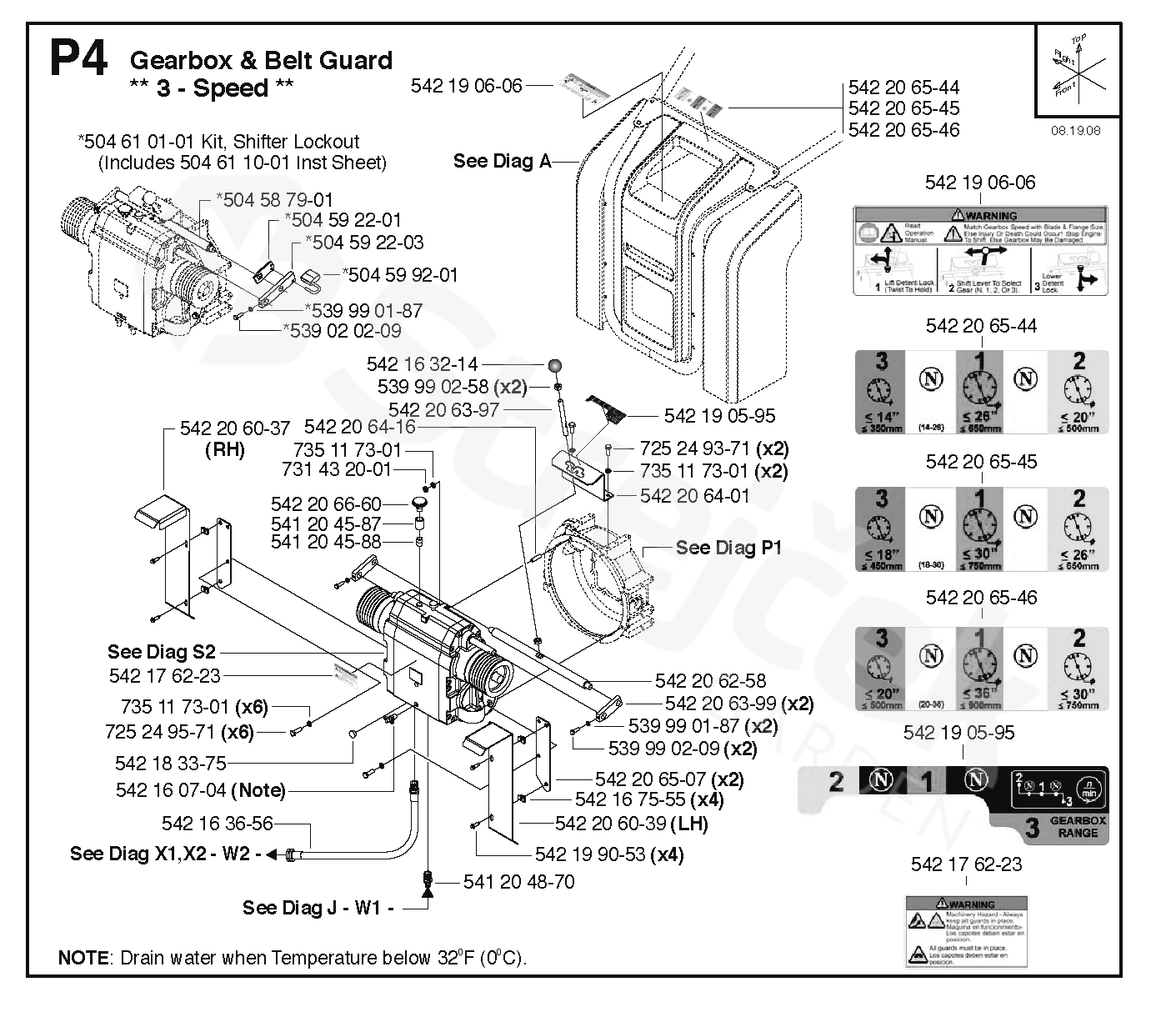

FS4800 FS4800, 2008-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For FS4800, 2008-01

54220654	TBD	54220654
504587901	ROD	504587901
504592201	ARM	504592201
504592203	ARM	504592203
504599201	LOCK	504599201
504610101	KIT	504610101
504611001	INSTRUCTION	504611001
539020209	KIT, TOGGLE SWITCH, S G	539020209
539990187	PODLOŽKA	539990187
539990209	SCREW	539990209
539990258	MATICE	539990258
541204587	NIPPLE	541204587
541204588	ADAPTER	541204588
541204870	FITTING	541204870
542160704	HAHN 1/4"NPT	542160704
542163214	BALL	542163214
542163656	HOSE	542163656
542167555	MATICE	542167555
542176223	DECAL	542176223
542183375	HOLE. PLUG: 3/4"	542183375
542190595	DECAL	542190595
542190606	DECAL	542190606
542199053	SCREW	542199053
542206037	BELT GUARD	542206037
542206039	BELT GUARD	542206039
542206258	ROD	542206258
542206397	HANDLE	542206397
542206399	ARM	542206399
542206401	SHIFT PLATE. Z-PATTERN. BLACK	542206401
542206416	STUD	542206416
542206507	BRACKET	542206507
542206544	DECAL	542206544
542206545	DECAL	542206545
542206546	DECAL	542206546
542206660	BREATHER	542206660
725249371	SCREW EHHM	725249371
725249571	SCREW EHHM	725249571
731432001	HEXAGON THIN NUT	731432001
735117301	PRUŽNÁ PODLOŽKA	735117301
