Husqvarna Construction Products
>
POWER CUTTERS
>

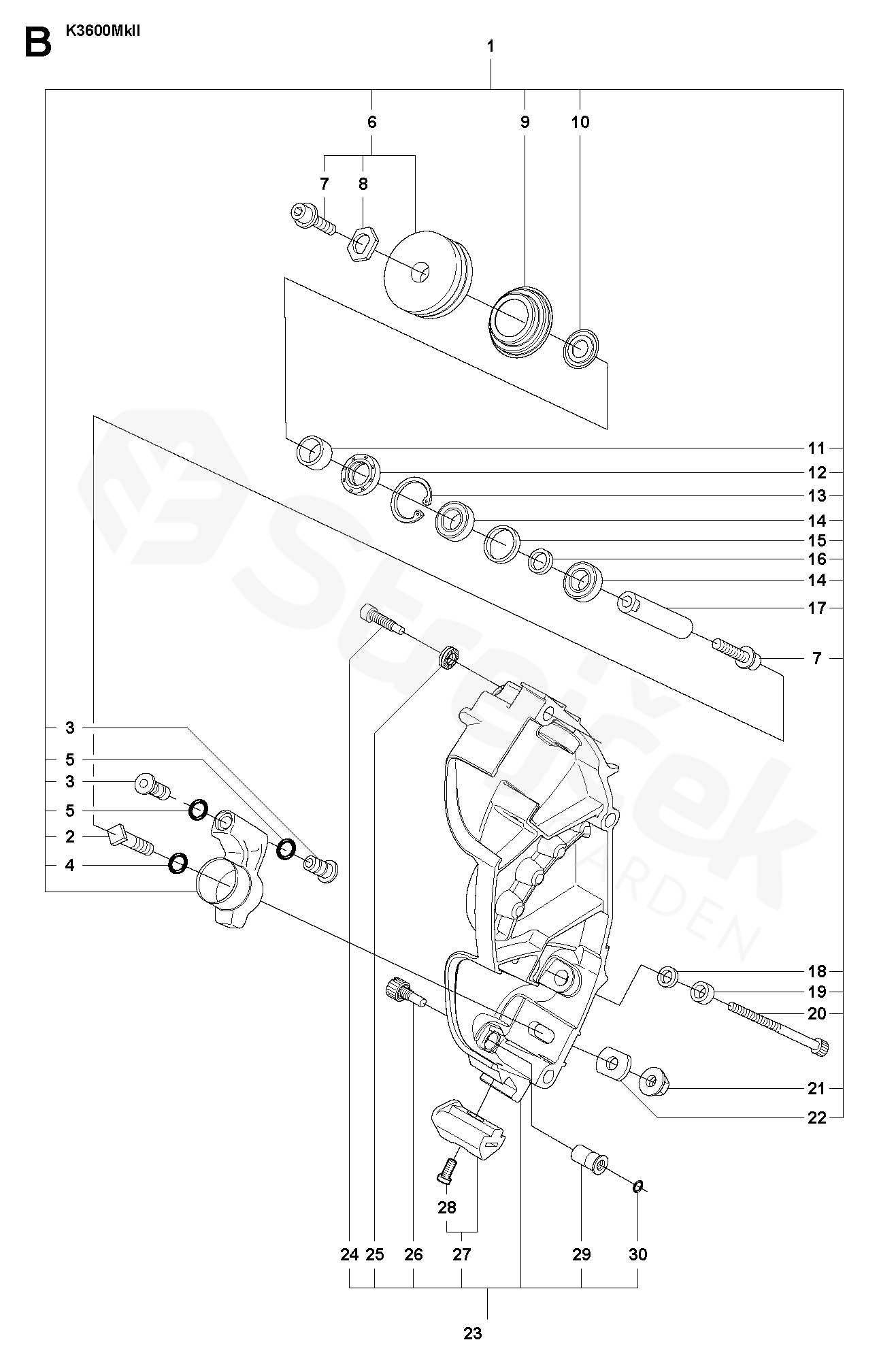

K3600 MkII K3600 MkII, 2007-01
>
LEVER
Back to
K3600 MkII
K3600 MkII, 2007-01
LEVER
K3600 MkII
K3600 MkII, 2007-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
K3600 MkII, 2007-01
1
LEVER ASSY Incl. 2 - 6, 9 - 23
Incl. 2 - 6, 9 - 23
506351806
2
SCREW
506346401
3
SPACING TUBE
506334903
4
O-KROUŽEK
503263008
5
O-KROUŽEK O-RING 10.0X2.2 NBR 90
503263026
6
SUPPORT ROLLER Incl. 3, 4
Incl. 7, 8
506352102
7
SCREW IHSCFM
503201318
8
DRIVER
506303401
9
SEALING
506399501
10
WASHER
506321701
11
SPACING SLEEVE
506379302
12
SEALING RING
503262001
13
CIRCLIP
735312810
14
BALL BEARING
503252401
15
SPACING SLEEVE
506316802
16
SPACING SLEEVE
506303302
17
SHAFT
506302902
18
SPACER
506376301
19
RUBBER BUSHING
506376401
20
SCREW IHSCM
725538156
21
HEXAGON NUT
503220001
22
WASHER
506346301
23
COVER Incl. 24, 25, 26 27, 29, 30
Incl. 24, 25, 26 27, 29, 30
506280306
24
SCREW
503205435
25
PODLOŽKA
503230403
26
ADJUSTMENT SCREW
506301402
27
WEAR PROTECTION Incl. 28
Incl. 28
506351901
28
SCREW IHSCM
725532955
29
THREAD INSERT
506330801
30
O-KROUŽEK
740420400
