Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > Z 572x Z 572x, 967679001-00, 2017-09 > SEAT
Back to

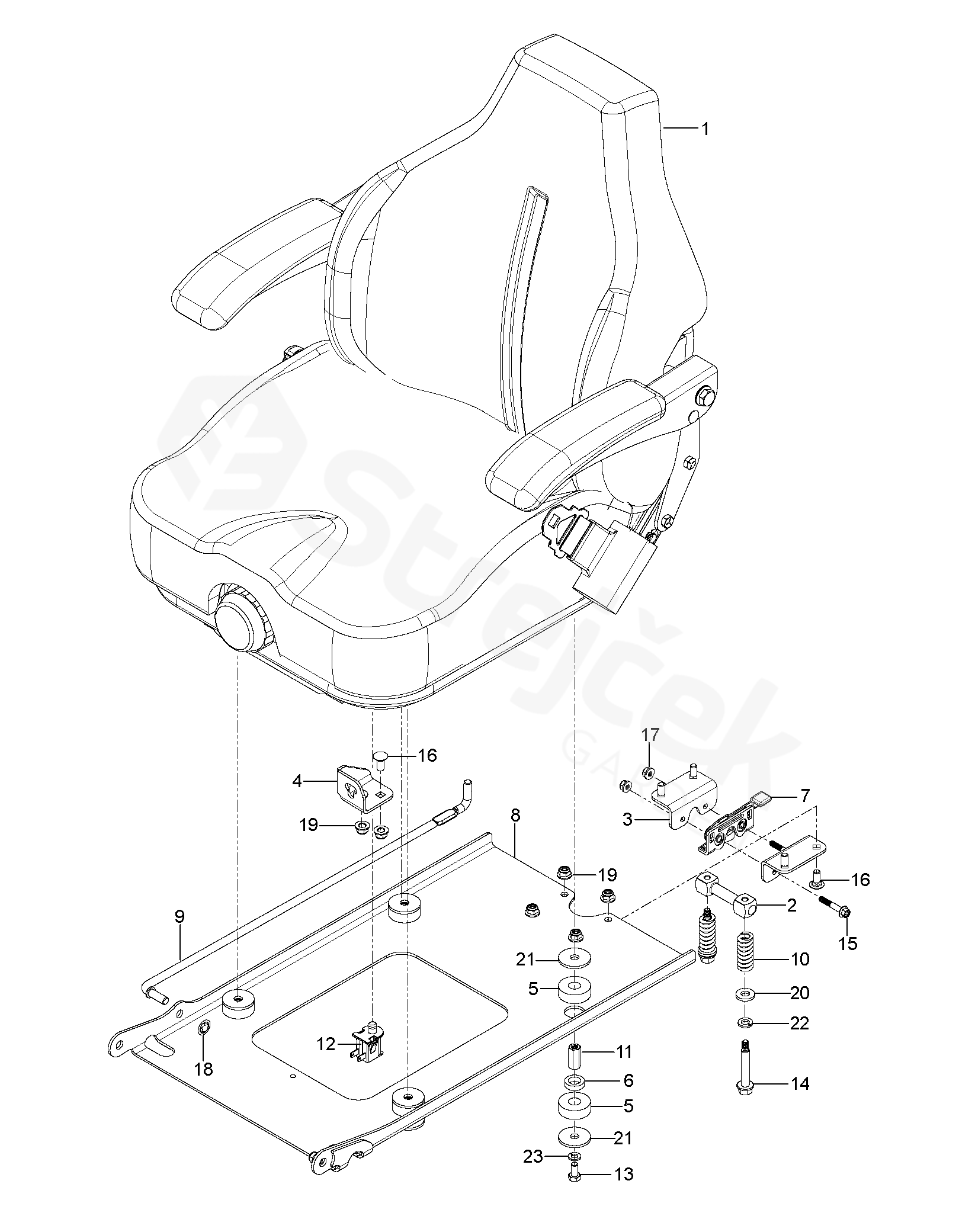

SEAT
Z 572x Z 572x, 967679001-00, 2017-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Z 572x, 967679001-00, 2017-09
1 SEAT ASSY 582460101
2 BAR 582478801
3 BRACKET 582478201
4 BRACKET 590555002
5 ISOLATOR 590481801
6 ISO-MOUNT INSERT 539116377
7 LATCH 590373501
8 PLATE 590506802
9 ROD 590507201
10 SPRING 539113952
11 NUT 582478101
12 SWITCH 589500901
13 HCS 5/16-18 X 5/8 GR 5 ZD 539108392
14 SCREW 582478901
15 SCREW 582478501
16 BOLT 539990316
17 BOLT 582478601
18 BOLT RETAINER 3/8 539913847
19 BOLT RETAINER 3/8 539112899
20 NUT, 5/16-18, NYLOC 522023401
21 PODLOŽKA 532413524
22 PODLOŽKA 539990118
23 PODLOŽKA 539990187
