Spare parts > Husqvarna Construction Products > TILE SAWS > MS 610 MS 610, 2018-08 > MOTOR
Back to

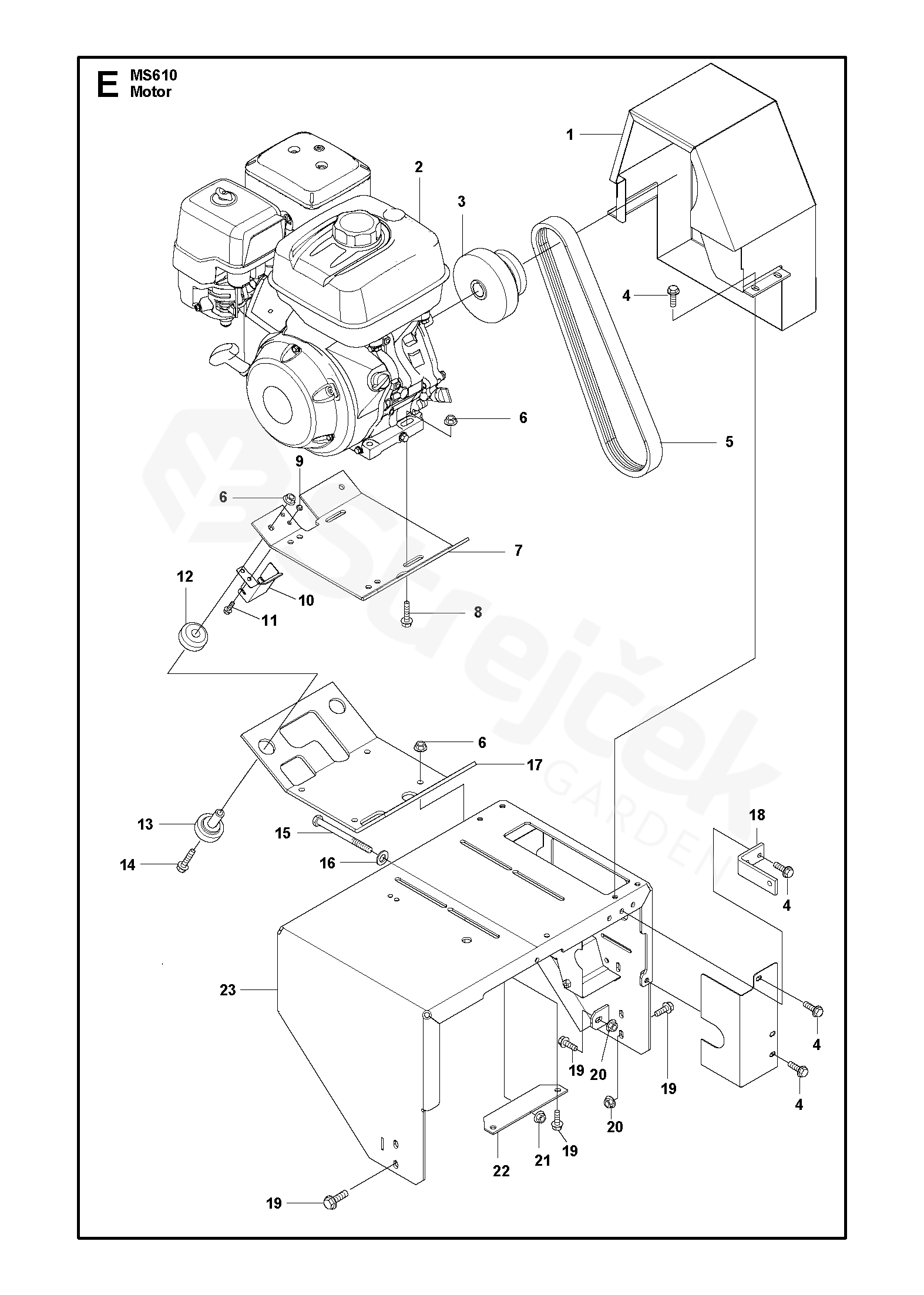

MOTOR
MS 610 MS 610, 2018-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MS 610, 2018-08
1 BELT GUARD ASSY 590740601
2 ENGINE 589467901
3 CLUTCH 542195255
4 ŠROUB EHHFM 585975401
5 V-BELT 542190416
6 NUT FLANGE 576645705
7 BRACKET 590376901
8 SCREW EHHFM 581548201
9 HEXAGON LOCKING NUT 732251601
10 BRACKET 510183201
11 ŠROUB EHHFM 585980601
12 ISOLATOR 542161197
13 ISOLATOR 542161197
14 SCREW EHHFM 581243301
15 SCREW 542195039
16 PODLOŽKA 539990250
17 BRACKET 590376801
18 TBD 542205349
19 ŠROUB EHHFM 585973101
20 HEXAGON NUT FLANGE 731712051
21 NUT 523327701
22 BRACKET 542205347
23 BRACKET 589335601
