COLLECTOR 43 S COLLECTOR 43 S (2006) [12-2334-62]
>

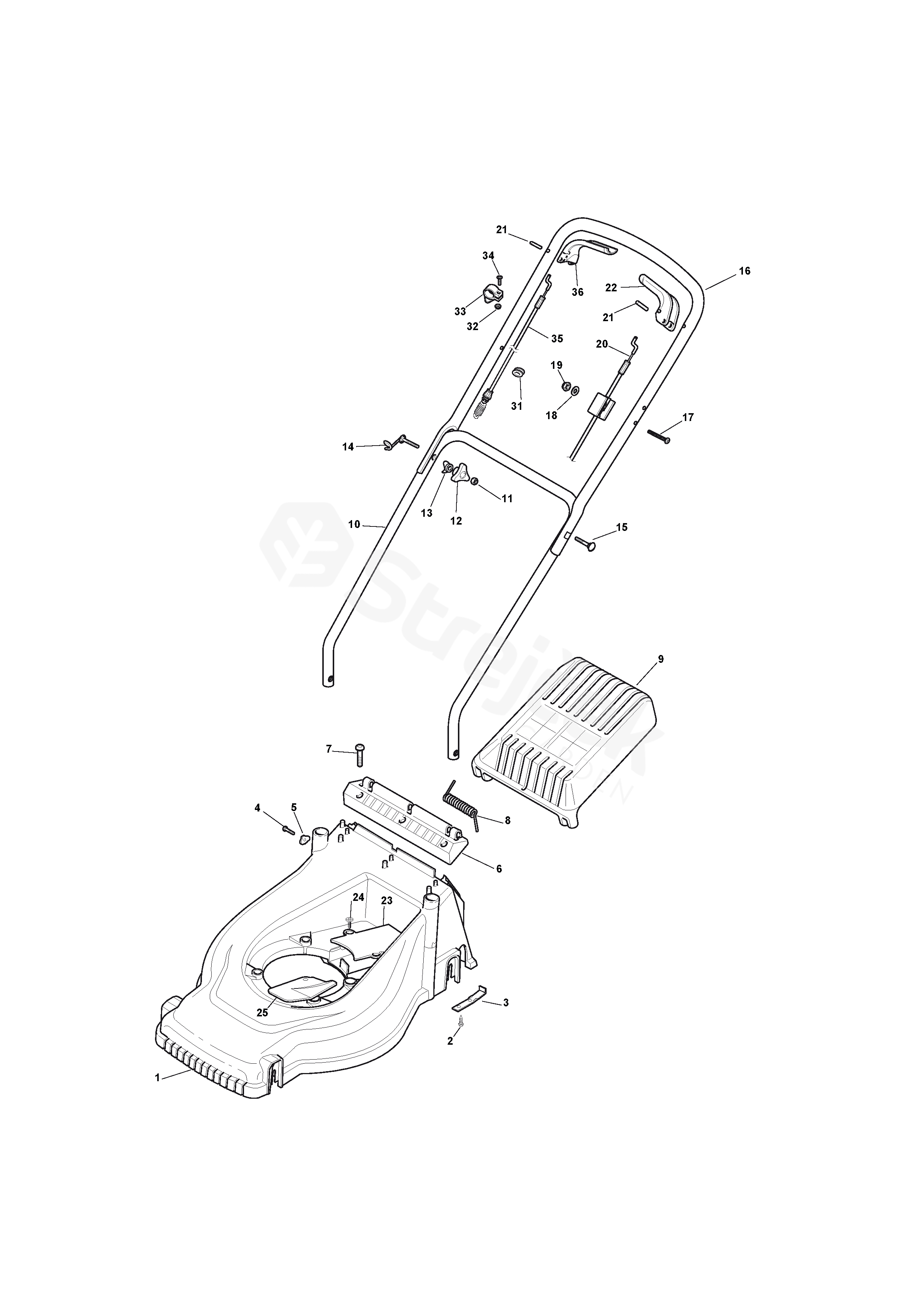

Chassis/Handle, Upper Part
Back to
COLLECTOR 43 S
COLLECTOR 43 S (2006) [12-2334-62]
Chassis/Handle, Upper Part
COLLECTOR 43 S
COLLECTOR 43 S (2006) [12-2334-62]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COLLECTOR 43 S (2006) [12-2334-62]
1
Red Deck
322066700/0
2
Screw
112728680/0
3
Rear Stiffening
322608531/0
4
Screw
112728450/0
5
Plate
322545135/0
6
Stone Guard Support
322785165/0
8
Spring
122450430/0
9
Stone Guard, Black
322600079/0
10
Hanlde Lower Part Ep434
381006609/0
11
Nut
112293200/0
12
Black Knob
122399900/0
13
Washer
122680006/1
14
Guide Spring
181003801/1
15
Screw
112819201/0
16
Handle, Upper Part
381006577/0
17
Screw
112674700/0
18
Washer
112521330/0
19
Nut
112292100/0
20
Cable, Thread Engine Brake
ST. Engine
181000614/0
21
Elastic Pin
112645710/0
22
Driving Lever
322321700/0
23
Belt Protection
122060171/0
24
Screw
112728686/0
25
Heat protection
122484070/0
31
Fairlead
118564520/1
33
Clamp
322806521/0
34
Screw
112769616/0
35
Cable Rear Drive
381000704/0
36
Driving Lever
322321701/0
