Spare parts > STIGA > Lawn Mower > COLLECTOR 43 S COLLECTOR 43 S (2006) [12-2334-62] > Transmission
Back to

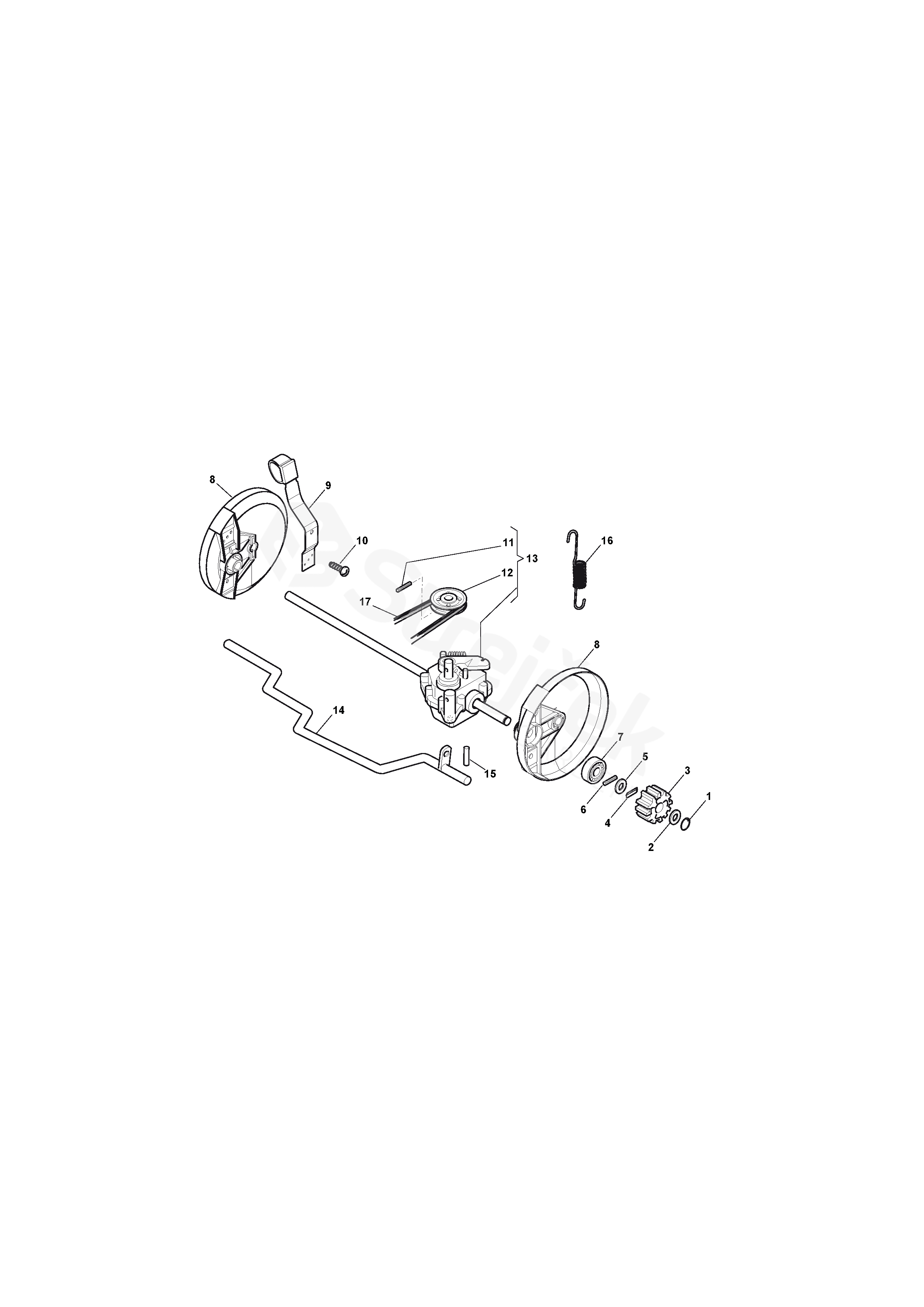

Transmission
COLLECTOR 43 S COLLECTOR 43 S (2006) [12-2334-62]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 43 S (2006) [12-2334-62]
1 Seeger 112608520/0
2 Dust Cover Disc 322160520/0
3 Pinion 122570125/0
4 Key 122076645/0
6 Pin 112622620/0
7 Bearing 122122202/0
8 Protection, Wheel 322600106/1
9 Lever, Height Adjustment 381003303/0
10 Screw 112728689/0
11 Elastic Pin
ø5X32 		112645705/0
12 Pulley 122601909/0
13 Gear Box F.R. 181003078/0
14 Rear Wheel Axle 122033393/0
15 Pin 122753001/0
16 Tension Spring 122430216/0
17 Trapezoidal Belt 135063800/0
