Spare parts > STIGA > Lawn Mower > TURBO 550S 4-SPEED TURBO 550S 4-SPEED (1996) [12-9231-11] > Handlebar
Back to

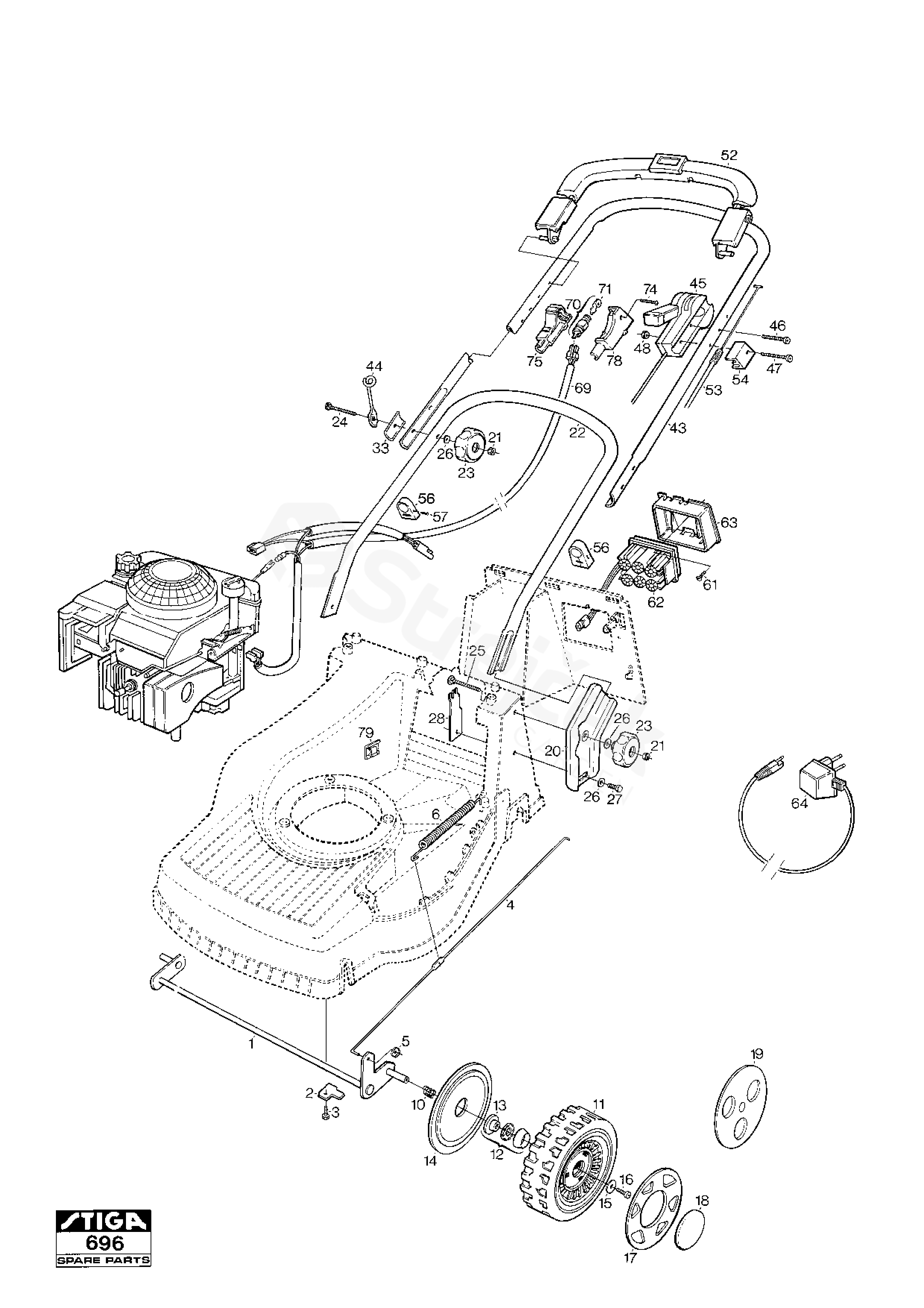

Handlebar
TURBO 550S 4-SPEED TURBO 550S 4-SPEED (1996) [12-9231-11]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 550S 4-SPEED (1996) [12-9231-11]
1 Axle, Front Wheels 1111-2805-02
2 Clamp 1111-1504-01
3 Screw 9947-0616-16
4 Rod, Height Adjustment 1111-3031-01
5 Starlock 9675-0011-00
6 Spring 1111-2819-01
10 Spring-Wheel Axle 1111-1138-01
11 Wheel 1111-2784-01
12 Ball Bearing 1111-9047-01
13 Outer Ring 1111-1184-01
14 Wheel Cover 1111-2785-01
15 Flat washer 9699-0100-02
16 Screw 9943-0612-16
17 Hub Cap Yellow 1111-2657-01
18 Wheel Cup 1111-2675-01
19 Hub Cap (White)
12-9622-61,9221-91 		1111-2804-03
20 Handlebar Attachment 1111-3021-01
21 Nut 9795-3531-02
22 Handlebar-lower part 1111-3022-01
23 Locking Knob 1111-3023-01
24 Screw
57 MM 		9899-3557-12
25 Screw
45 MM 		9899-3545-12
26 Washer 9699-0028-02
27 Screw 9939-0820-16
28 Attachment plate 1111-3024-01
33 Reinforcement 1111-0178-00
43 Handlebar Upper Part 1111-2957-01
44 Eyelink 1111-3062-01
45 Throttle Cable 1111-2611-09
46 Screw
45 MM 		9948-0645-16
47 Screw
60 MM 		9948-0660-16
48 Lock Nut 9747-0631-02
52 Control Handle (Eng.Brake 1111-2953-01
53 Cable, Thread Engine Brake 1111-2968-02
54 Cable Holder 1111-2969-01
56 Cable Holder 1111-2018-01
57 Screw 9836-9216-12
61 Screw 9836-9512-12
62 Battery 9400-0218-00
63 Battery Holder 1111-2927-01
64 Charger 9400-0219-00
69 Harness 1111-2825-01
70 Starting Switch 9400-0186-00
71 Ignition Key 1134-2848-01
74 Screw 9838-9522-12
75 Cover 1111-2705-01
78 Housing 1111-2707-01
79 Cable Holder 9401-0200-00
