Spare parts - Partlist - SILENT 45 EL DE LUXE SILENT 45 EL DE LUXE (1999) - 1500W

Everything for your machines

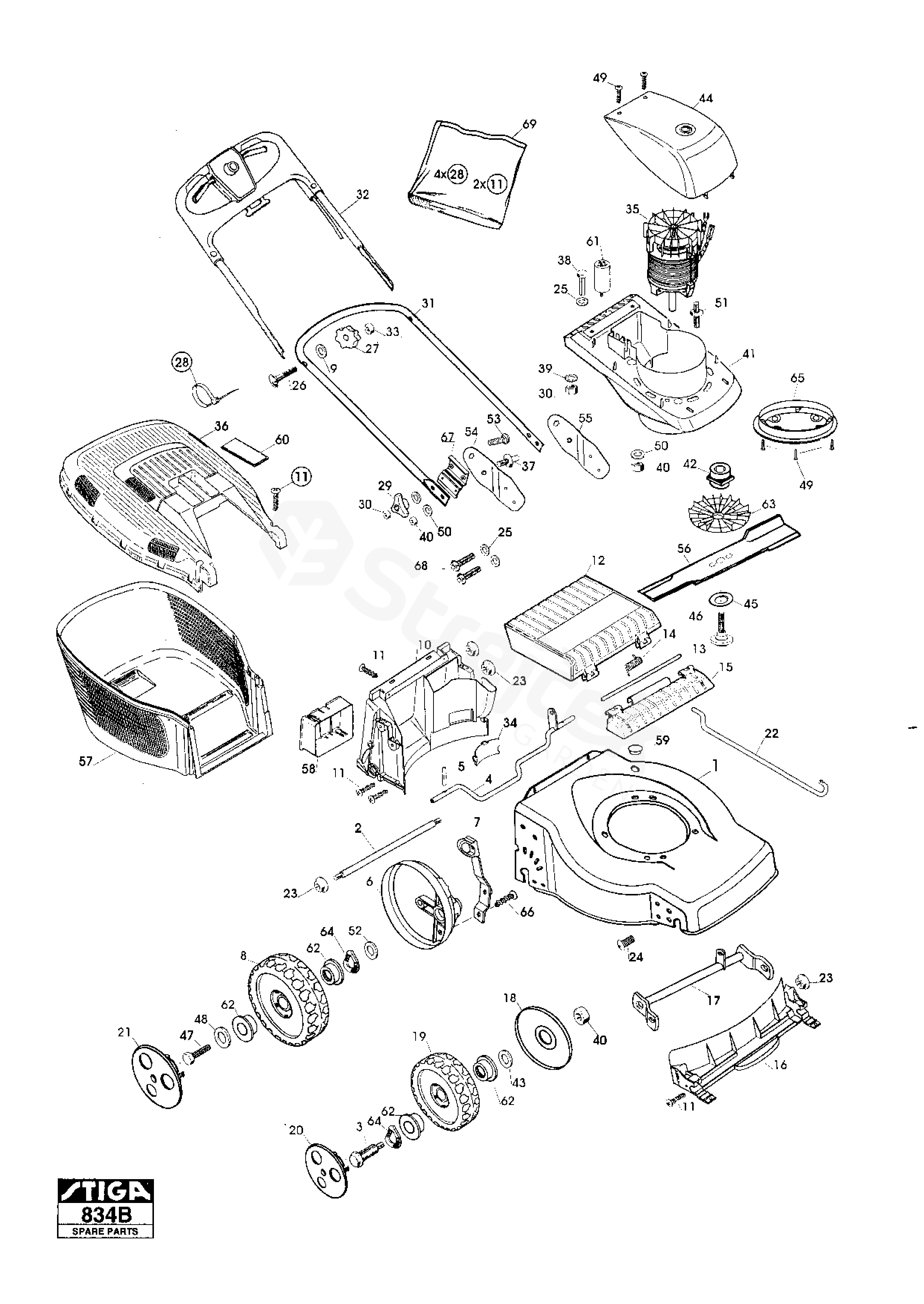

SILENT 45 EL DE LUXE SILENT 45 EL DE LUXE (1999)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SILENT 45 EL DE LUXE (1999)

1	Silver Deck 794 509	1117-1308-03
2	Reinforcement	1117-1159-01
3	Wheel Bolt	1111-3164-01
4	Shaft-Backside	1117-1173-01
5	Locating Pin	9595-0212-00
6	Wheel Cover	1117-1304-01
7	Lever, Height Adjustment	1117-1174-01
8	Wheel	1111-3238-01
9	Washer	9699-0025-02
10	Baffle-rear	1117-1146-01
11	Screw	9836-9516-12
12	Flap (Blue Ral5005) 794 509	1117-1156-06
13	Shaft For Rear Flap	1117-1143-01
14	Spring-Rear Flap	1117-1126-01
15	Rear Flap Holder (Black) 794 509	1117-1155-02
16	Baffle-front	1117-1145-01
17	Front Shaft	1117-1334-01
18	Protection, Wheel	1117-1161-01
19	Wheel	1111-3163-01
20	Hub Cap (175) Blue 794 509	1111-3084-05
21	Hub Cap 794 509	1111-2815-01
22	Connection Rod	1117-1130-01
23	Nut	1117-1131-01
24	Screw	9865-0816-16
25	Washer	9699-0028-02
26	Screw	9899-3551-12
27	Locking Knob	1111-3023-01
28	Cable Holder	9579-0008-00
29	Knob	1117-1108-01
30	Nut	9799-0831-02
31	Handlebar-lower part	1117-1311-01
32	Handlebar-Upper Part	1117-1343-01
33	Nut	9795-3531-02
34	Cap	1117-1148-01
35	Electric Motor 1500 W _ 794 509	1117-1368-01
36	Grassbag-Upper (Blue Ral5005) Inkl. pos 60 _ 794 509	1117-1157-06
37	Bolt	1117-1267-01
38	Screw M8 x 20 _ 794 509	9997-0820-16
39	Lock washer	9678-0009-02
40	Nut	9716-0831-02
41	Motor Mount (Yellow) 794 509	1117-1165-01
42	Blade mount	1117-1151-01
43	Washer	9699-0078-02
44	Motor Cover (Black) 794 509	1117-1305-01
45	Disc Washer	1117-1111-01
46	Blade Bolt	1117-1169-01
47	Screw	9997-0614-16
48	Washer	1117-1175-01
49	Screw	9836-9116-12
50	Washer	9699-0062-02
51	Bolt	1117-1112-01
52	Washer	9699-0036-02
53	Screw	9898-0835-12
54	Handle Support, Right	1117-1310-01
55	Handle Support, Left	1117-1309-01
56	Blade 794 509	1117-1260-01
57	Lower Grass Bag (Black)	1117-1218-01
58	Battery Holder	1111-2927-01
59	Cap	1117-1119-01
60	Cap For Grassbag-Yellow	1117-1135-01
61	Condensor (20 Uf) 20 µF _ 794 509	9400-0224-00
62	Ball Bearing	9549-0053-00
63	Impeller	1117-1299-01
64	Washer	9694-0003-00
65	Motor Protection	1117-1212-01
66	Screw	9836-9512-12
67	Isolation	1117-1192-01
68	Bolt	1117-1364-01
69	Assy Kit	1117-3028-01
