VILLA 9E VILLA 9E (1995) [13-2855-18]
>
Lifting Device
Back to
VILLA 9E
VILLA 9E (1995) [13-2855-18]
Lifting Device
VILLA 9E
VILLA 9E (1995) [13-2855-18]

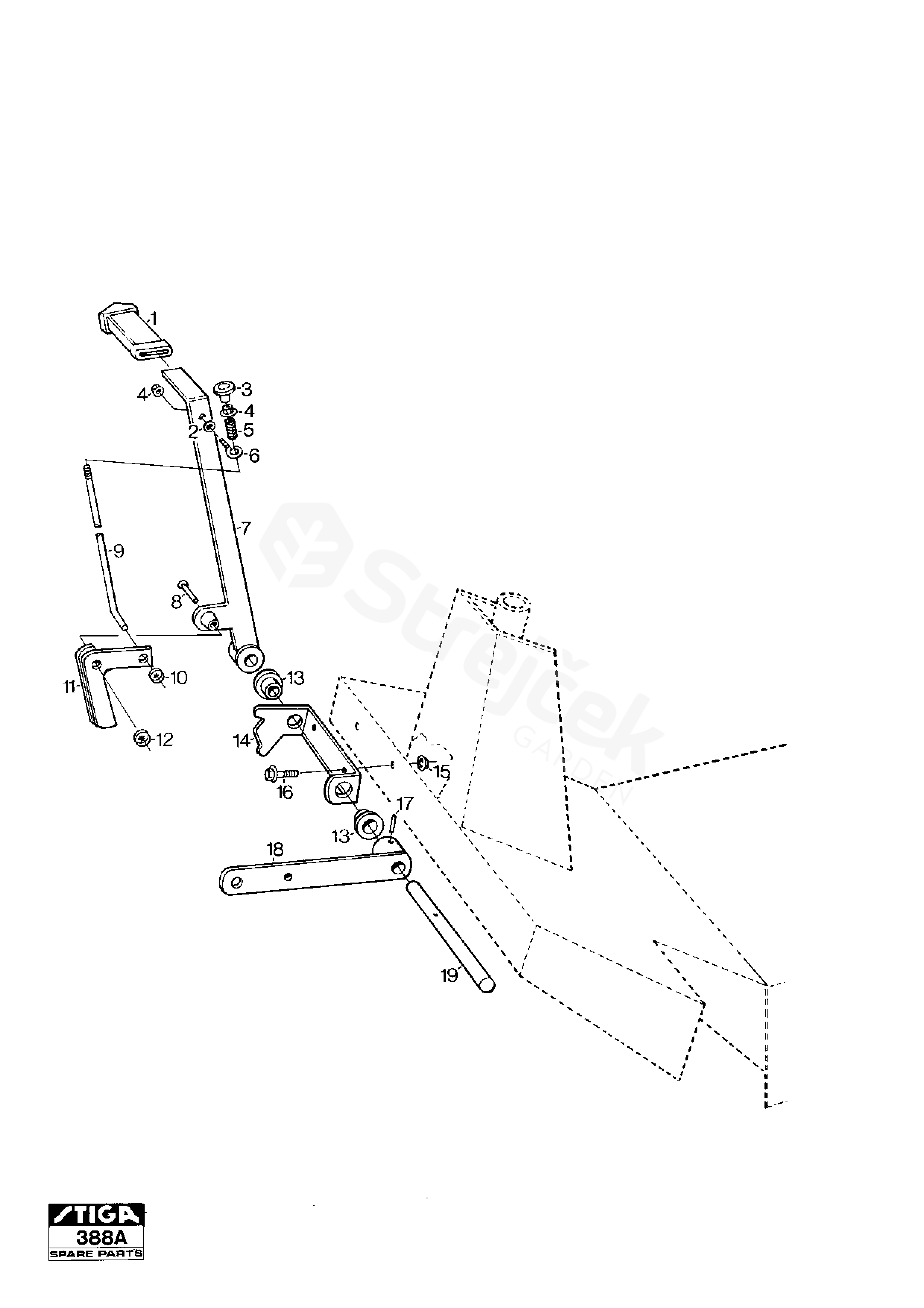

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
VILLA 9E (1995) [13-2855-18]
1
Handle
9403-0110-01
2
Washer
9699-0025-02
3
Knob
1134-0583-00
4
Nut
9739-0631-22
5
Spring
1111-0053-00
6
Eye Bolt
1134-1889-01
7
Bar
1134-0859-03
8
Rivet
9646-0099-22
9
Push rod
1134-0858-00
10
Starlock
9675-0008-02
11
Locking Pawl
1134-2911-01
12
Locking washer
9675-0012-02
13
Bearing
1134-2684-01
14
Locking Plate
1134-0536-00
15
Nut
9739-1031-22
16
Screw
9959-1020-16
17
Locating Pin
9595-0258-00
18
Trippet
1134-1604-01
19
Lifting Shaft
1134-1884-01
