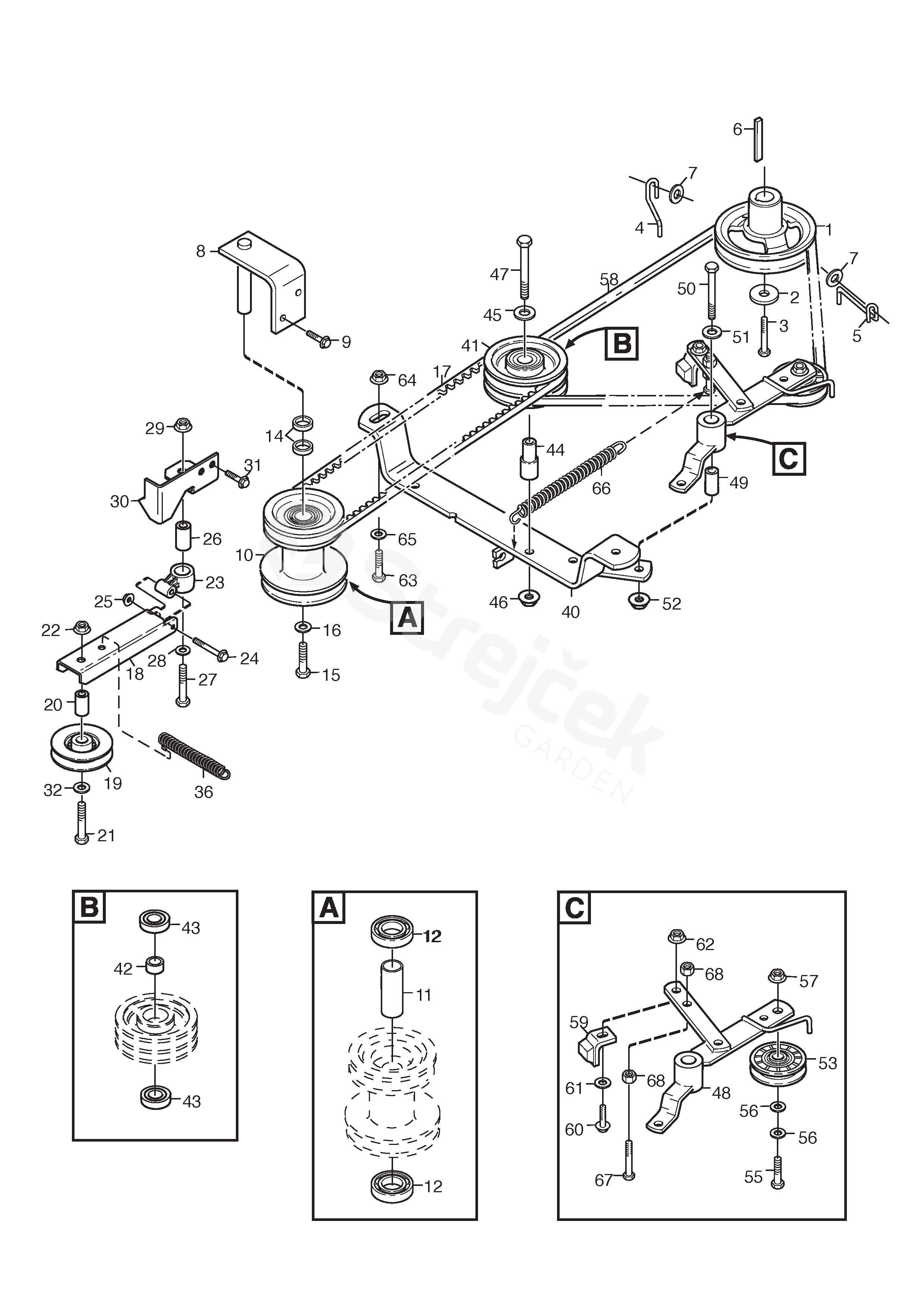

Spare parts - Partlist - VILLA 12 VILLA 12 (2014) [13-2725-35] - Power take-off

Everything for your machines

VILLA 12 VILLA 12 (2014) [13-2725-35]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For VILLA 12 (2014) [13-2725-35]

1	Engine Pulley	1137-0081-01
2	Washer	1134-5017-01
3	Screw	9987-5332-16
4	Belt Guide	1134-5058-01
5	Belt Guide	1134-5057-01
6	Key L = 2 1/2"	9600-0251-01
8	Pulley Bracket	1134-4650-01
10	Intermediate Belt Pulley Inkl. pos 11-12	1137-0003-01
11	Spacer	1134-0051-12
12	Ball Bearing	9549-0019-00
14	Spacer	1134-0052-00
15	Screw	9997-1040-16
16	Washer	9699-0035-02
17	Drive Belt 9585-0139-01	1134-9079-01
18	Tension Arm	1134-5231-01
19	Tension Roller Assy	1134-6329-01
20	Spacer	1134-4619-01
21	Screw	9997-1060-12
22	Lock Nut	9747-1031-02
23	Tension Arm Attachment	1134-6314-01
24	Screw	9997-0640-12
25	Lock Nut	9747-0631-02
27	Screw	9930-1050-12
30	Bracket	1134-4708-02
31	Screw	9945-0816-16
36	Spring	1131-1507-00
40	Mounting Bracket (Black)	1134-5037-01
41	Centtre Pulley Assy Inkl. pos 42-43	1137-0004-01
42	Spacer	1134-0051-09
44	Shaft	1134-1839-02
46	Nut	9739-1031-22
47	Screw	9997-1070-12
48	Tension Arm Assy	1137-0144-01
49	Spacer	1134-1565-10
50	Screw	9997-0860-12
51	Washer	9699-0056-02
52	Nut	9739-0831-22
53	Tension Roller (Grey)	1134-9027-02
55	Screw	9997-1035-16
58	V-Belt 9585-0204-01	1134-9146-01
59	Brake Pad	1134-4164-03
60	Screw	9959-0820-16
61	Washer	9699-0090-02
62	Nut	9747-0831-02
66	Spring	1131-1506-00
