Spare parts > STIGA > Front Mowers > READY AMBIANCE HST READY AMBIANCE HST (2008) > Seat
Back to

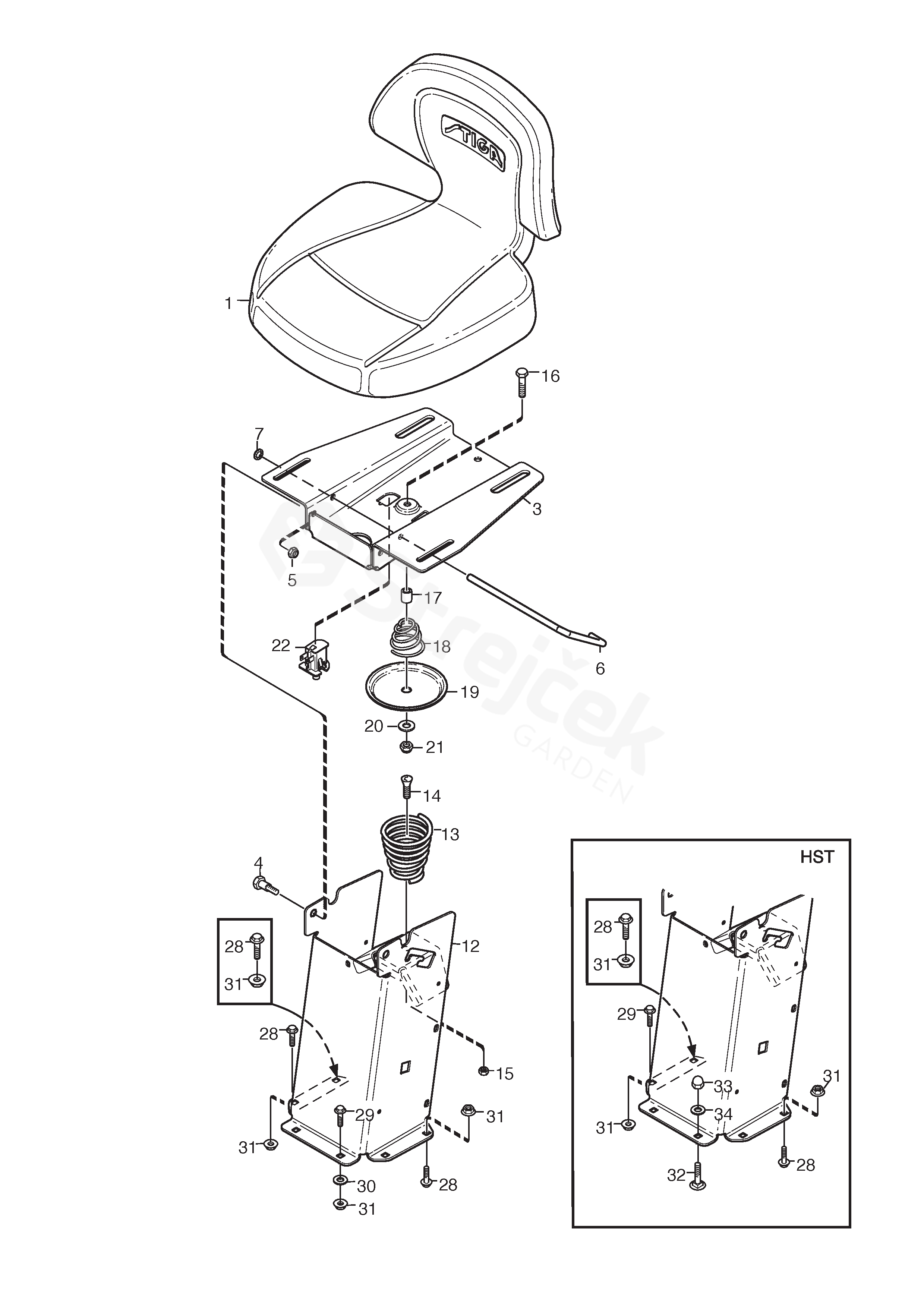

Seat
READY AMBIANCE HST READY AMBIANCE HST (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For READY AMBIANCE HST (2008)
1 Seat Stiga 1134-5506-01
3 Upper Seat Bracket 1134-5301-01
4 Screw 1134-0240-00
6 Catch 1134-5454-01
7 Locking washer 9675-0012-02
12 Seat Bracket (Yellow) 1134-5296-04
13 Spring 1134-4256-01
14 Screw 9924-1235-19
15 Nut 9747-1231-02
16 Screw 9997-0840-16
17 Spacer 1134-1565-06
18 Spring 1134-5302-01
19 Push Plate 1134-5299-01
20 Washer 9699-0090-02
21 Nut 9747-0831-02
22 Switch 1134-3156-02
28 Screw
L = 20 mm 		9959-0820-16
29 Screw
L = 25 mm 		9959-0825-16
31 Nut 9739-0831-22
32 Screw 9897-0820-16
33 Nut 9757-0821-02
34 Washer 9699-0028-02
