PARK POWER PARK POWER (2003)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK POWER (2003)

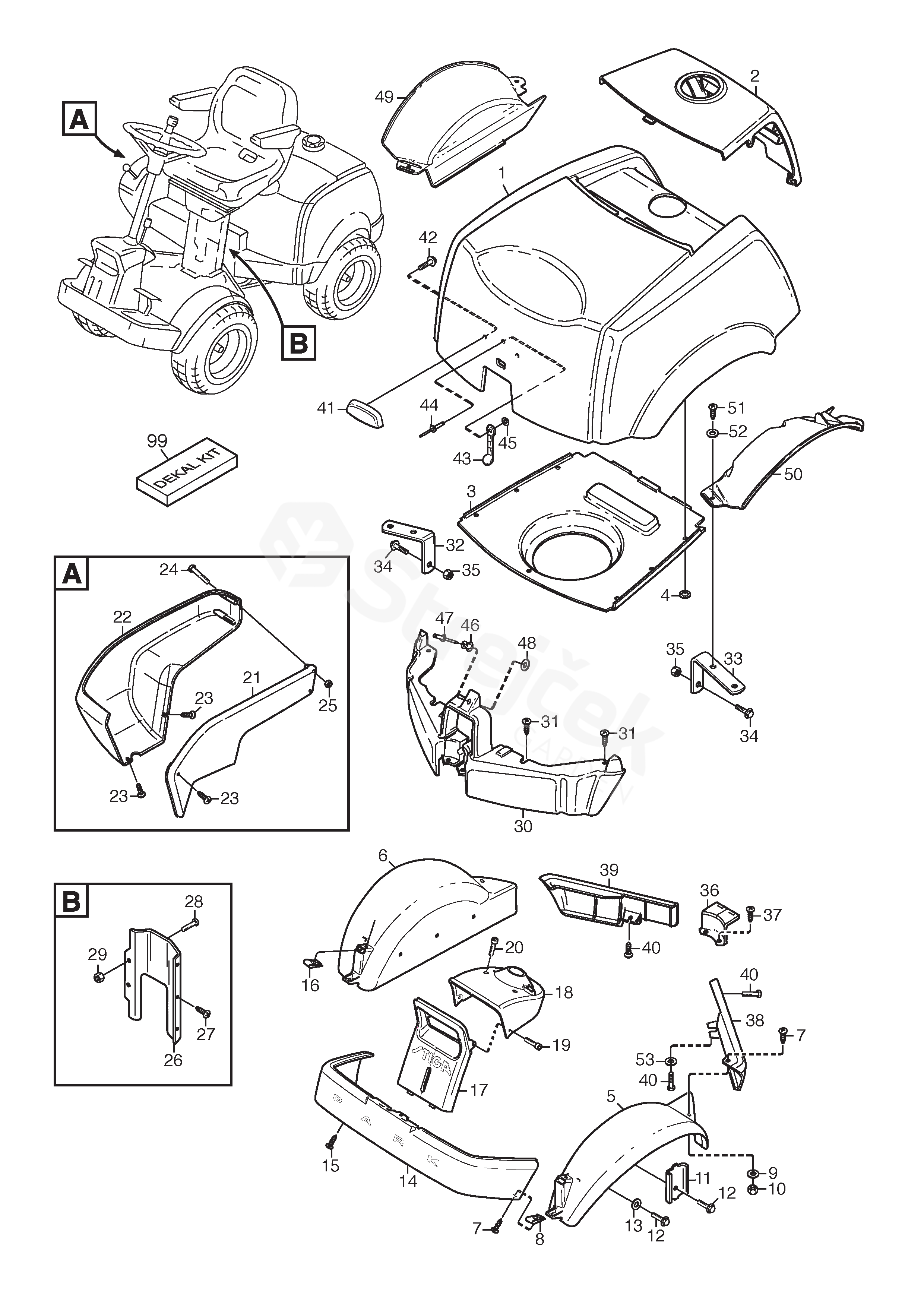

1	Engine Hood	1134-4797-01
2	Engine Cover-Black	1134-3971-02
3	Air Duct Plate	1134-3978-02
4	Starlock	9675-0008-02
5	Mud Guard-Left	1134-3943-01
6	Mud Guard-Right	1134-3943-02
9	Washer	9699-0025-02
10	Lock Nut	9747-0631-02
11	Support Plate	1134-0225-00
12	Screw	9945-0816-16
13	Washer	9699-0056-02
14	Front Bumper-Yellow	1134-3944-02
15	Screw	9893-0616-16
16	Clips	1134-4176-01
17	Front Plate-Black (W/O Hole)	1134-4216-03
18	Upper Front Plate-Black	1134-3984-02
19	Screw	9840-8009-16
20	Screw	9946-0525-16
21	Cover-Inner	1134-4360-01
22	Cover-Outer	1134-3979-01
24	Screw	9950-0570-12
25	Nut	9747-0531-02
26	Cover	1134-4152-01
29	Nut	9739-0631-22
30	Spoiler-Black	1134-4798-02
32	Support, Right	1134-4012-03
33	Support, Left	1134-4012-04
34	Screw L = 16 mm	9959-0816-16
35	Nut	9739-0831-22
36	Cover	1134-3985-01
41	Handle (Black)	1134-4799-02
42	Screw	9838-9516-12
43	Rubber Strap (3 Pcs) Sats 3 st/kit of 3	1134-9028-01
44	Pop Rivet	9632-0516-00
45	Washer	9699-0120-02
46	Knob	9405-0029-00
47	Pop Rivet	9632-0513-00
49	Inner Mud Guard-Rh (Park)	1134-4800-01
50	Inner Mud Guard-Lh (Park)	1134-4801-01
52	Washer	9699-0060-02
99	Label Kit Senator	1134-4593-01
