Spare parts > STIGA > Front Mowers > PARK 16HST PRO PARK 16HST PRO (1996) [13-1458-19] > Engine Brake
Back to

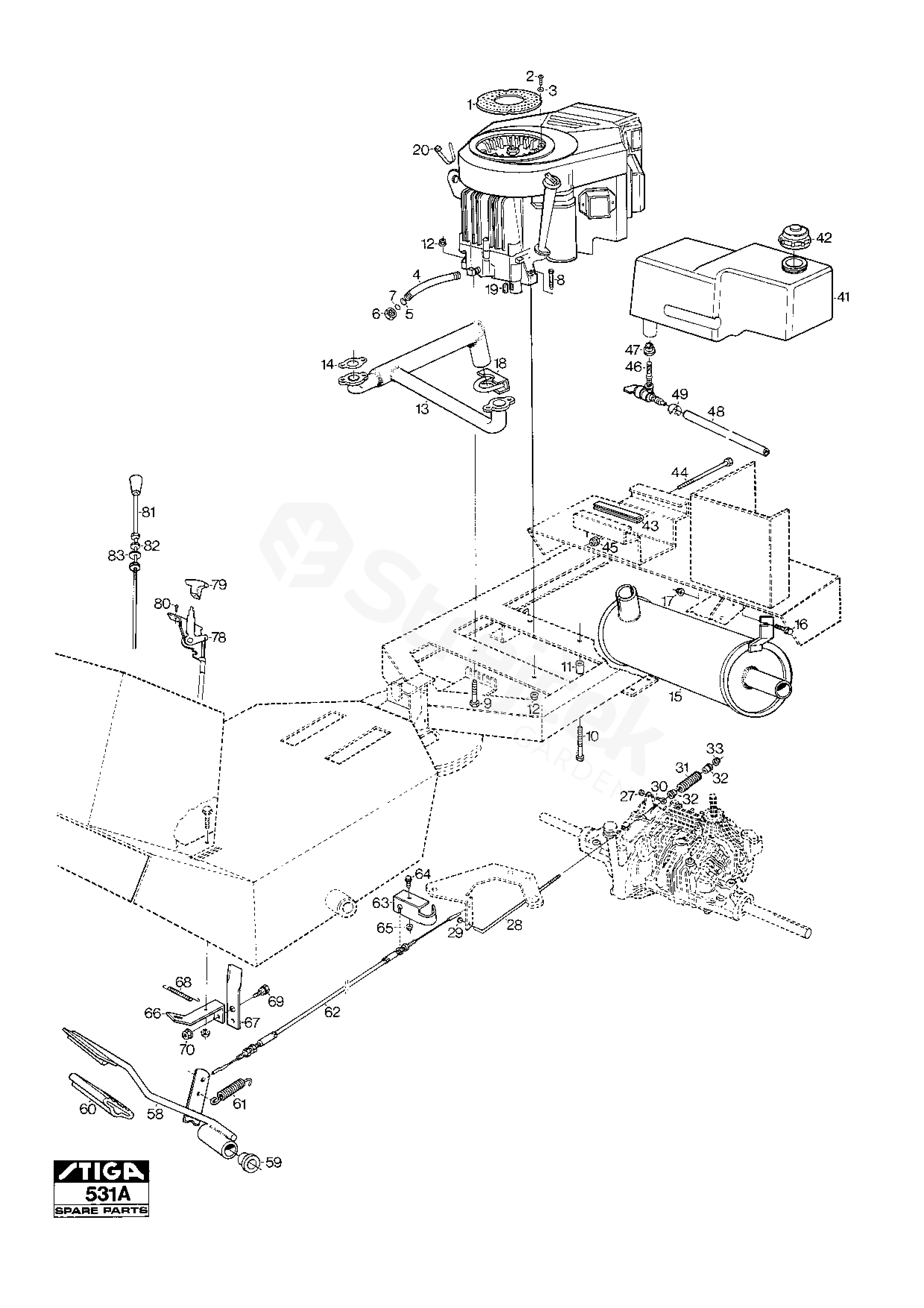

Engine Brake
PARK 16HST PRO PARK 16HST PRO (1996) [13-1458-19]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 16HST PRO (1996) [13-1458-19]
1 Fan cover 1134-2878-01
2 Screw 9997-0512-16
3 Washer 9699-0099-02
4 Oil Drain Pipe 1134-3355-01
5 Gasket 1134-0997-01
6 Plug 1134-0995-01
7 O-Ring 9404-0020-00
8 Screw
40 mm 		9997-0840-16
10 Screw
65 mm 		9997-0865-12
11 Spacer 1134-3380-01
12 Nut 9739-0831-22
13 Exhaust Pipe 1134-3455-01
14 Gasket-Exhaust 1134-2988-01
15 Silencer 1134-3244-01
16 Screw 9959-0816-16
18 Clamp 9578-0011-00
19 Key 9600-0250-00
20 Cable Holder 9579-0003-00
27 Lock Nut 9747-0631-02
28 Control Rod 1134-3377-01
29 Starlock 9675-0008-02
30 Eye Bolt 1134-1889-01
31 Brake Spring 1134-1023-00
32 Bushing 1134-3456-01
41 Fuel Tank 1134-3593-01
42 Fuel Tank Cap 1134-2877-02
43 Protection Strip 1134-2941-01
44 Screw 9997-0812-02
45 Nut 9747-0831-02
46 Fuel Shut-Off Valve 1134-3224-01
47 Grommet 1134-3225-01
48 Fuel Line
L = 710 mm 		1134-2975-04
49 Hose clamp 1134-3499-01
58 Brake pedal (L. H.) 1134-3450-01
59 Bearing 1134-9024-01
60 Pedal Rubber 1134-0269-00
61 Spring 1131-1506-00
62 Wire 1134-3584-01
63 Attachment 1134-3387-01
66 Stay 1134-1184-02
67 Stop 1134-2151-02
68 Brake Spring 1131-1497-01
69 Screw 1134-0245-00
78 Throttle Cable 1134-1975-10
79 Knob 9403-0035-10
80 Screw 9849-8013-16
81 Choke Control 1134-2872-01
82 Washer
8.4 x 16 x 1.5 mm 		9699-0028-02
83 Washer
8.4 x 22 x 1.5 mm 		9699-0062-02
