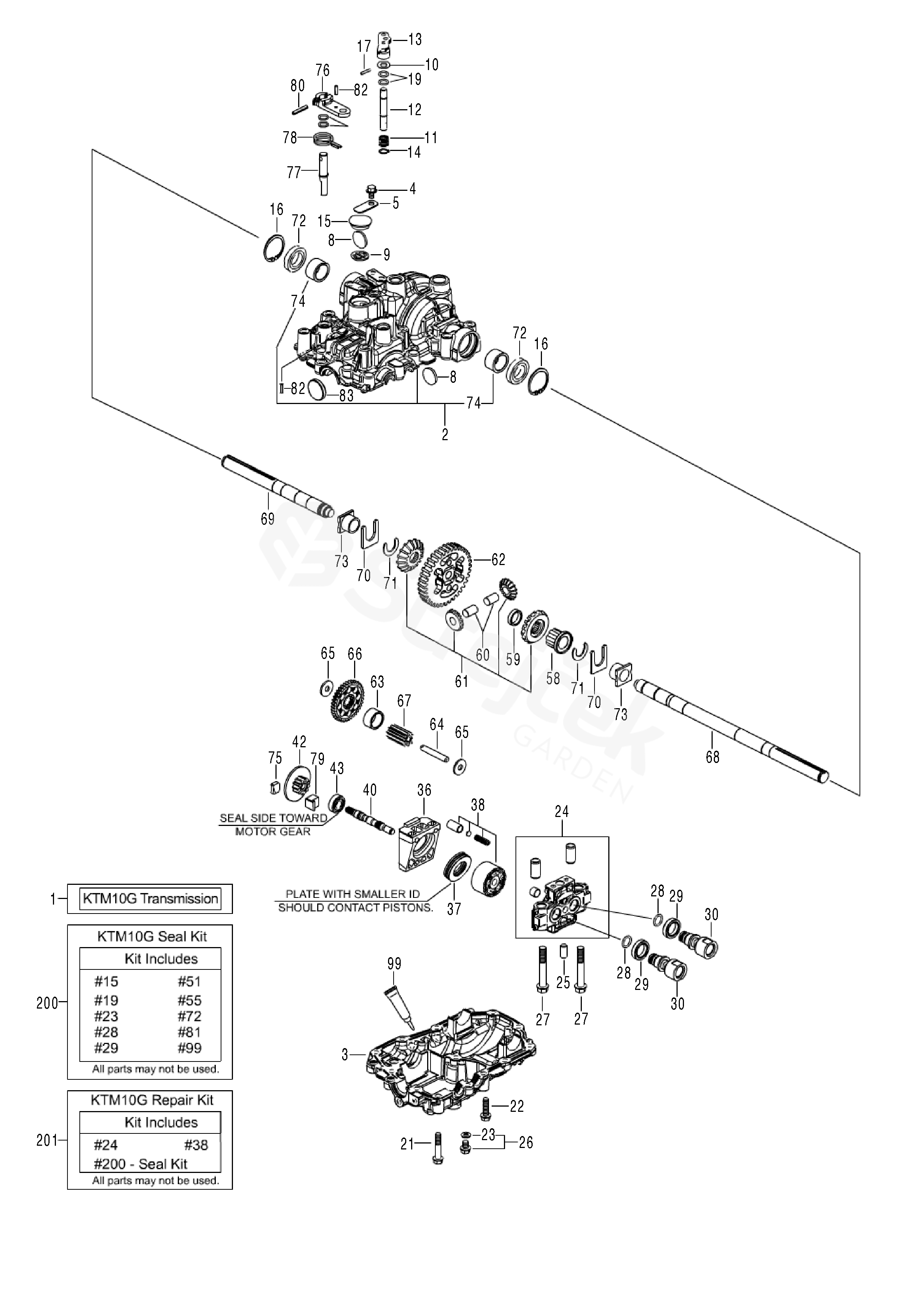

PARK PRO 16 4WD PARK PRO 16 4WD (2008) [13-6241-14]
>
Transmission
Back to
PARK PRO 16 4WD
PARK PRO 16 4WD (2008) [13-6241-14]
Transmission
PARK PRO 16 4WD
PARK PRO 16 4WD (2008) [13-6241-14]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 16 4WD (2008) [13-6241-14]
1
Rear Motor Unit (Ktm10G)
Kanzaki KTM 10G _ KTM10G
1134-5701-01
2
Housing-Upper
Inkl. pos 74 _ KTM10G
1139-1416-01
3
Housing-Lower
KTM10G
1139-1418-01
4
Bolt
KTM10G
1139-1123-01
5
Vent Port Plate
KTM10G
1139-1383-01
8
Magnet
KTM10G
1139-1150-01
9
Magnet Holder
KTM10G
1139-1341-01
10
Washer
KTM10G
1139-1388-01
11
Spring
KTM10G
1139-1421-01
12
By-Pass Shaft
KTM10G
1139-1420-01
13
By-Pass Lever
KTM10G
1139-1189-01
14
Ring
KTM10G
1139-1391-01
15
Sealing Cap
KTM10G
1139-1397-01
16
Ring
KTM10G
1139-1444-01
17
Pin
KTM10G
1139-1280-01
19
O-Ring
KTM10G
1139-1114-01
21
Bolt
KTM10G
1139-1291-01
22
Bolt
KTM10G
1139-1448-01
23
Washer
KTM10G
1139-1103-01
24
Center Case
KTM10G
1139-1419-01
25
Pin
KTM10G
1139-1445-01
26
Drain Bolt Kit
KTM10G
1139-1500-01
27
Bolt
KTM10G
1139-1449-01
28
Packing
KTM10G
1139-1446-01
29
Seal
KTM10G
1139-1447-01
30
Connector
KTM10G
1139-1423-01
36
Motor housing
KTM10G
1139-1504-01
37
Bearing
KTM10G
1139-1438-01
38
Cylinder Block Kit
KTM10G
1139-1509-01
40
Motor Shaft
KTM10G
1139-1425-01
42
Motor Gear
KTM10G
1139-1442-01
43
Bearing
KTM10G
1139-1453-01
58
Collar
KTM10G
1139-1531-01
59
Collar, Axle
KTM10G
1139-1435-01
60
Pin
KTM10G
1139-1440-01
61
Differential gear kit
KTM10G
1139-1439-01
62
Final Gear
KTM10G
1139-1429-01
63
Collar
KTM10G
1139-1427-01
64
Reduction Shaft
KTM10G
1139-1256-01
65
Washer
KTM10G
1139-1398-01
66
Reduction Gear
KTM10G
1139-1441-01
67
Final Pinion Gear
KTM10G
1139-1361-01
68
Axle
KTM10G
1139-1434-01
69
Axle
KTM10G
1139-1433-01
70
Thrust Washer
KTM10G
1139-1194-01
71
Ring
KTM10G
1139-1155-01
72
Seal 25.4*42*8
KTM10G
1139-1044-01
73
Bushing
KTM10G
1139-1156-01
74
Bushing
KTM10G
1139-1415-01
75
Brake Shoe
KTM10G
1139-1260-01
76
Brake Arm
KTM10G
1139-1261-01
77
Brake Shaft
KTM10G
1139-1320-01
78
Return Spring
KTM10G
1139-1263-01
79
Brake Actuator
KTM10G
1139-1264-01
80
Pin
KTM10G
1139-1282-01
82
Pin
KTM10G
1139-1281-01
83
Sealing Cap
KTM10G
1139-1450-01
99
Sealant (Tube)
KTM10G
1139-1443-01
200
Seal Kit
KTM10G
1139-1437-01
