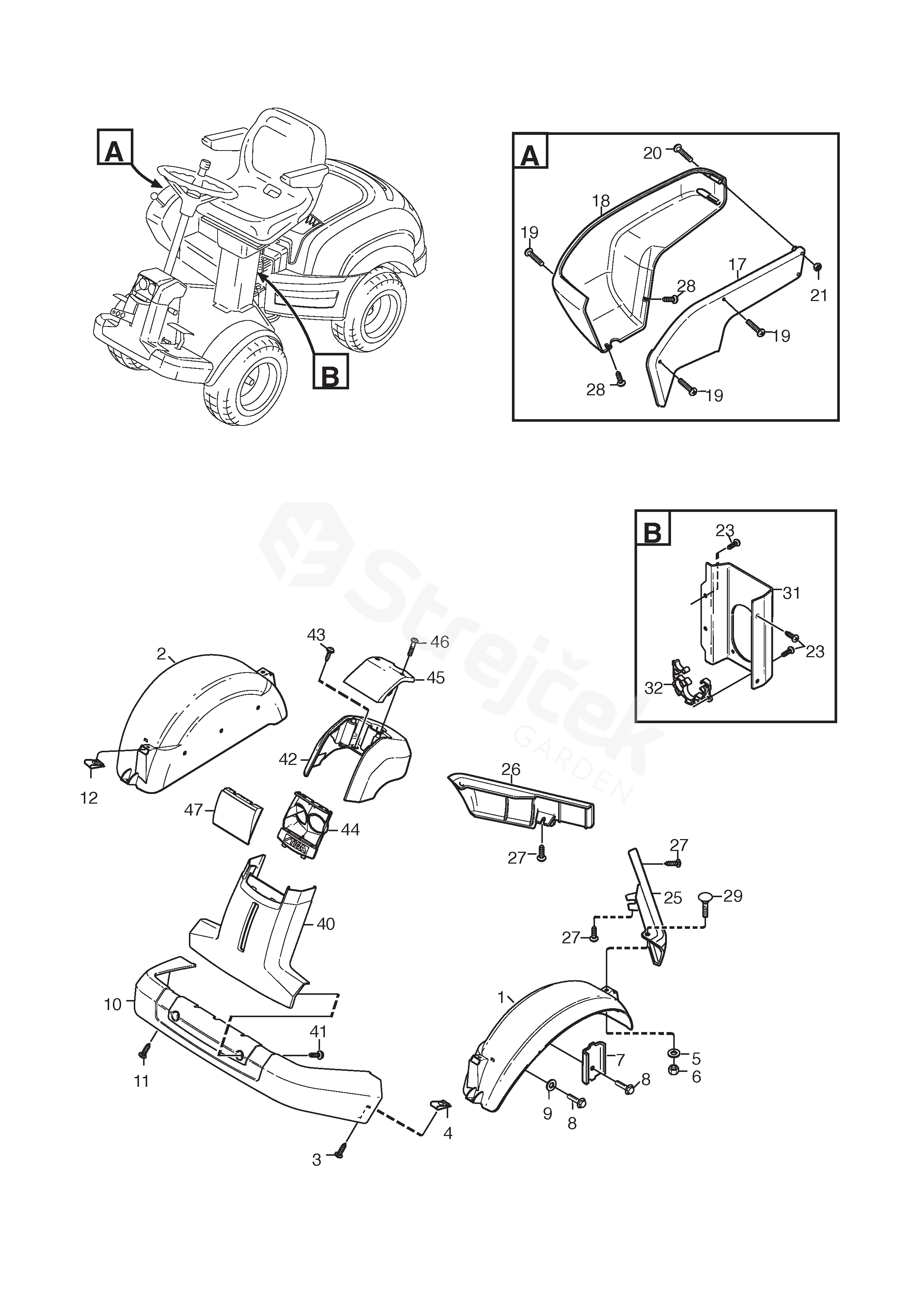

PARK PRO 25 4WD PARK PRO 25 4WD (2012)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK PRO 25 4WD (2012)

4/17 Electric system

1	Mud Guard, Front-Lh	1137-0048-01
2	Mud Guard, Front-Rh	1137-0048-02
3	Screw	9893-0616-16
4	Clips	1134-4176-01
5	Washer	9699-0060-02
6	Lock Nut	9747-0631-02
7	Support Plate	1137-0088-01
8	Screw	9945-0816-16
9	Washer	9699-0056-02
10	Front Bumper	1137-0049-01
11	Screw	9893-0616-16
12	Clips	1134-4176-01
17	Cover-Inner	1134-4360-01
18	Cover-Outer	1134-3979-01
19	Screw	9946-0525-16
20	Screw	9950-0570-12
21	Nut	9747-0531-02
23	Screw	9893-0616-16
25	Moulding-Left (Grey)	1134-3970-05
26	Moulding Right-Grey	1134-3970-02
27	Screw	9893-0616-16
28	Screw	9840-8013-16
29	Screw	9897-0616-16
31	Rear Plate	1137-0061-01
32	Tube Collector	1137-0065-01
40	Front Panel-Lower	1137-0050-01
41	Screw	9838-9516-12
42	Front Panel-Upper	1137-0051-01
43	Screw	9946-0525-16
44	Lamp Holder	1137-0052-01
45	Top Panel	1137-0053-01
46	Screw	9838-9516-12
47	Lamp Glass	1137-0054-01
