Spare parts - Partlist - ESTATE PRESIDENT ESTATE PRESIDENT (2004) [13-2532-14] - Steering

Everything for your machines

ESTATE PRESIDENT ESTATE PRESIDENT (2004) [13-2532-14]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ESTATE PRESIDENT (2004) [13-2532-14]

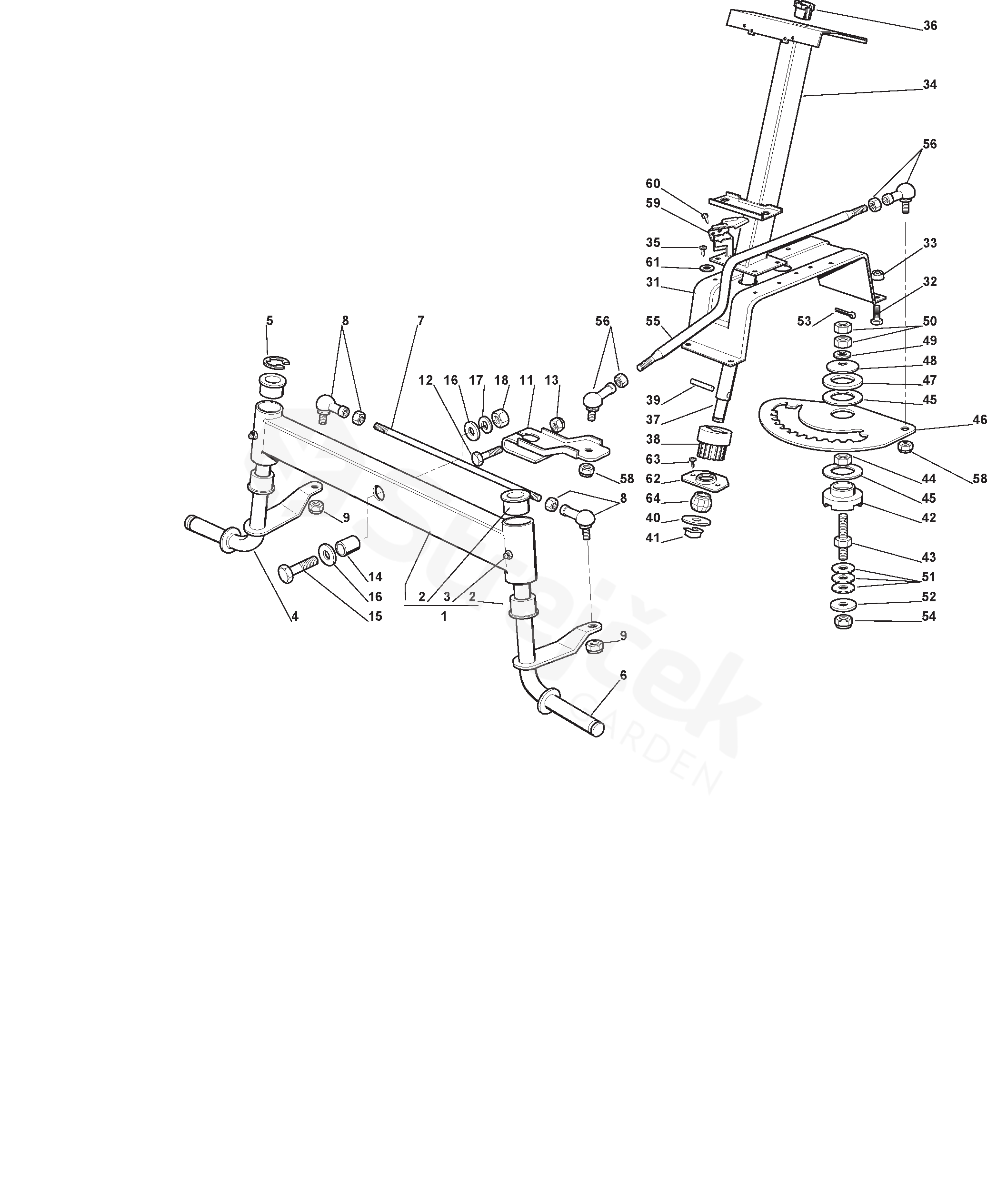

1	Equalizer With Bush And Lubricator	182034008/0
2	Bushing	125034002/1
3	Grease Dispenser	112379511/0
4	Right Stub Axle	382230355/0
5	Benzing Ring	112001000/0
6	Left Stub Axle	382230357/0
7	Tie Rod	125840006/0
11	Steering Control Lever	325318142/0
12	Screw	112692390/0
13	Nut	112156602/0
14	Spacer	125160016/0
15	Screw	112692695/0
16	Washer	112523100/0
17	Grower	112587100/0
18	Nut	112295300/0
31	Support	325785101/0
32	Screw	112792611/0
33	Nut	112155000/0
34	Support	382785135/0
35	Screw	112735120/0
36	Bushing	325038004/0
37	Steering Column	125520004/0
38	Pinion	125570000/2
39	Dowel pin	112622650/0
40	Washer	112521370/0
41	Plate	112436030/0
42	Bushing	125040617/0
43	Pin	125510065/1
44	Nut	112295200/0
45	Washer	325670012/0
46	Steering Sector	325735507/0
47	Washer	325670014/0
48	Elastic Disc	122160400/0
49	Washer	112521360/0
51	Antifriction Washer	322672150/0
52	Washer	112523080/0
53	Cotter Pin	112141418/0
55	Steering Rod	125033025/0
56	Joint	122746600/0
59	Micro Protection	325600036/0
60	Screw	112727810/0
61	Washer	112521330/0
62	Teering Joint Support	325785213/0
63	Screw	112729601/0
64	Joint	325743000/0
