Spare parts > STIGA > Lawn Tractor > ESTATE SENATOR B&S P.B. s4165 AVS ESTATE SENATOR B&S P.B. s4165 AVS (2013) > Cutting Plate Lifting
Back to

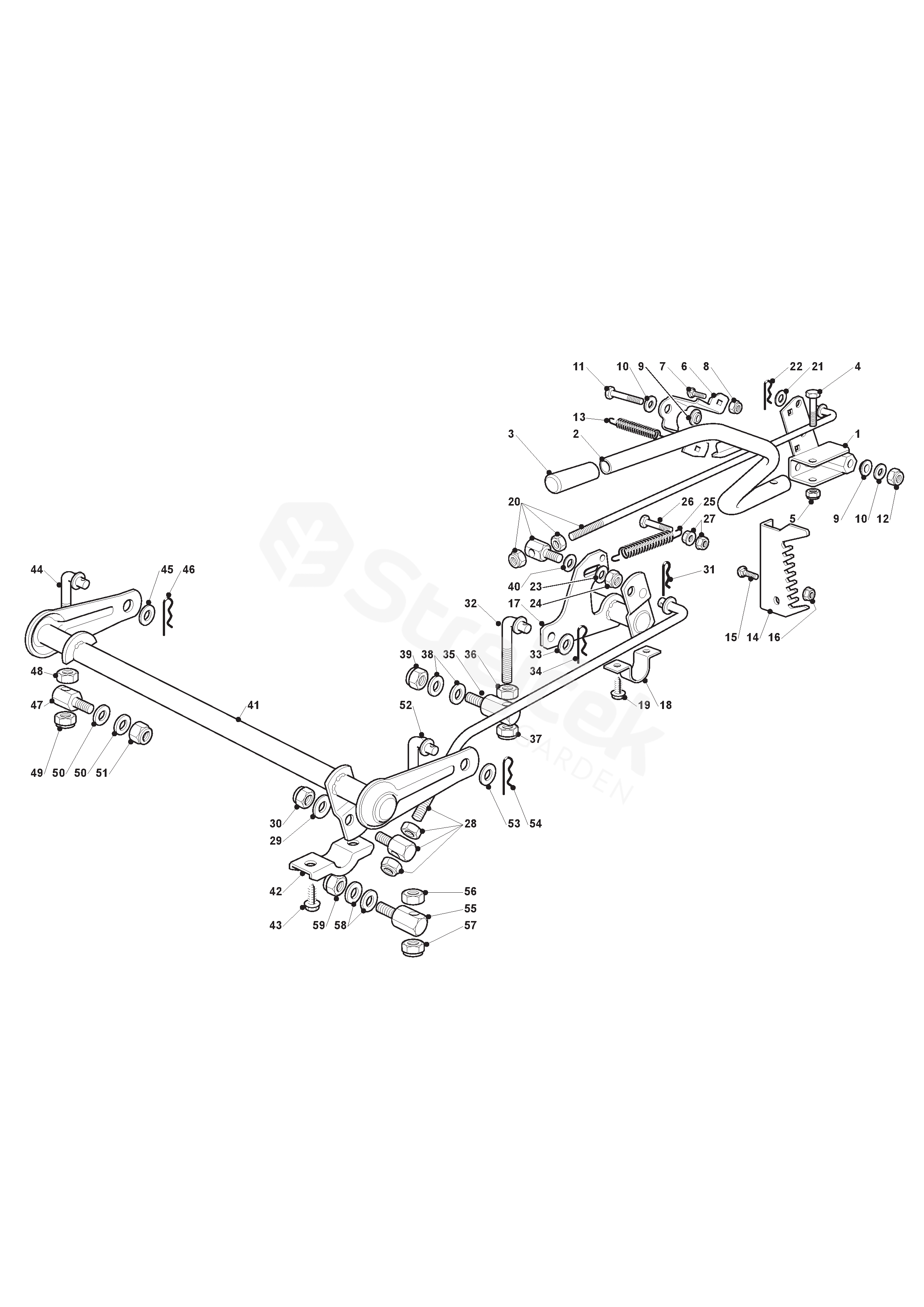

Cutting Plate Lifting
ESTATE SENATOR B&S P.B. s4165 AVS ESTATE SENATOR B&S P.B. s4165 AVS (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE SENATOR B&S P.B. s4165 AVS (2013)
1 Clamp 382774249/0
2 Lever 382318219/1
3 Knob 325394535/0
4 Screw 112674700/0
5 Nut 112154510/0
6 Plate 325650113/0
9 Bushing 122041980/0
10 Washer 112523060/0
11 Screw 112691600/0
12 Nut 112155000/0
13 Spring 125430259/0
14 Sector 325735511/0
15 Screw 112818690/0
16 Nut 112293201/0
17 Axle 382000387/0
18 Plate 325547041/1
19 Screw 112731580/0
20 Rod 382000618/0
21 Antifriction Washer 325670011/0
22 Cotter Pin 124487997/0
23 Washer 112523040/0
24 Nut 112154210/0
25 Spring 122446402/1
26 Screw 112792410/0
27 Nut 112292102/0
28 Connecting Rod 382000537/0
29 Washer 325670008/1
30 Nut 112156602/0
32 Tie Rod 125840025/0
35 Pin 125510090/0
36 Nut 112295200/0
40 Washer 112521360/0
41 Axle 382000385/0
42 Plate 327546015/2
43 Screw 112731350/0
44 Tie Rod 125840024/0
47 Pin 125510098/0
