Spare parts > STIGA > Lawn Tractor > ESTATE 7122 HWS ESTATE 7122 HWS (2018) > Grasscatcher
Back to

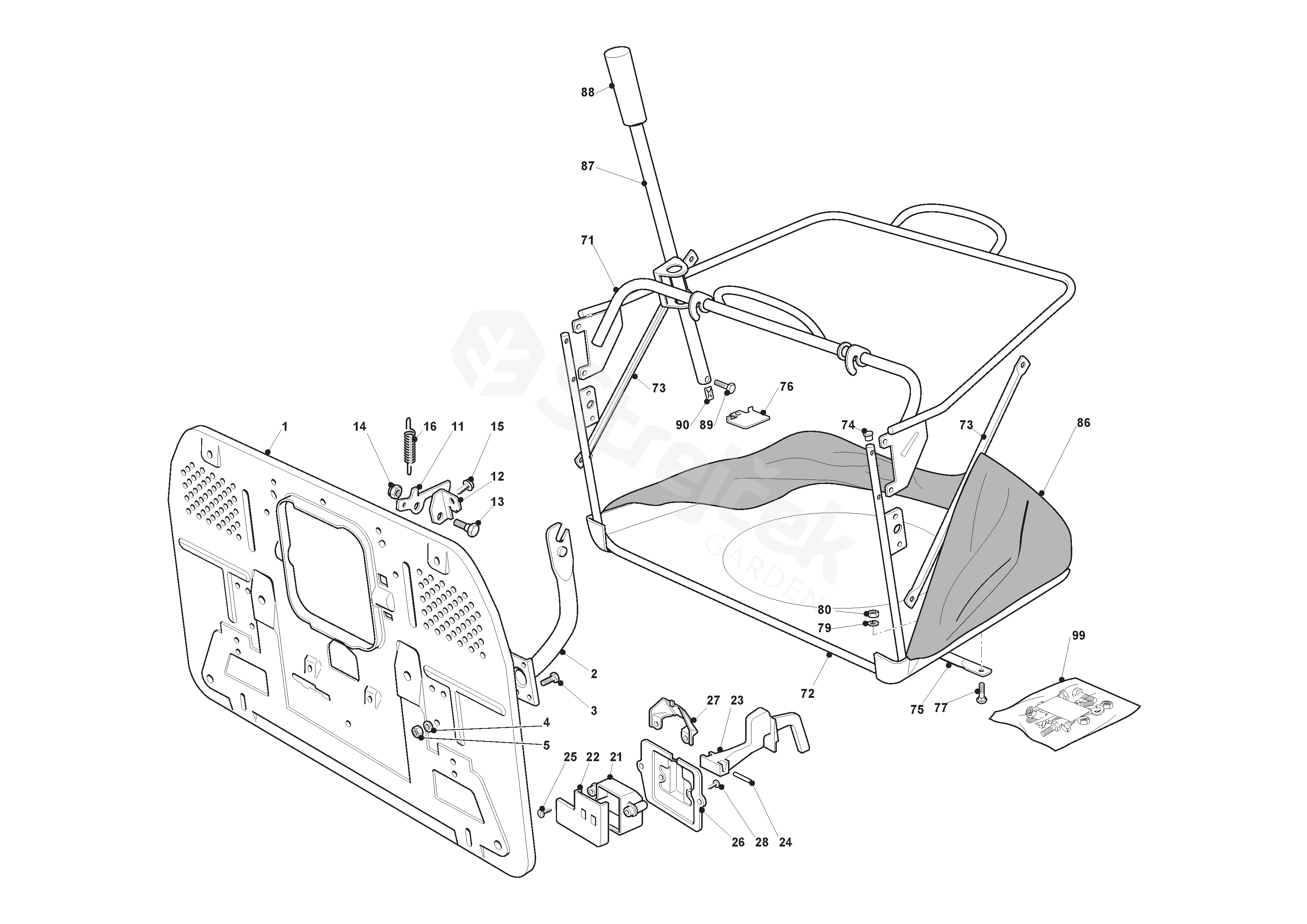

Grasscatcher
ESTATE 7122 HWS ESTATE 7122 HWS (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE 7122 HWS (2018)
1 Rear Plate 382547053/1
2 Clamp 182774225/1
3 Screw 112793102/0
4 Washer 112523060/0
5 Nut 112293201/0
11 Bracket 325774315/1
12 Bracket 325755031/2
13 Pin 125510080/2
14 Nut 112292102/0
15 Screw 112735661/0
16 Brake Spring 125430210/1
21 Grassc.Full Micro Protection Tcj-F 125600041/0
22 Grasscatcher Micro Prot Cover 125600042/0
23 Full Grassc. Microswtich Cover 125318124/0
24 Pin 112400030/0
25 Screw 112728510/0
26 Micro Protection 325785272/1
27 Empty Micro Grassc.Protection Cover 125600048/0
28 Screw 112728450/0
71 Upper Frame 382800123/1
72 Upper Frame 382800091/1
73 Stiffening 325650117/0
74 Push rod 118566110/0
75 Lower Stiffening 382650043/0
76 Plate 325547131/0
77 Screw 112815210/0
79 Washer 112521330/0
80 Nut 112154510/0
86 Grasscatcher 182105933/0
87 Grasscatcher Lifting Tube 125869029/1
88 Knob 125394508/0
89 Screw 112788800/0
90 Nut 112157000/0
99 Outfit, Screws 382180110/0
