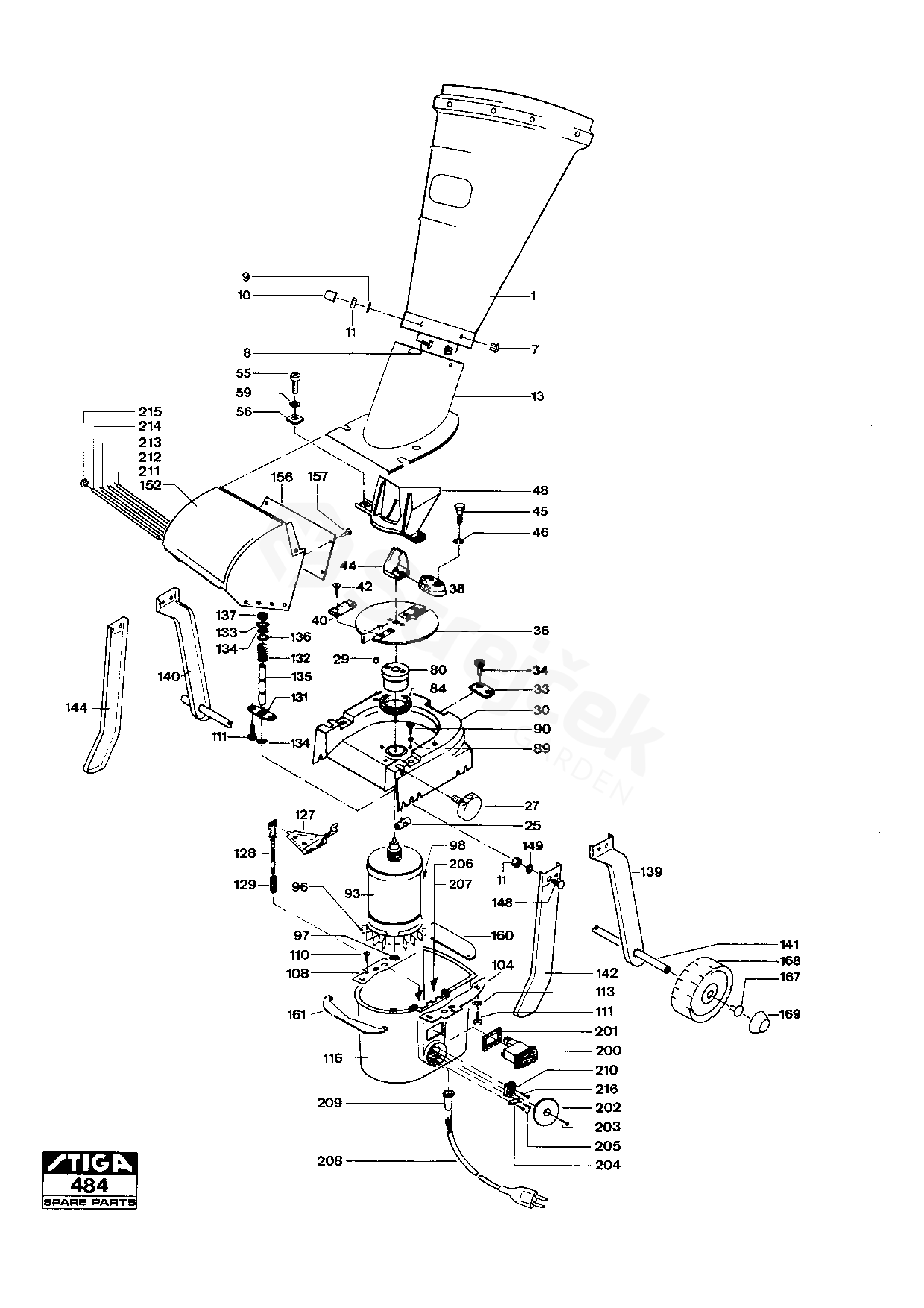

BIO STAR BIO STAR (1994) [17-1531-22]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BIO STAR (1994) [17-1531-22]

1	Splinter guard	1715-0040-01
7	Snip & snap rivet	1715-0042-01
8	Screw	9898-0620-16
9	Washer	9699-0060-02
10	Cap	1715-0043-01
11	Nut	9799-0631-02
13	Lower part of hopper	1715-0044-01
25	Threaded bolt	1715-0045-01
27	Screw	1715-0046-01
29	Cape typ v	1715-0047-01
30	Driving block	1715-0048-01
33	Hinge plate	1715-0049-01
34	Screw	9941-0616-16
36	Knife Mounting Plate Assy	1715-0086-01
38	Pre-cutter insert	1715-0050-01
40	Blade kit	1715-9001-01
42	Screw	9859-0610-16
44	Pre-Cutter	1715-9004-01
45	Screw	9997-0840-16
46	Washer	9683-0030-02
48	Overarm cutter	1715-0051-01
55	Screw	9936-0825-16
56	Shim	1715-0052-01
80	Adapting bar	1715-0053-01
84	Felt ring	1715-0100-01
89	Washer	1715-0082-01
90	Screw	1715-0055-01
93	Electric Motor VEM	1715-0090-01
96	Fan	1715-0091-01
97	Washer	1715-0093-01
98	Capacitor	1715-0095-01
104	Motor housing fixing	1715-0059-01
108	Motor housing fixing	1715-0063-01
110	Screw	1715-0012-01
111	Screw	9941-0512-16
113	Lock washer	9678-0006-02
116	Motor housing	1715-0070-01
127	Switch Lever	1715-0019-01
128	Switch Plunger	1715-0025-01
129	Spring	1715-0026-01
131	Washer	1715-0072-01
132	Spring	1715-0084-01
133	Washer	9699-0078-02
134	Safety ring	1715-0083-01
135	Switch plunger rod	1715-0073-01
136	Washer	9699-0028-02
137	Felt ring	1715-0074-01
139	Wheel kit Inkl.pos. 140-141	1715-0075-01
142	Leg-right front side	1715-0076-01
144	Leg-left front side	1715-0077-01
148	Screw	9898-0616-16
149	Washer	9699-0025-02
152	Ejection chute	1715-0087-01
156	Back side	1715-0078-01
157	Rivet	1715-0011-01
160	Guard Plate	1715-0079-01
161	Guard plate-front	1715-0080-01
167	Starlock	9672-0004-02
168	Wheel	1715-0035-01
169	Wheel cap	1715-0081-01
200	Switch	1715-0071-01
201	Seal frame	1715-0003-01
202	Lid	1715-0057-01
203	Screw	9849-7832-16
204	Cable Clamp	1715-0058-01
205	Screw	9849-7819-16
206	Flexible pigtail	1715-0060-01
207	Earthing pigtail	1715-0061-01
208	Connection w/plug	1715-0062-01
209	Casing	1715-0064-01
210	Strip	9400-0042-00
211	Ejection Guard	1715-0065-01
212	Ejection Guard	1715-0066-01
213	Ejection Guard	1715-0067-01
214	Ejection Guard	1715-0068-01
215	Lock washer	9672-0006-02
216	Screw	1715-0069-01
299	Assembly kit Ej ill/not ill.	1715-0099-01
