SRC 685 RG SRC 685 RG (2016)

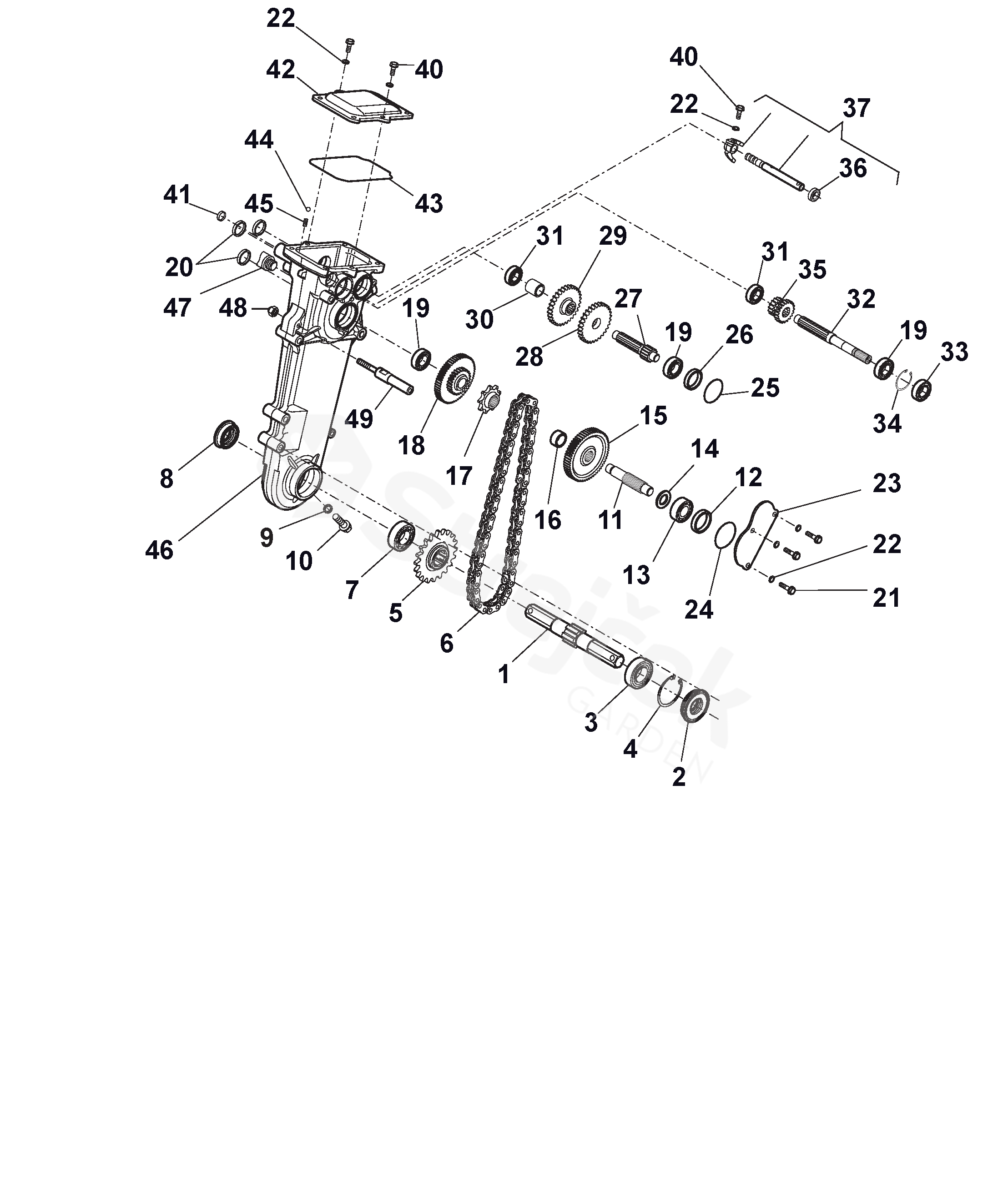

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SRC 685 RG (2016)

1	Drive Shaft	118802776/0
2	Oil seal	118802777/0
3	Bearing	118802779/0
4	Retaining ring	118802778/0
5	Chain Wheel	118802780/0
6	Retarder Chain	118802781/0
7	Bearing	118802782/0
8	Oil seal	118802783/0
9	Flat washer	118802784/0
10	Screw	118802785/0
11	Drive Shaft	118802786/0
12	Bushing	118802787/0
13	Bearing	118802788/0
14	Flat washer	118802789/0
15	Gear	118802790/0
16	Bushing	118802791/0
17	Chain Wheel	118802792/0
18	Gear	118802793/0
19	Bearing	118802794/0
20	Plug	118802795/0
21	Screw	112790781/0
22	Grower	112582100/0
23	Baffle	118802796/0
24	Seal Ring	118802797/0
25	Seal Ring	118802798/0
26	Bushing	118802799/0
27	Countershaft	118802800/0
28	Gear	118802801/0
29	Gear	118802802/0
30	Bushing	118802803/0
31	Ball Bearing	3112150
32	Drive Shaft	118802804/0
33	Oil seal	118802805/0
34	Spring	118802806/0
35	Gear	118802807/0
36	Oil seal	118802808/0
37	Fork	118802809/0
40	Screw	112735599/0
41	Plug	118802810/0
42	Cover	118802811/0
43	Seal Ring	118802812/0
44	Ball	118802813/0
45	Spring	118802814/0
46	Transmission Housing	118802815/0
47	Cap Assy, Oil Filter	118802816/0
48	Nut	112155000/0
49	Mandrel	118802821/0
