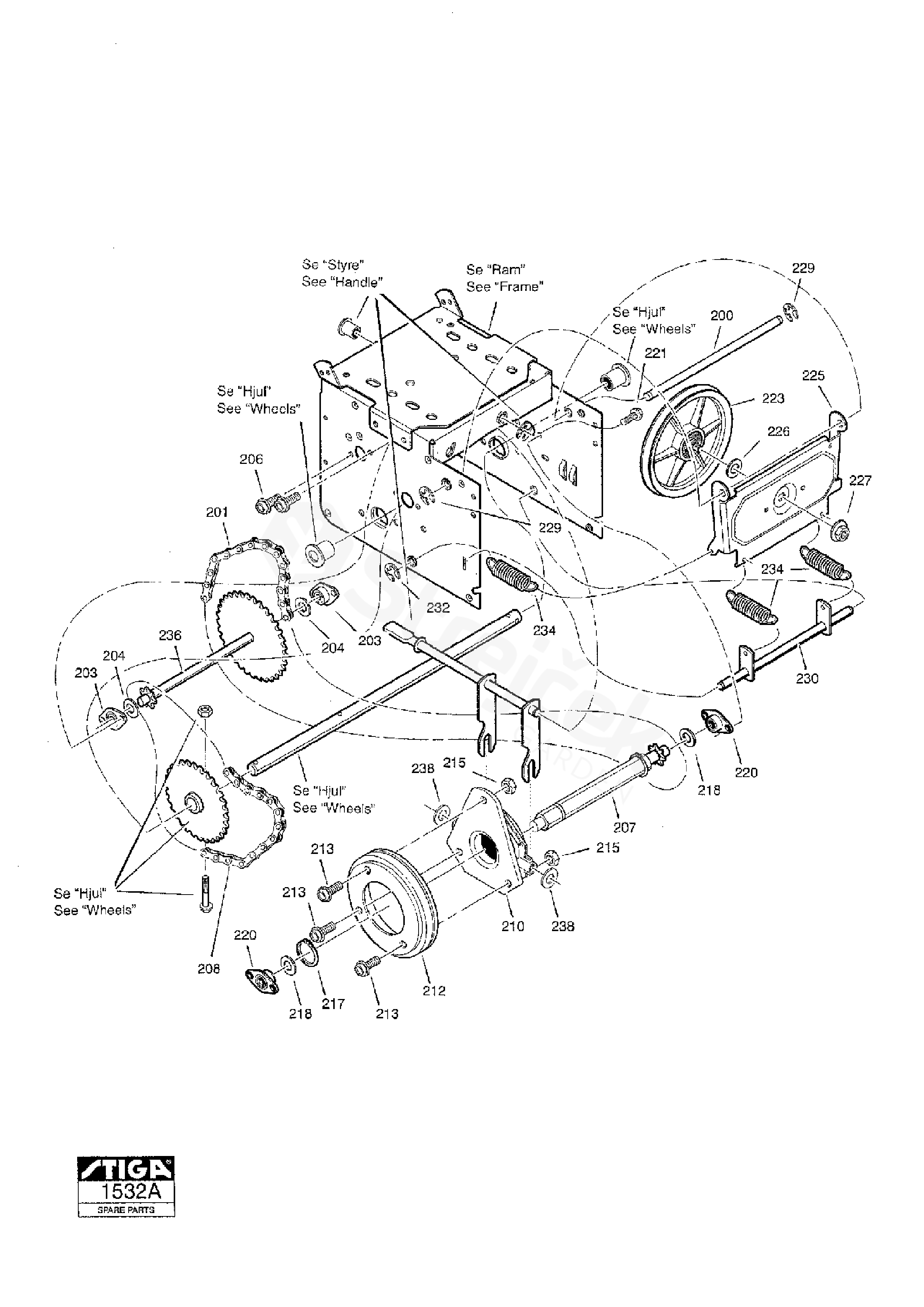

1384 1384 (2005)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 1384 (2005)

200	Axle-Swing Plate	1812-1713-01
201	Chain	1812-1686-01
203	Bearing Retainer Utan lager, w/o bear.	1812-1200-01
204	Washer	1812-1204-01
206	Screw	1812-0385-01
207	Hex Shaft	1812-1714-01
208	Chain	1812-1688-01
210	Trunion Bearing	1812-1313-01
212	Friction Wheel	1812-1817-01
213	Screw	9988-3516-16
215	Nut	9795-3531-02
217	Retext Ring	1812-1687-01
223	Friction Pulley	1812-1725-01
225	Swing Plate	1812-1701-01
226	Spacer	1812-1739-01
227	Nut	1812-1674-01
229	Retainer ring	1812-1672-01
230	Spring Link	1812-1718-01
234	Spring	1812-1675-01
236	Intermed. Sprocket 33T/7T	1812-1715-01
238	Washer	9699-0038-02
