Spare parts
Everything for your machines
Transmission

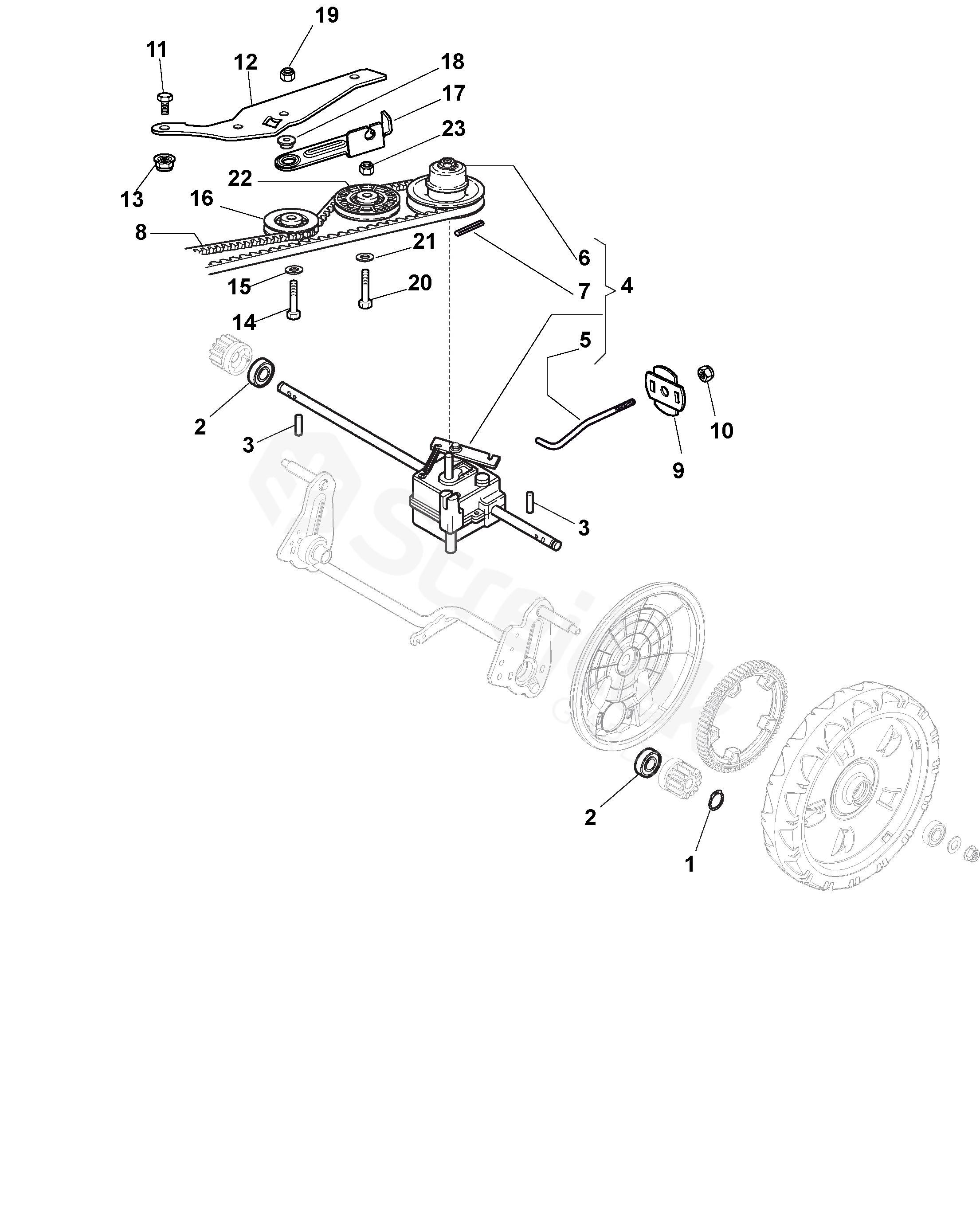

BL 510 VHQ BL 510 VHQ (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BL 510 VHQ (2018)
1 Seeger 112608600/0
2 Bearing 119216035/0
3 Pin 122753000/0
4 Gear Box 181003096/3
5 Adjustment Rod 122033285/0
6 Pulley 122601932/0
7 Elastic Pin
ø5X32
112645705/0
8 V-Belt
Stiga Packed into 135064010/0
1111-9164-01
9 Washer 322675113/0
10 Nut 112154510/0
11 Screw 112791011/0
12 Support 322806625/2
13 Nut 112292102/0
14 Screw 112689500/0
15 Washer 112523050/0
16 Pulley 122601915/0
17 Pulley Support 322806623/0
18 Washer 122671656/0
20 Screw 112674700/0
22 Pulley 122601914/0
