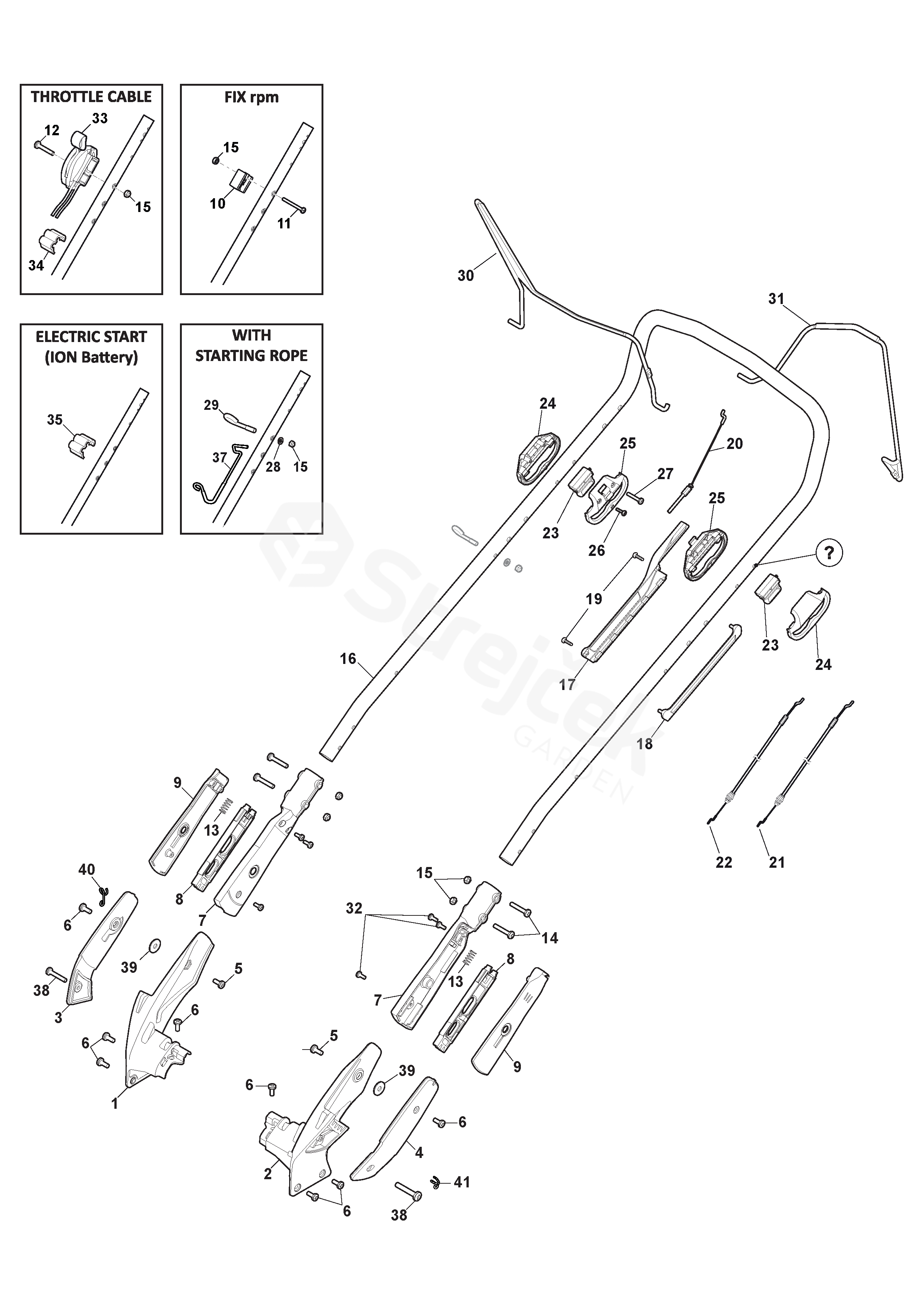

Spare parts - Partlist - SP505 V SC SP505 V SC (2020) - Handle

Everything for your machines

SP505 V SC SP505 V SC (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SP505 V SC (2020)

1	Right Bracket	381005219/0
2	Left Bracket	381005221/0
3	Cover, Right	381005223/0
4	Cover, Left	381005225/0
5	Pin	122517885/0
6	Screw	112735664/0
7	Cursor Guide OLD aluminium parts its necessary to supply new version and new version ../1 of handle	381005227/0
8	Cursor	322246106/0
9	Cursor Guide OLD aluminium parts its necessary to supply new version and new version ../1 of handle	381005229/0
10	Cable Holder	322551639/0
11	Screw for FIX rpm	112727784/0
12	Screw for Throttle Cable	112727786/0
13	Spring	125430202/1
14	Screw	112727799/0
15	Nut	112154510/0
16	Handle, Upper Part OLD aluminium parts its necessary to supply new version and new version ../1 of handle	381007578/0
17	Internal Support, Black	322806652/0
18	External Support, Black	322806653/0
19	Screw	112728713/0
20	Cable Com. Cursor. Assy	381030123/0
21	Clutch Cable	381030118/0
22	Cable, Thread Engine Brake	181030070/0
23	Lever, Black	322394544/0
24	External Protection, Black	322722839/0
25	Internal Protection, Black	322722838/0
26	Screw	112728696/0
27	Screw	112728705/0
28	Washer	112521330/0
29	Guide Spring for models without electric start	122430313/0
30	Control Lever	181003490/0
31	Drive Control Lever	181003491/0
32	Screw	112735651/0
33	Throttle Cable	181005541/0
34	Conduit Clip	118390020/0
37	Guide Spring for models without electric start	122430318/0
38	Screw	112735660/0
39	Washer	122675110/0
40	Spring	122430323/0
41	Guide Spring	122430324/0
