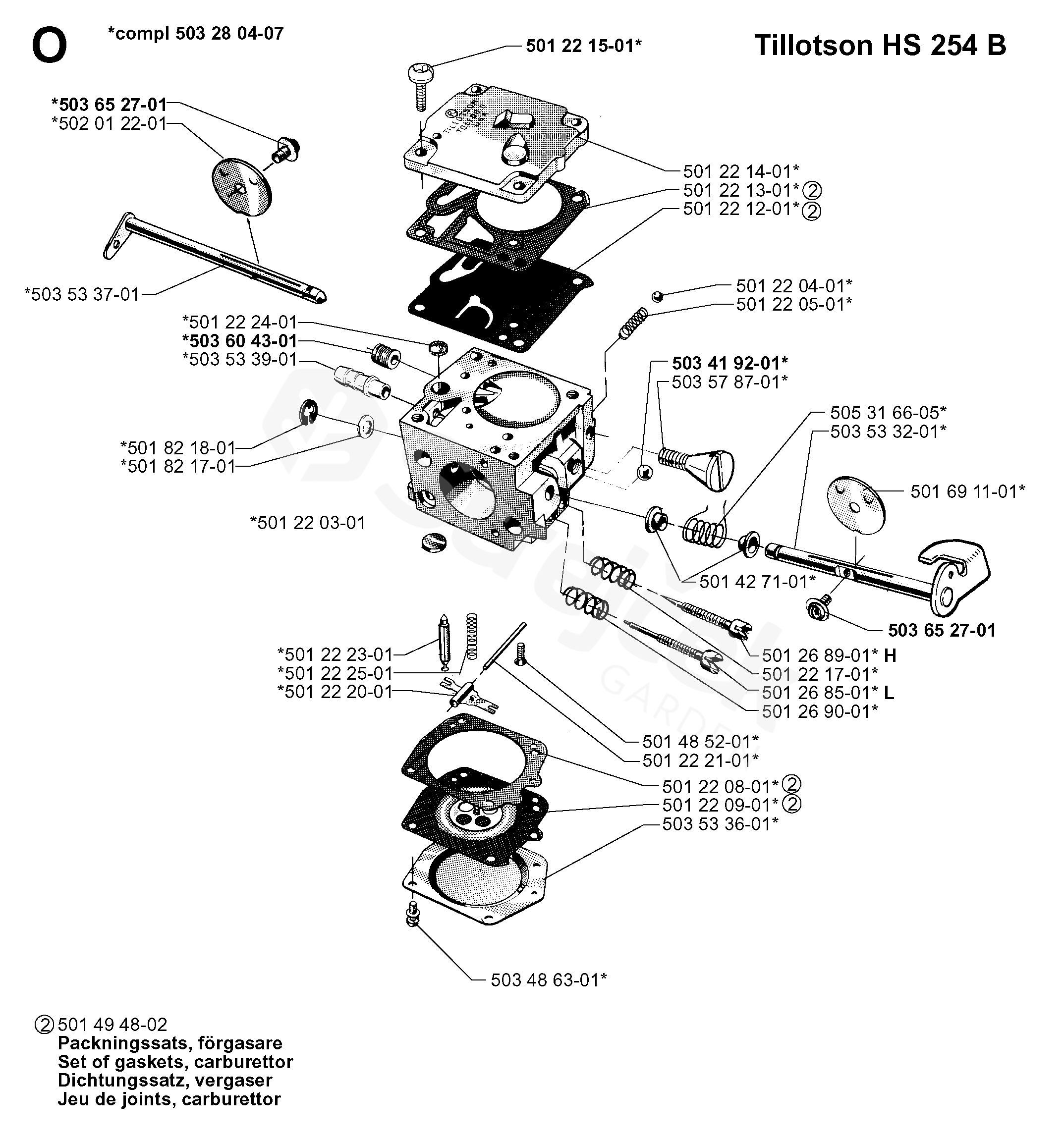

Spare parts - Partlist - 61 61, 1999-08 - CARBURETOR DETAILS

Everything for your machines

61 61, 1999-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 61, 1999-08

501220301	PLUG WELCH	501220301
501220401	CHOKE FRICTION BALL	501220401
501220501	SPRING	501220501
501220801	DIAPHRAGM 501 49 48-02 SET OF GASKETS	501220801
501220901	DIAPHRAGM 501 49 48-02 SET OF GASKETS	501220901
501221201	FUEL PUMP DIAPHRAM 501 49 48-02 SET OF GASKETS	501221201
501221301	FUEL PUMP 501 49 48-02 SET OF GASKETS	501221301
501221401	FUEL PUMP COVER	501221401
501221501	SCREW	501221501
501221701	MIXTURE SCREW SPRING	501221701
501222001	LEVER	501222001
501222101	PIN RETAINING SCREW	501222101
501222301	NEEDLE	501222301
501222401	SCREEN	501222401
501222501	SPRING	501222501
501268501	IDLE MIXTURE SCREW L	501268501
501268901	MAIN MIXTURE SCREW H	501268901
501269001	MIXTURE SCREW SPRING	501269001
501427101	CHOKE SHAFT	501427101
501485201	PIN RETAINING SCREW	501485201
501691101	THROTTLE FLAP	501691101
501821701	WASHER	501821701
501821801	THROTTLE SH."E"RING	501821801
502012201	CHOKE SHUTTER	502012201
503280407	CARBURETTOR	503280407
503419201	IDLE SPEED SCR. RET.	503419201
503486301	SCREW	503486301
503533201	THROTTLE SHAFT	503533201
503533601	DIAPHRAGM	503533601
503533701	CHOKE SHAFT	503533701
503533901	TUBE CONNECTOR	503533901
503578701	IDLE SPEED SCREW	503578701
503604301	NOZZLE	503604301
503652701	SCREW SHUTTER	503652701
505316605	THROTTLE SH. SPRING	505316605
