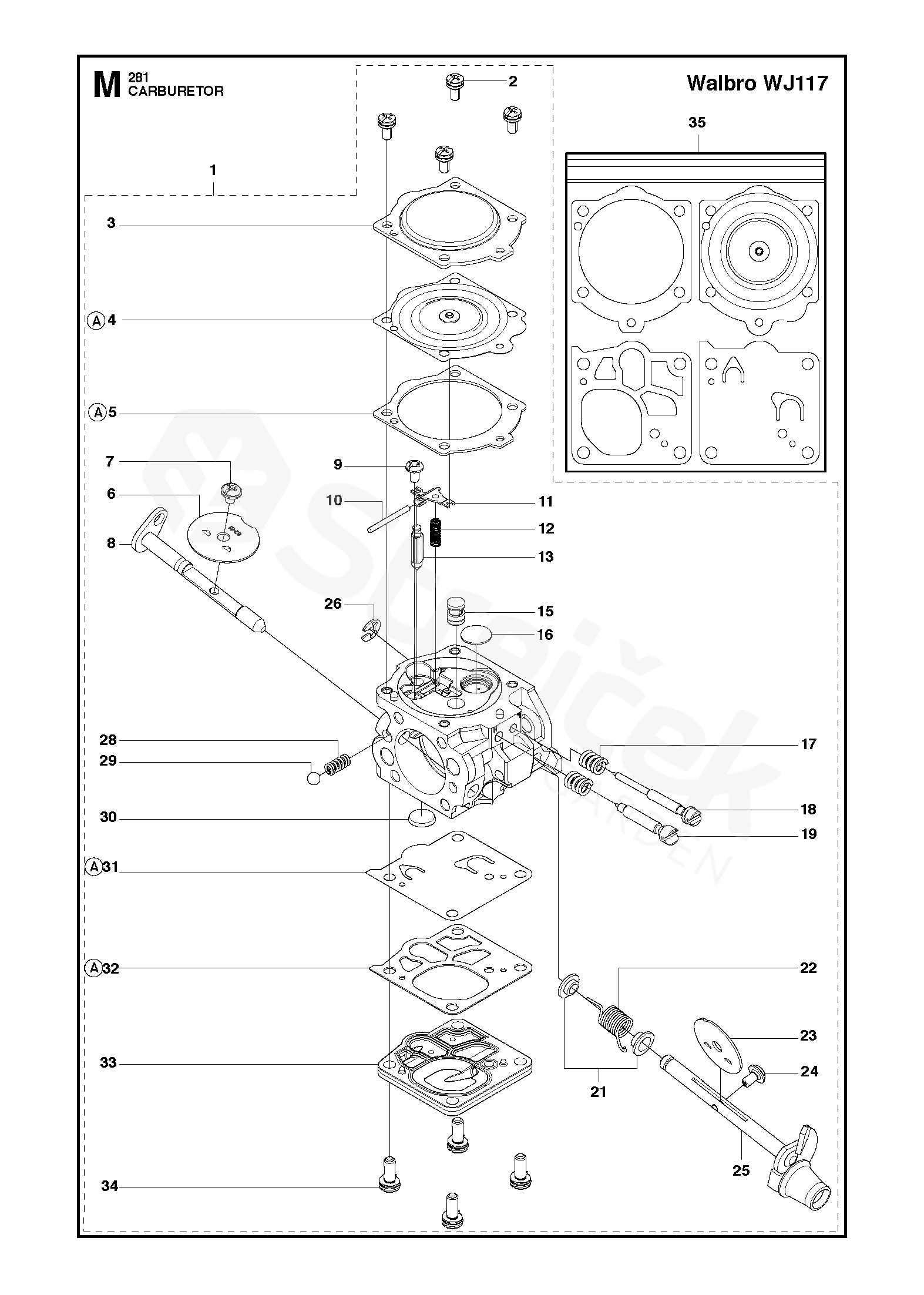

Spare parts - Partlist - 281 XP 281 XP, 2016-07 - CARBURETOR

Everything for your machines

281 XP 281 XP, 2016-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 281 XP, 2016-07

1	CARBURETTOR Walbro WJ 117 Walbro WJ 117	501355301
2	SCREW	503584601
3	COVER	505316702
4	DIAPHRAGM ASSY	503635801
5	GASKET	501467501
6	VALVE-CHOKE	505316707
7	SCREW	544111501
8	CHOKE SHAFT	574871101
9	SCREW	505316717
10	PIN	505316731
11	LEVER	505316734
12	SPRING	574871301
13	NEEDLE VALVE	503563401
15	NOZZLE ASSY	574871201
16	PLUG	503574101
17	SPRING	504210050
18	NEEDLE L L	574871601
19	NEEDLE HIGH SPEED H	503483601
21	BUSHING	502103101
22	SPRING	574871501
23	VALVE-THROTTLE	503116801
24	SCREW	544111501
25	THROTTLE SHAFT	574871001
26	KROUŽEK	505316736
28	SPRING	503117701
29	BALL	503117101
30	SCREEN	501666101
31	DIAPHRAGM PUMP	544897201
32	GASKET	503117201
33	COVER	503595801
34	SCREW	503117501
35	GASKET KIT Set of Gaskets	502529201
