Spare parts > Mountfield > Lawn Tractor > 1530 M 1530 M (2015) > Chassis
Back to

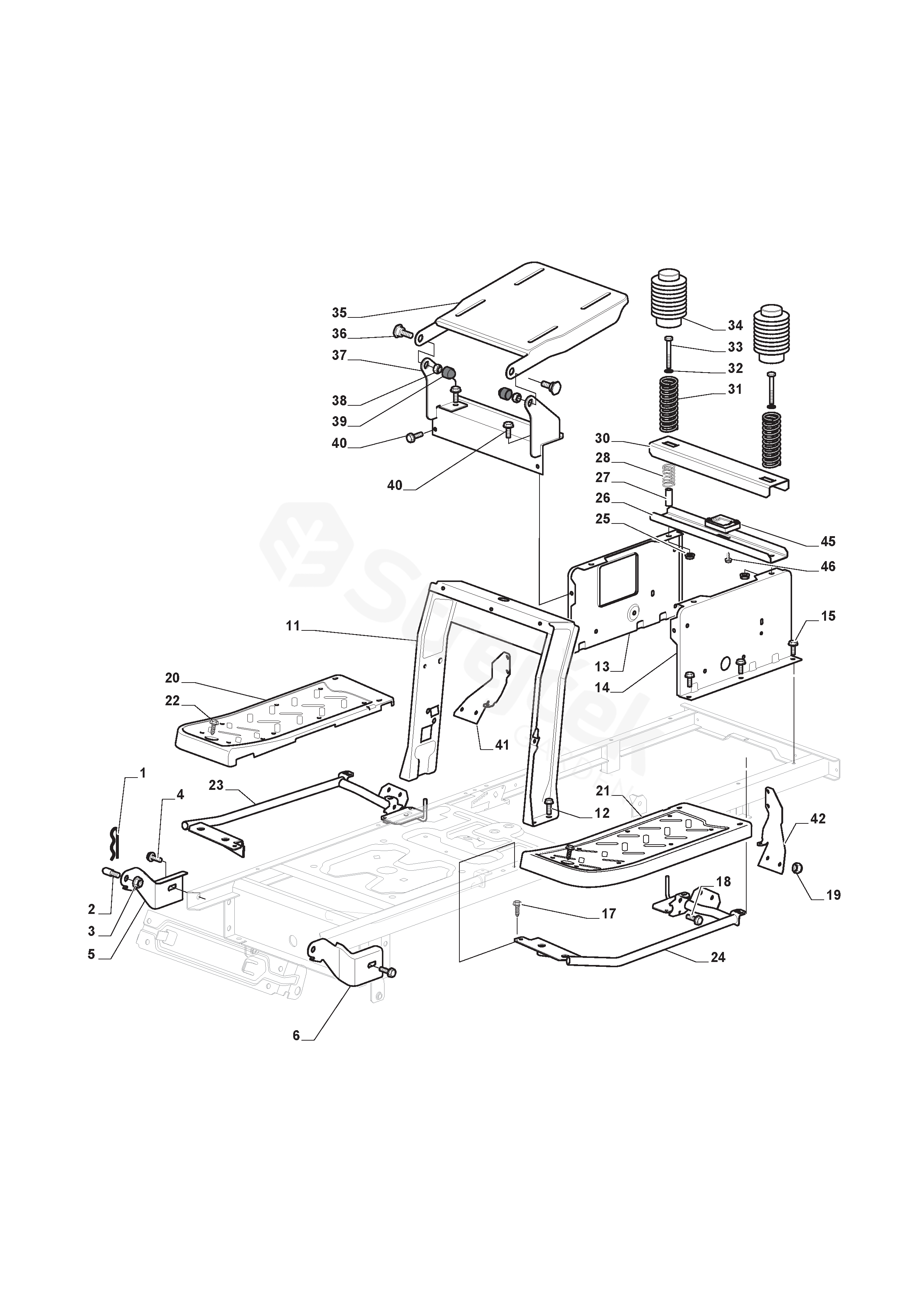

Chassis
1530 M 1530 M (2015)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 1530 M (2015)
1 Cotter Pin 124487998/0
2 Pin 125510079/0
3 Nut 112155000/0
4 Screw 112735599/0
5 Right Plate 325547225/0
6 Left Plate 325547227/0
11 Steering Column Support 382785169/1
13 Right Seat Support 325785331/1
14 Left Seat Support 325785333/1
20 Right Footboard 325500041/1
21 Left Footboard 325500043/1
23 Footboard Support 382785223/0
24 Footboard Support 382785221/0
25 Nut 112293201/0
26 Seat Support 325820109/1
27 Spacer 125160077/0
28 Spring 125430263/0
30 Support 325820111/0
31 Spring 125430264/0
32 Washer 112521350/0
33 Screw 112691400/0
34 Hood 325122002/0
35 Plate 382547061/0
36 Pin 122524970/3
37 Seat Support 382820151/0
38 Nut 112155010/0
39 Cap 118203854/0
40 Screw 125943009/0
41 Support 325650155/2
42 Support 325650157/0
45 Support 325785379/0
46 Screw 112728686/0
