1236M 1236M (2005)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 1236M (2005)

11/13 Mower deck lift

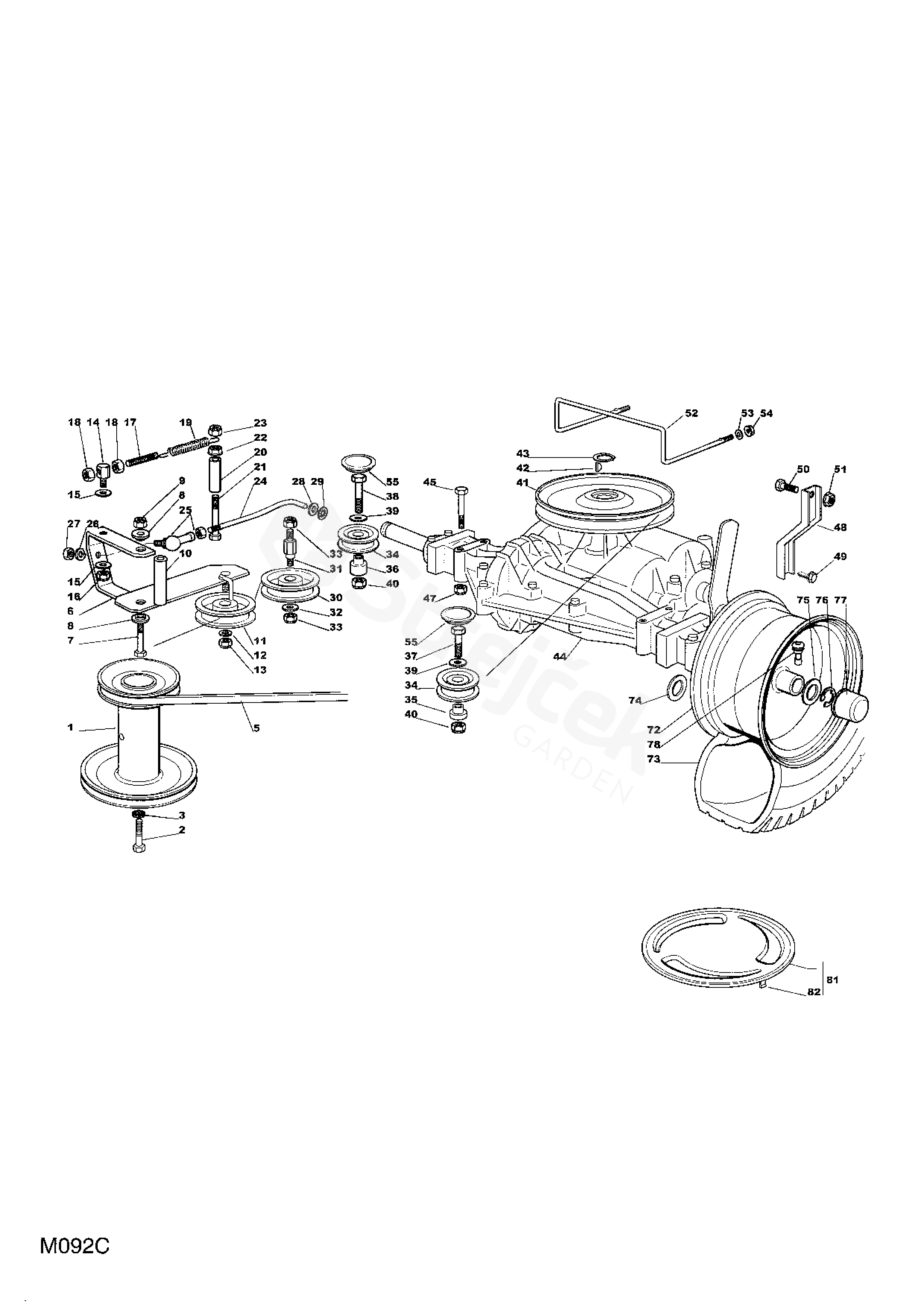

13/13 Transmission

1	Engine Belt Pulley	1136-0286-01
2	Screw	9987-5351-12
3	Washer	9683-0045-02
5	V-Belt	1136-0433-01
6	Tension Arm	1136-0489-01
7	Screw	9997-0630-12
8	Bushing	1136-0123-01
9	Nut	9747-0831-02
10	Spacer	1136-0166-01
11	Idler pulley	1136-0289-01
12	Washer	9699-0056-02
13	Nut	9747-0831-02
14	Pivot Bolt	1136-0235-01
15	Washer	1136-0309-01
16	Nut	9747-0831-02
17	Tie Rod	1136-0348-01
18	Nut	9799-0831-02
19	Spring	1136-0208-01
20	Spacer	1136-0162-01
21	Screw	9997-0880-16
22	Nut	9739-0831-22
23	Nut	9747-0831-02
24	Tie Rod	1136-0346-01
25	Ball Joint	1136-0093-01
26	Washer	9683-0030-02
27	Nut	9799-0831-02
28	Washer	9699-0090-02
29	Locking washer	9675-0012-02
30	Belt Roller	1136-0290-01
31	Stud Bolt	1136-0234-01
32	Washer	9699-0056-02
33	Nut	9747-0831-02
34	Belt Roller	1136-0915-01
35	Spacer	1136-0167-01
36	Spacer	1136-0164-01
37	Screw	9997-0835-12
38	Screw	9997-0845-12
39	Washer	9699-0056-02
40	Nut	9747-0831-02
41	Belt Pulley	1136-0520-01
42	Key	9600-0050-00
43	Circlip	9650-0016-04
44	Transaxle (Mst 205-535) Peerless MST 205-535	1136-0050-01
45	Screw	9997-0860-16
47	Nut	9739-0831-22
48	Stay	1136-0325-01
49	Screw	1136-0017-01
50	Screw	9997-0816-16
51	Nut	9739-0831-22
52	Belt Guide	1136-0181-01
53	Washer	9699-0035-02
54	Nut	9739-0631-22
55	Cover	1136-0868-01
72	Rim-rear	1136-0455-01
73	Tire (Turf Saver)	1136-0270-01
74	Washer	9699-0119-02
75	Washer	1136-0305-01
76	Circlip	9652-0015-04
77	Hub Cap	1136-0081-01
78	Valve Assy.	9545-0500-00
