Spare parts > Husqvarna > CHAIN SAWS > 288 XP 288 XP, 2016-07 > CARBURETOR
Back to

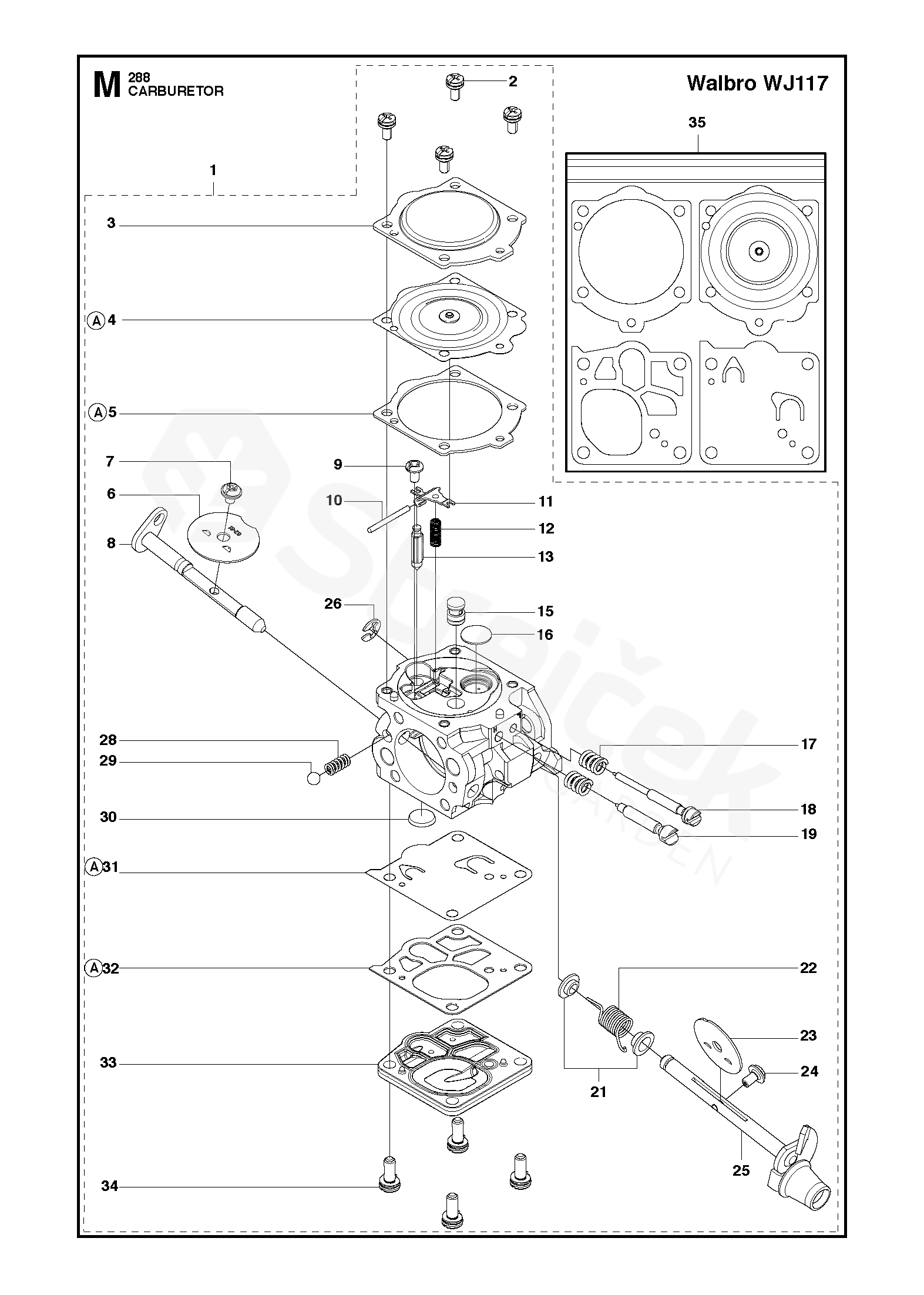

CARBURETOR
288 XP 288 XP, 2016-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 288 XP, 2016-07
1 CARBURETTOR Walbro WJ 117
Walbro WJ 117 		501355301
2 SCREW 503584601
3 COVER 505316702
4 DIAPHRAGM ASSY 503635801
5 GASKET 501467501
6 VALVE-CHOKE 505316707
7 SCREW 544111501
8 CHOKE SHAFT 574871101
9 SCREW 505316717
10 PIN 505316731
11 LEVER 505316734
12 SPRING 574871301
13 NEEDLE VALVE 503563401
15 NOZZLE ASSY 574871201
16 PLUG 503574101
17 SPRING 504210050
18 NEEDLE L
L 		574871601
19 NEEDLE HIGH SPEED
H 		503483601
21 BUSHING 502103101
22 SPRING 574871501
23 VALVE-THROTTLE 503116801
24 SCREW 544111501
25 THROTTLE SHAFT 574871001
26 KROUŽEK 505316736
28 SPRING 503117701
29 BALL 503117101
30 SCREEN 501666101
31 DIAPHRAGM PUMP 544897201
32 GASKET 503117201
33 COVER 503595801
34 SCREW 503117501
35 GASKET KIT
Set of Gaskets 		502529201
